Fotocélula para farola de 12-24 V JL-205-12D-24D

Categoría Fotocélula de bloqueo giratorio

Fotocélula para farola de 12-24 V JL-205-12D-24D

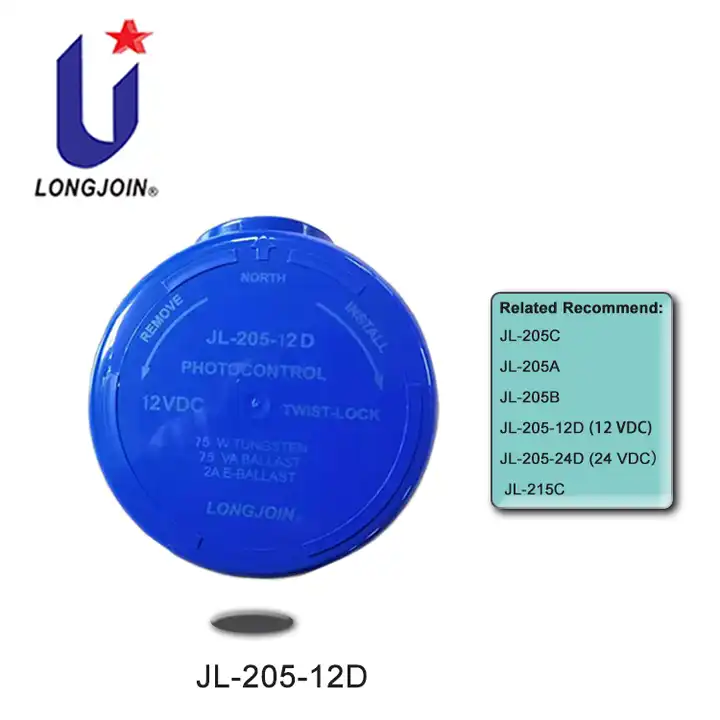

Street Light Photocell 12-24V JL-205-12D-24D - Imagen 2

Detalles del producto:

Fotocélula para farola de 12-24 V JL-205-12D-24D

Descripción del Producto

Fotocélula para farola de 12-24 V JL-205-12D-24D

Norma ANSI C136.10-1996

1. Tipo de sensor incorporado opcional.

2. Fallo opcional en

3. Retardo de tiempo de apagado, o Retardo de tiempo de encendido.

4. Carcasa resistente al calor y a los golpes.

5. IP54, IP65, IP66, IP67 opcional.

Modelo

JL-205A

JL-205B

JL-205C

JL-205-12D

JL-205-24D

JL-207-48D

Voltaje nominal

110-120 VCA

220-240 VCA

110-277 VCA

12 VCC

24 VCC

48DC

Rango de voltaje aplicable

100-140 VCA

200-260 VCA

105-305 VCA

–

–

–

Frecuencia nominal

50/60 Hz

Dimensiones generales (mm)

84(diámetro)*66

Carga nominal

1000 W de tungsteno, balastro de 1800 W

Consumo de energía

1,5 VA [estándar]/3 VA [HP]

Nivel de encendido y apagado

10-20Lx Encendido
30-60Lx Apagado

Retardo de tiempo

3-20 años

Clasificación IP

IP54, IP65, IP67 opcional

Color de la carcasa

De acuerdo a sus necesidades de diseño del estilo del producto.

Característica de la vivienda

Doble cubierta de disipación de calor personalizada opcional

Certificado

CE, RoHS, UL, RoHS y otros certificados validados

Diagrama de cableado

Detalle del producto

Principio de funcionamiento del fotocontrol:

Hay un modo de trabajo de interruptor de encendido y apagado esencial incorporado mediante valor de resistencia LDR/fototransistor/fotodiodo y el sensor de luz controlará perfectamente el encendido al anochecer y el apagado al amanecer.
