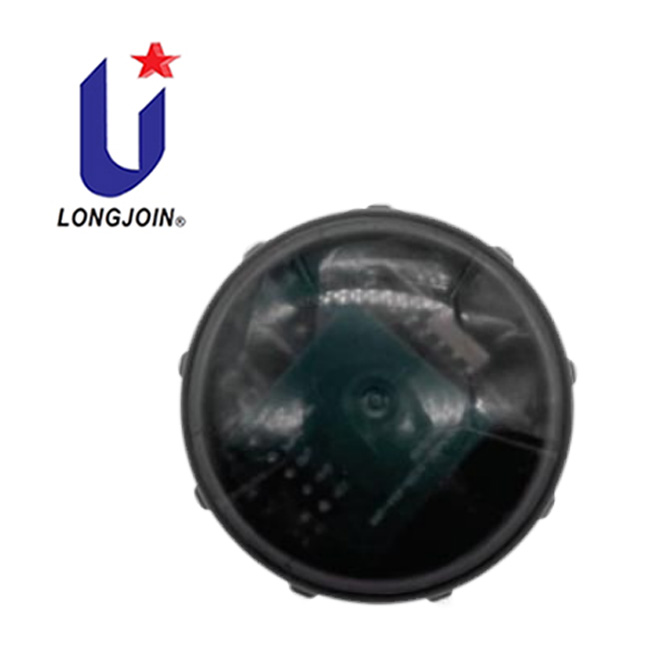

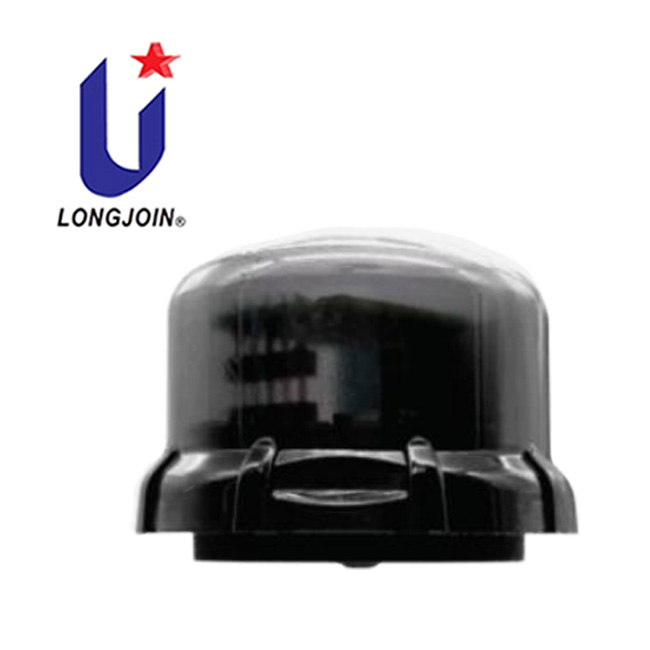

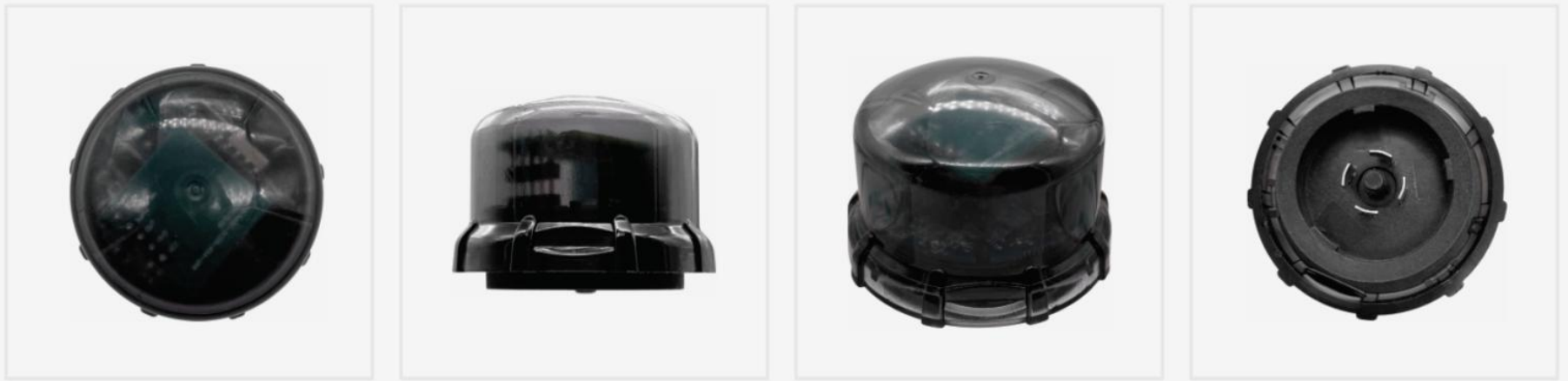

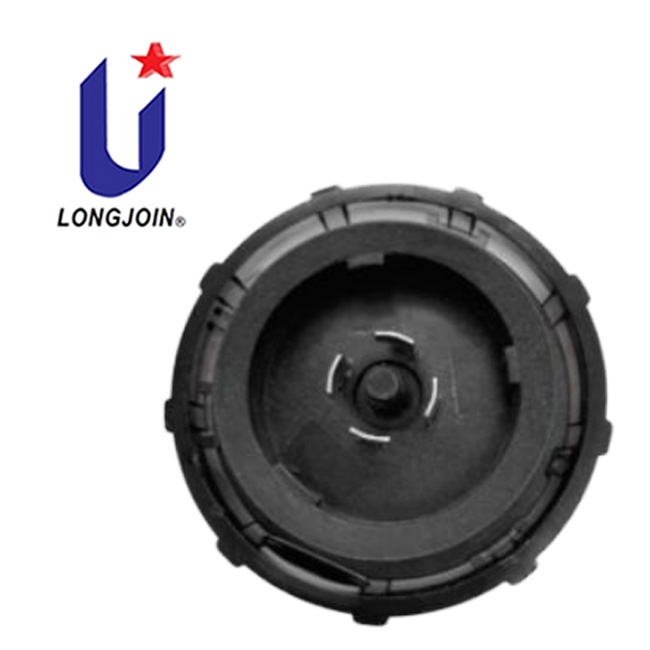

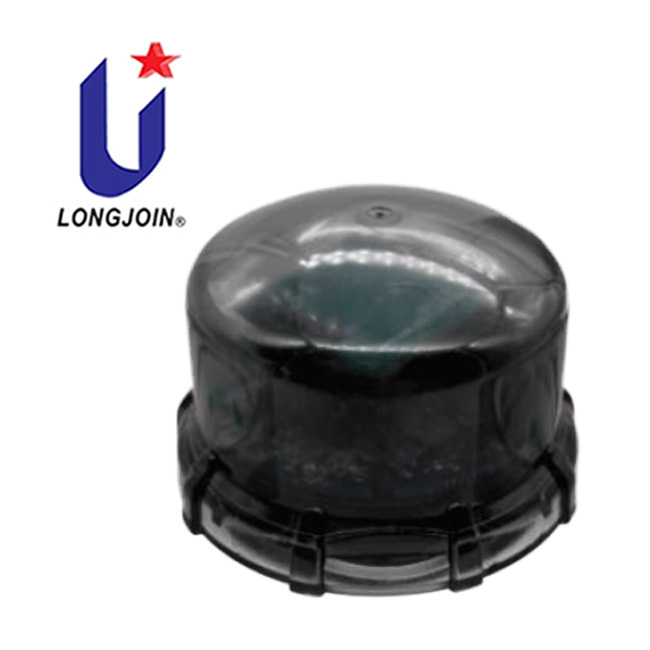

Controlador Zhaga Book-18 JL-712B2 con red de comunicación Bluetooth Mesh, sensor de luz de atenuación de 0 a 10 V y señal de microondas.

Resumen del producto

JL-712B2 is based on ZHAGA BOOK18 interface standard development of intelligent lock type light controller, using light sensing + microwave mobile combination sensor, can output 0~10V dimming signal, at the same time equipped with Bluetooth mesh communication network, can be controlled and configured through APP. The lamp controller is suitable for roads, lawns, courtyards, parks, parking lots, industrial mines and other lighting scenes. The special envoy is the UFO lamp with zhaga socket.

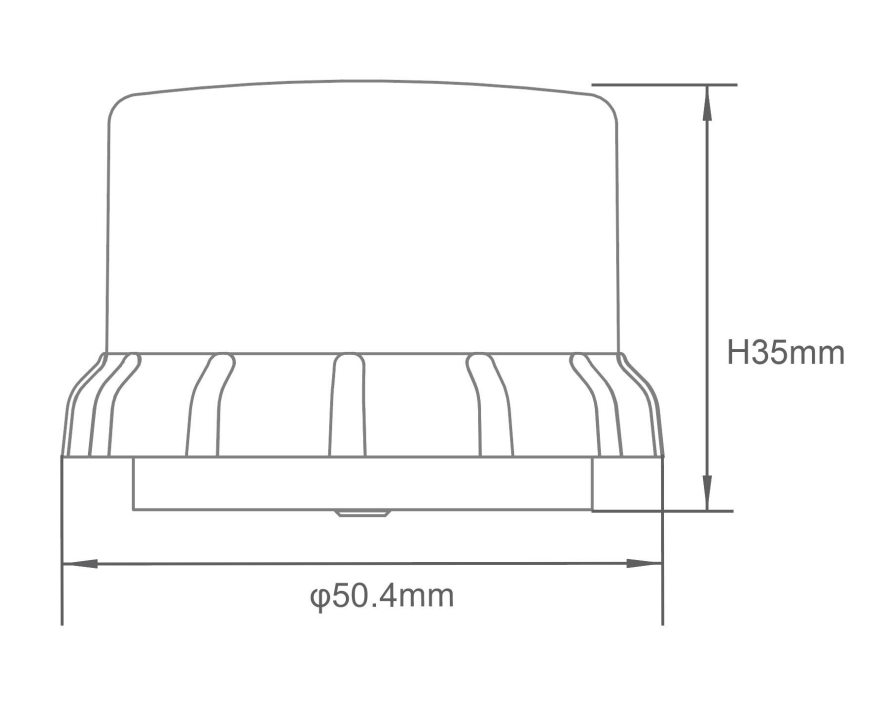

Tabla de tallas de productos

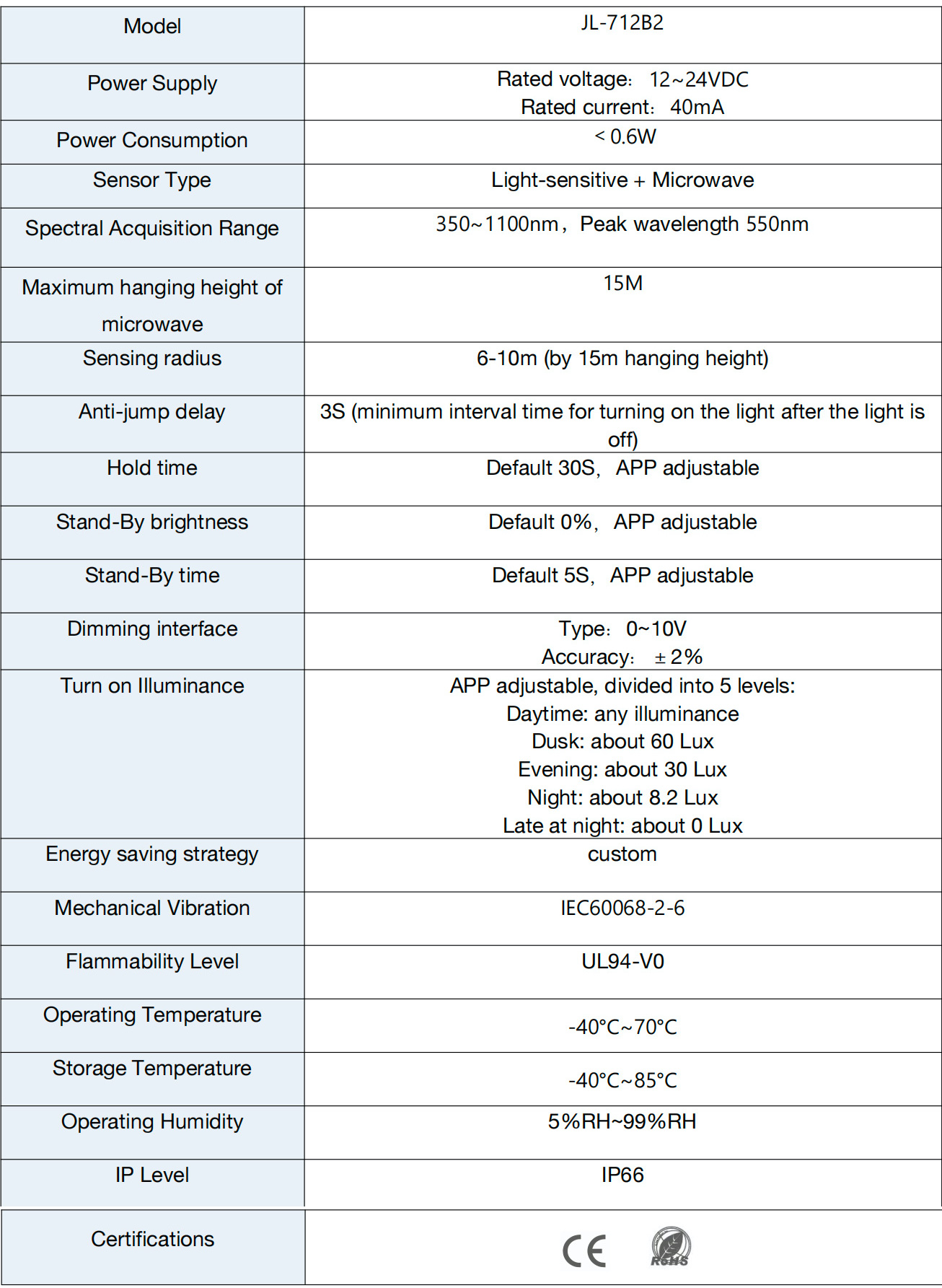

Parámetros

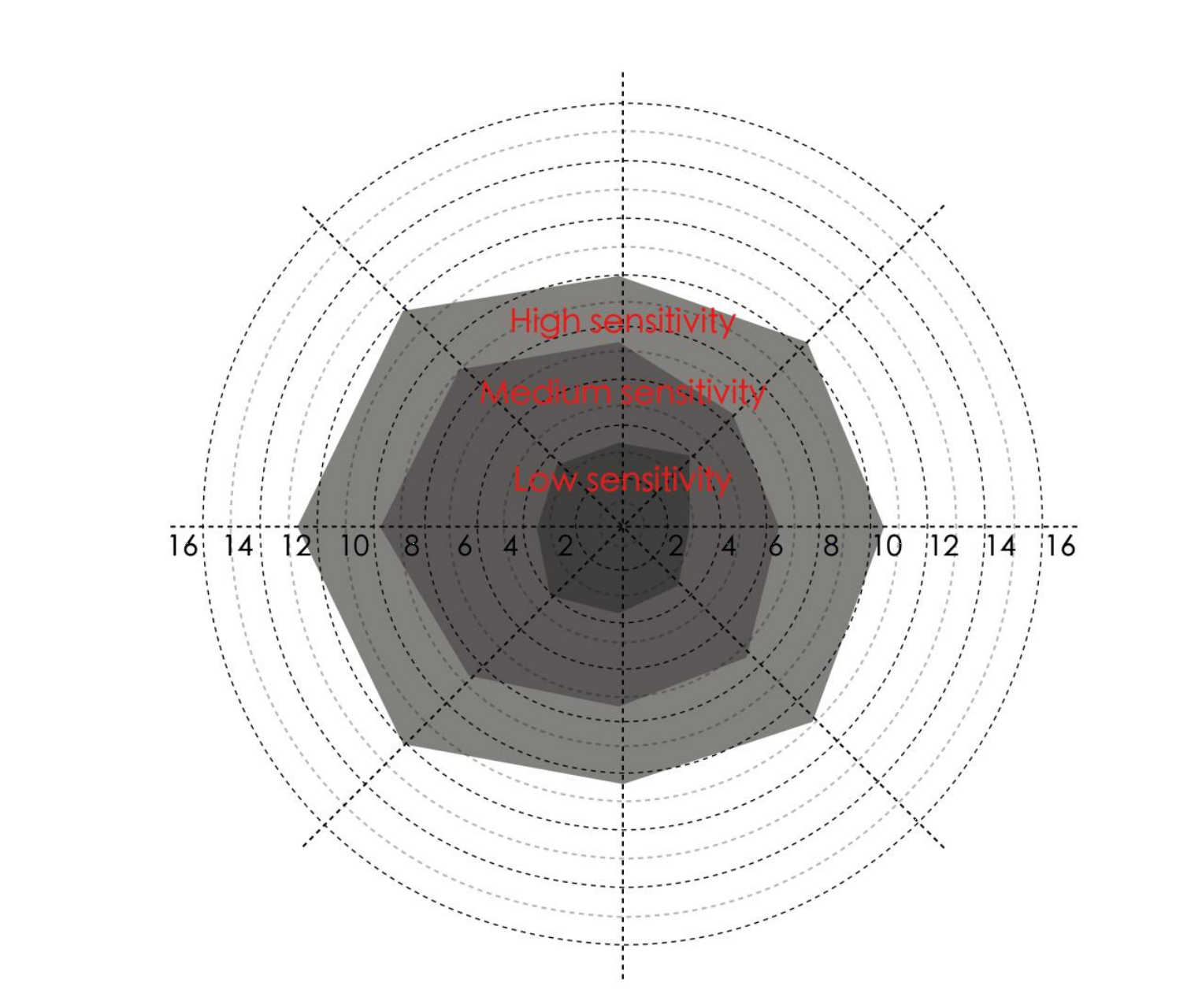

Schematic diagram of microwave induction – indoor installation at a height of 15 meters

Características

• 12 to 24 VDC power supply, low power consumption
• Estándar de interfaz ZHAGA BOOK18
• Automatic dynamic microwave frequency adjustment to avoid mutual interference in dense installation
• Φ50*36mm size, suitable for installation in most lamps
• 0~10V dimming interface
• Light sensor + microwave sensor, on-demand lighting, more power saving
• 15m hanging height
• BLE MESH
• Support third-party voice control, such as Alexa, Google Assistant, SmartThings, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong, etc.4
• IP66

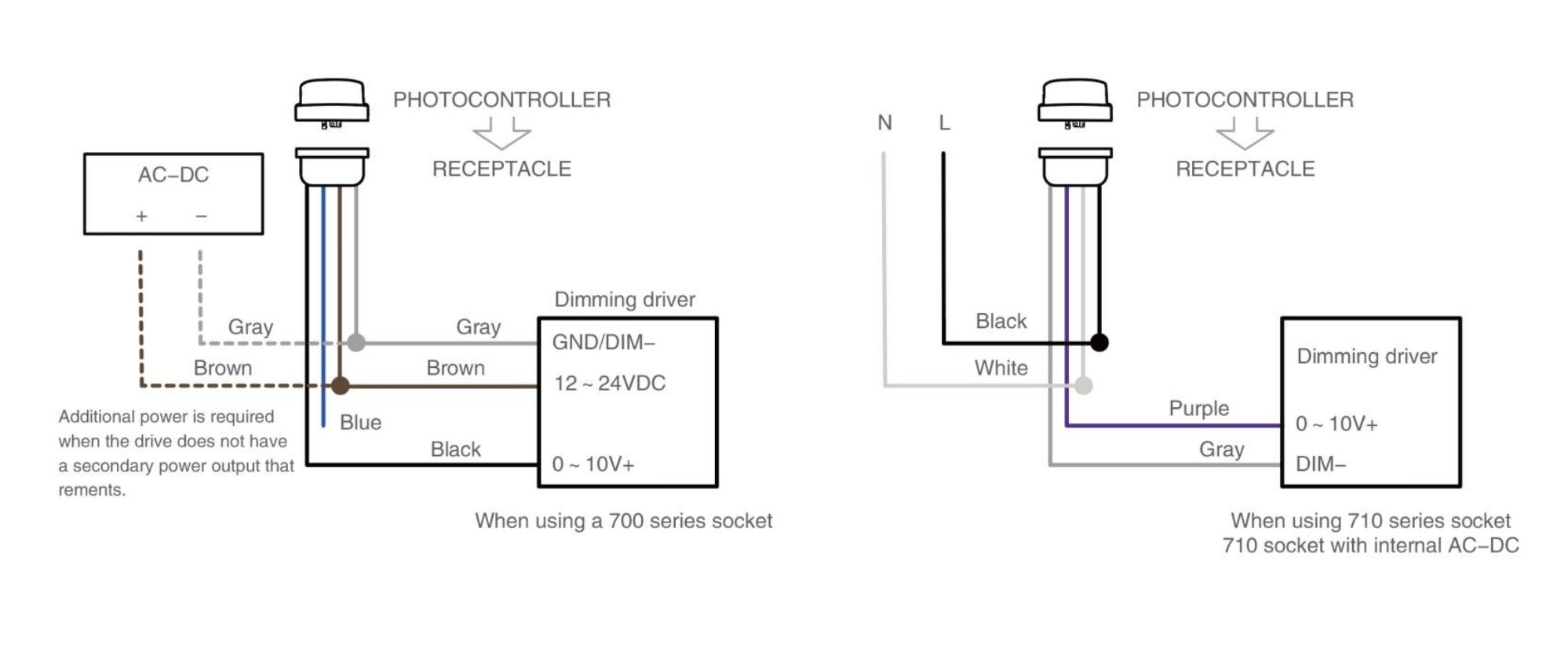

Diagrama de cableado

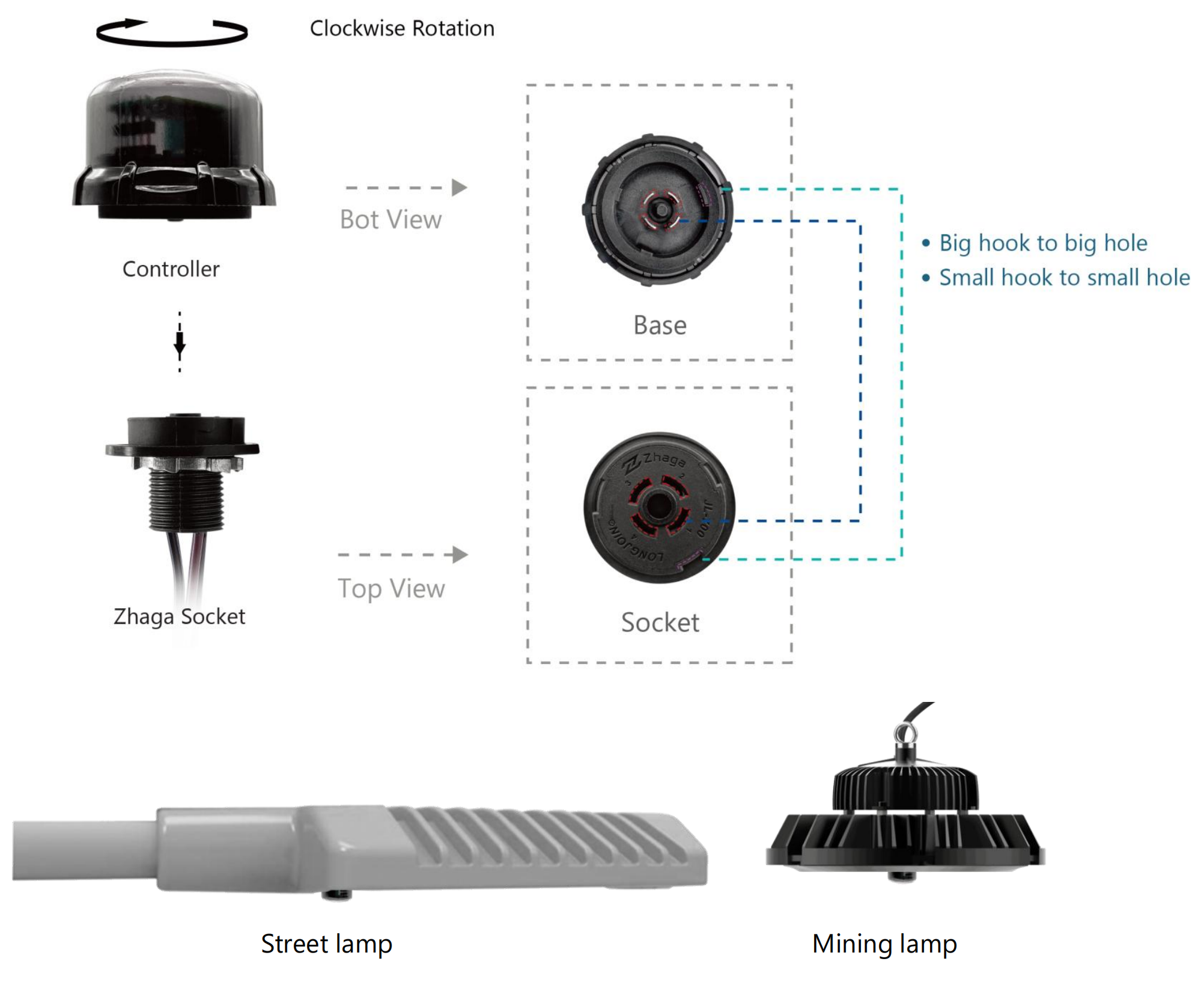

Instalación

La interfaz del producto en sí tiene un diseño infalible, la instalación solo necesita apretar el controlador directamente a la base giratoria, como se muestra en la Figura en el sentido de las agujas del reloj después de la inserción.
