For outdoor lighting projects, maintaining a balance between cost and performance is tough. Long-Join Electronics answers this challenge with the UM-205C fotocontrol, a newly developed solution built for cost-sensitive environments.
Designed to deliver dependable performance, it offers:
- Solid electrical capacity
- A reliable service life; and
- A clear path toward Normas ANSI C136.10 certification
This article explores its lifetime, load capacity, and the latest certification updates to help planners make informed decisions.
What Is the UM-205C Receptáculo de fotocontrol and Why Was It Developed?
The UM-205C is a twist-lock analog electronic fotosensor designed by Long-Join Electronics. It is part of the “UM Series,” which is positioned as a more affordable offering in Long-Join’s product portfolio.
Long-Join developed UM-205C to meet the needs of cost-sensitive outdoor lighting projects, where buyers demand lower cost without completely sacrificing reliability.
UM-205C is intended to fit between lower-end, low-feature controllers and premium, fully certified models (like JL-series). It offers many core functional capabilities but at a lower entry cost, making it an attractive option for non-critical but still demanding outdoor lighting environments.

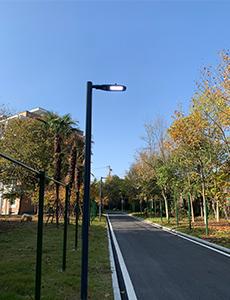

Because of its design and rating (120–277 VAC, with tungsten and ballast load support), UM-205C is highly relevant for medium-scale installations such as:
- Park lighting and garden walkways
- Residential estates
- Courtyards and small pedestrian zones
What Is the Current ANSI C136.10 Certification Status of UM-205C?
The ANSI C136.10 standard governs locking-type photocontrol devices and mating receptacles—defining physical, electrical, and interchangeability testing protocols widely in North American lighting projects.
Long-Join has formally submitted the UM-205C photocontrol for ANSI C136.10 certification. The expected certification timeline is within 3 months from submission. During this period, internal testing based on the JL-series methodology continues to ensure consistency and reliability.
The ANSI certification will cover several critical technical parameters, including:
- Mechanical dimensions and footprint (interchangeability)
- Electrical interface and terminal integrity
- Contact stability under cycling loads
- Control accuracy and dusk/dawn thresholds
- Dielectric withstand and insulation safety
While awaiting formal certification, Long-Join relies on its JL-series internal test protocols, which include rigorous cycle testing, dielectric strength validation, and environmental stress screening, to maintain product consistency.
For projects needing an already certified product today, the JL-205C sensor de fotocélula serves as an immediate alternative. The JL-205C model already meets ANSI C136.10 requirements—with certified compliance, stable performance, and suitability for use in North American tenders and regulated infrastructure contracts.

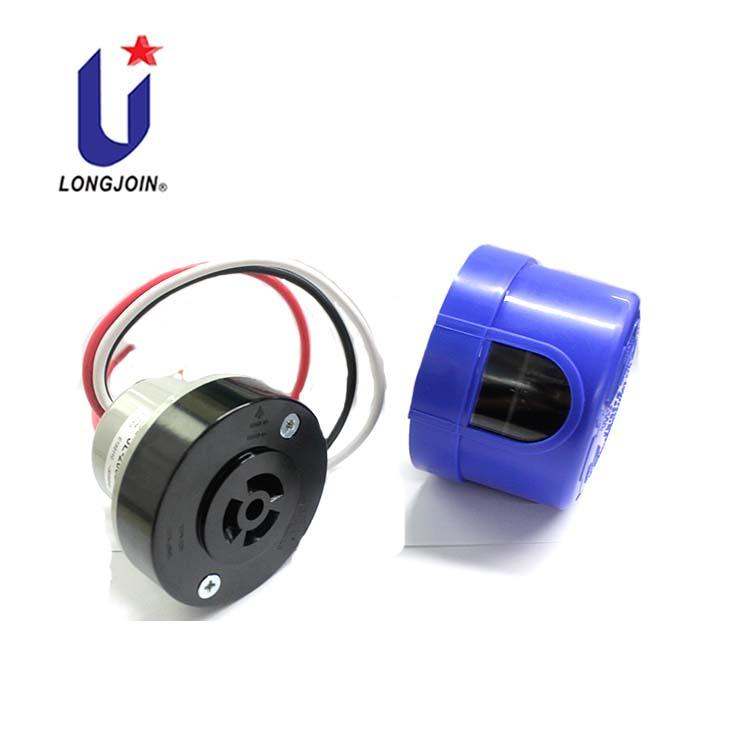

How Much Load Can UM-205C Handle in Real-World Applications?
El interruptor del sensor de fotocélula is rated for 120–277 VAC, 50/60 Hz operation. Its internal specs list these load capacities:
| Load Type | Recommended Capacity |
| Tungsten (resistive) | 500 W |
| Ballast (inductive) | 850 VA |
| e-Ballast (electronic) | 5 A (as per datasheet) |
For LED drivers, Long-Join recommends staying at or below 150 W for reliable switching and thermal stability (i.e., derate the load). This prevents undue stress on the control relay and extends service life.
In typical outdoor LED lighting systems, most luminaires fall well below 150 W. Thus, UM-205C control de iluminación is well-suited for these standard applications without overdesigning.
How Durable Is the UM-205C in Terms of Electrical Lifetime?
UM-205C is internally rated for ≥ 3,650 ON/OFF cycles. That benchmark reflects its expected performance in moderate-use settings over several years of dusk-to-dawn operation.
To provide context, the JL-205C model (which shares core design elements) has passed 20,000+ cycles under UL773 standard testing with LED loads. This demonstrates their durability in a high-stress lab environment.
In practical terms, for real-life installations:
- UM-205C should last many seasons without failure under normal cycling.
- Most real-world sites won’t approach thousands of rapid cycles per year, so its expected lifetime will tend to outstrip field demand.
- Occasional maintenance or replacement cycles are still manageable in non-critical settings.
While UM-205C endurance is not the same as that of its JL sibling, it is quite a reliable offering. For applications where continuous uptime is valued but ultra-long lifetimes aren’t mission-critical, it’s recommended.
What Safety and Dielectric Strength Features Does UM-205C Offer?
El interruptor de fotocélula de luz is specified to withstand 3,000 V at 1 mA for 1 second. This ensures solid insulation and transient protection. This dielectric withstand rating protects internal circuits from voltage surges and insulation breakdown.
In outdoor lighting, a strong dielectric barrier helps prevent:
- Leakage
- Insulation failure
- Flashovers under harsh weather
- Voltage spikes.
Even though UM-205C is cost-optimized, it maintains structural robustness through careful insulation design, quality materials, and internal component spacing to meet safety needs in real installations.
Here is a table for the global dielectric withstand standard comparison.
| Estándar | Test Voltage (V) | Duration (s) | Leakage Current Limit (mA) | Common Application |
| UL 773 | 3000 | 1 | 1.0 | América del norte |
| CEI 61347 | 2500 | 1 | 3.5 | Global |
| EN 61347 | 2750 | 1 | 3.5 | EU Region |
| GB 19510 | 3000 | 1 | 1.0 | Porcelana |
How Does UM-205C Compare with JL-205C for Different Project Needs?
| Parámetro | JL-205C | UM-205C |
| ANSI Certification | Already certified (C136.10) | Pending, expected within 3 months |
| Voltaje nominal | 110–277 VAC (some sources say 105–305 VAC) | 120–277 VAC (per design spec) |
| Load Capability | 1,000 W tungsten / 1,800 VA ballast / up to ~8 A e-ballast | Recommended ≤150 W LED (others per spec) |
| Electrical Lifetime | Lab tested for high cycle counts (10,000+ under LED load) | Rated ≥ 3,650 cycles (internal standard) |
| Dielectric Strength | 3,000 V / 1 mA / 1 s (common spec) | 3,000 V / 1 mA / 1 s |
| Pricing / Market Position | Mid- to high tier; premium/infrastructure use | Entry / cost-sensitive projects |
| Ideal Applications | Highways, city lighting, smart infrastructure | Parks, pathways, residential zones, and civil projects |
Which Photosensor Should You Choose for Your Project?
When Is UM-205C the Smart Choice?
Choose UM-205C when:
- Your project is medium-scale
- Budget-conscious
- Where certification isn’t a rigid requirement.
Its design offers reliable switching and functional performance even while ANSI validation is pending. In many civil landscaping or residential lighting applications, UM-205C can serve as a nearly drop-in alternative to JL-205C without imposing extra cost. It’s ideal when you value cost efficiency but still need dependable dusk-to-dawn control.
When Is JL-205C the Preferred Option?
For large-scale, high-reliability projects, JL-205C shines. Its full ANSI C136.10 certification already in place makes it eligible for public tenders and international contracts. The JL-205C’s proven long service life and higher load tolerance cater to demanding installations where downtime is costly and specifications are strict.
Palabras finales
Both UM-205C and JL-205C serve distinct project needs. The key is matching performance and certification levels to your application. Choose wisely to ensure reliability and compliance. For assured quality and authentic LongJoin JL-205C units, Chi-Swear is a dependable sourcing partner. Their supply reliability makes procurement simple and secure.
