JL-260D

-Flagship Slim Dimming Receptacle

Resumo do produto

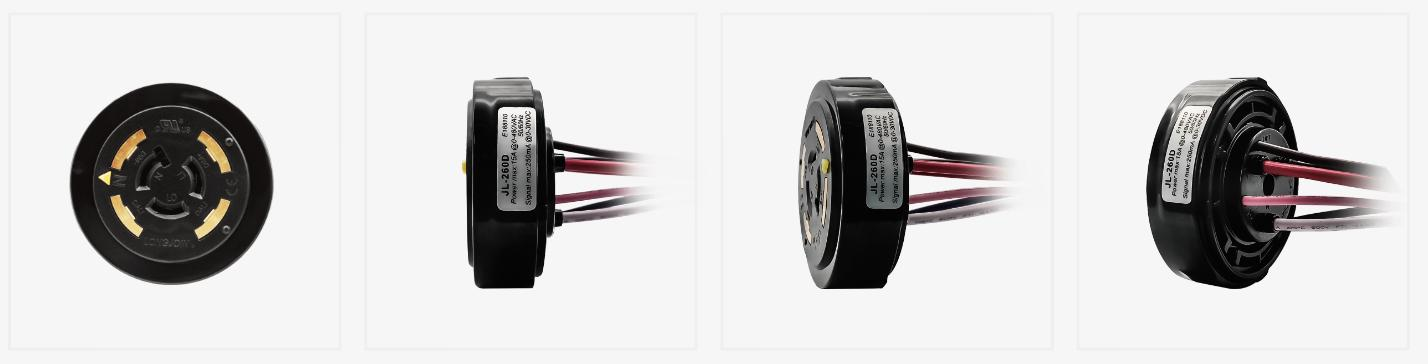

This JL-260D series photocontrol receptacle is designed for the lanterns those intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. it conforms newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.

It offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 2 or 4 wiring leads at rear side for signal connection.

Especially, it is featured with waterproof self-rotation and 360° limited, while a super compressed height size is offered.

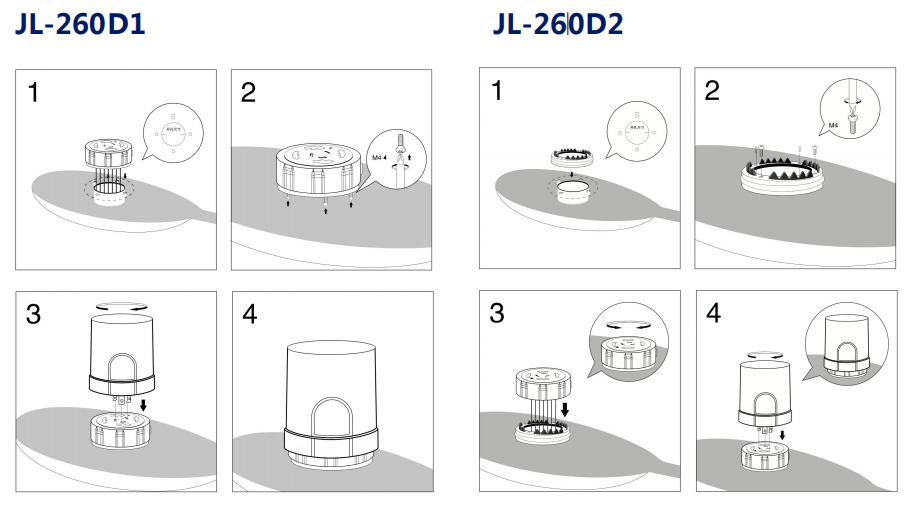

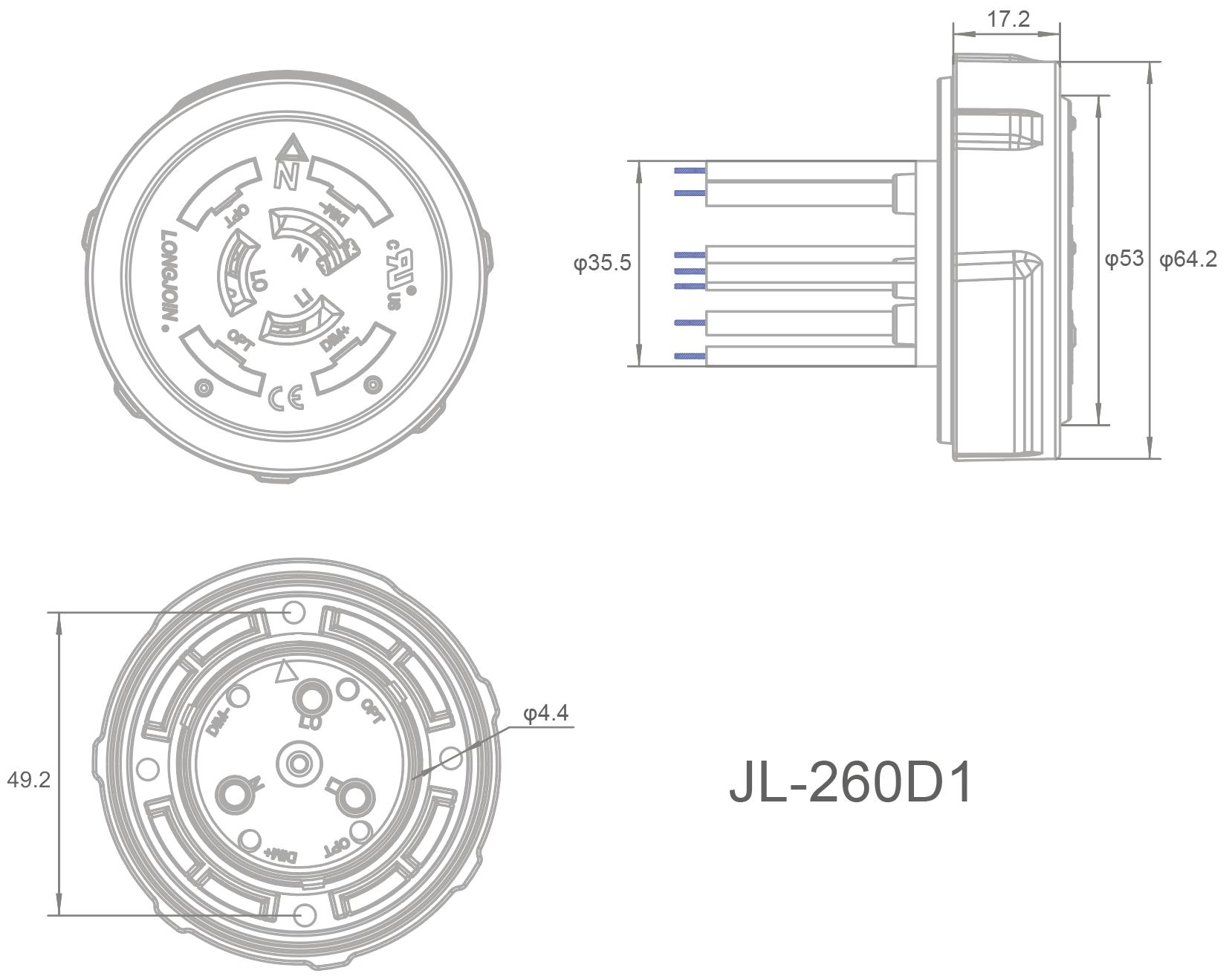

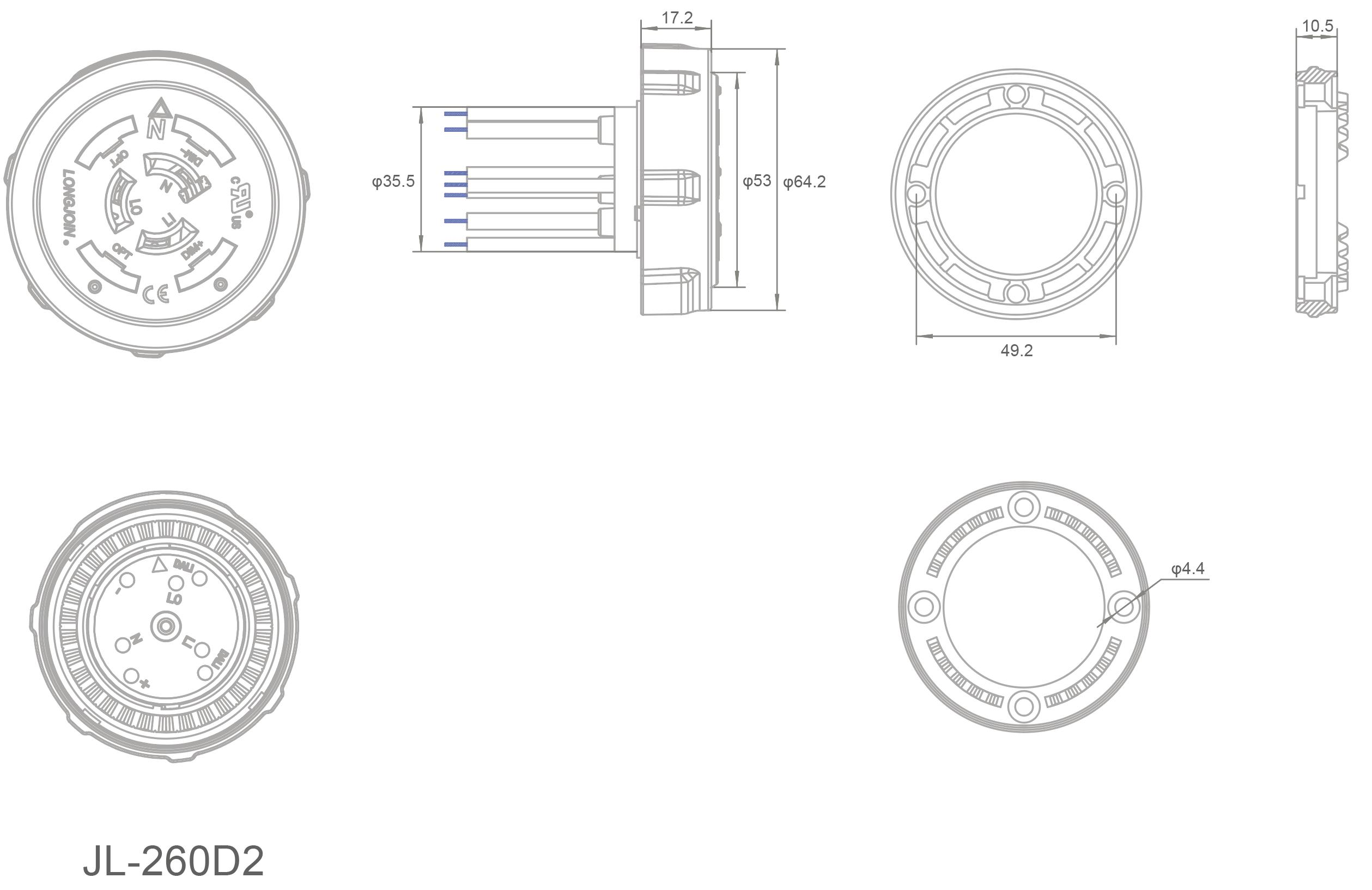

D1 type is an integral structure, with external thread installation.Type D2 is a split structure for internal thread installation.

Características

• Body made from polycarbonate3
• • Contatos feitos de bronze fosforoso
•  Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 522
•  High light North pointer

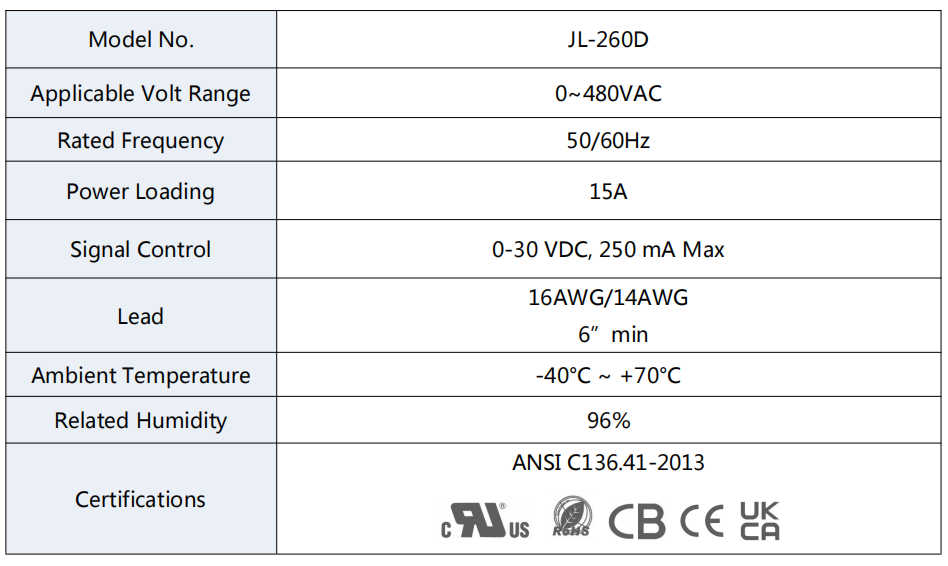

Especificações

Informações para encomenda

JL-260D 1 16 12 -7P
