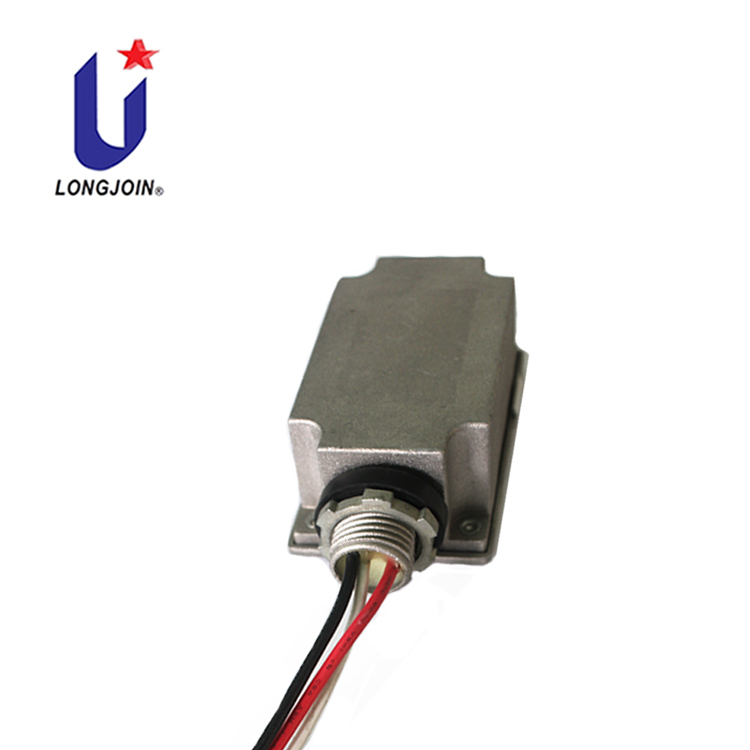

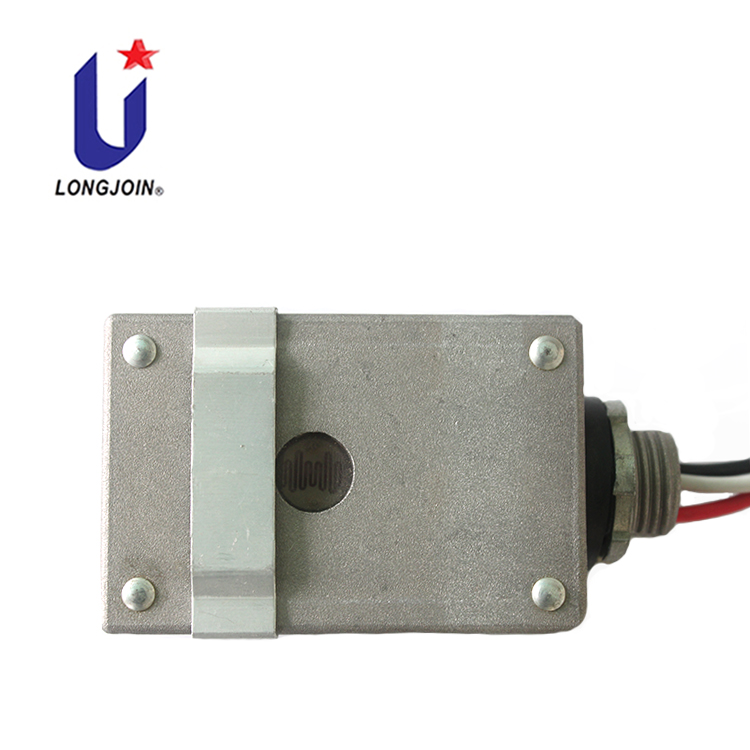

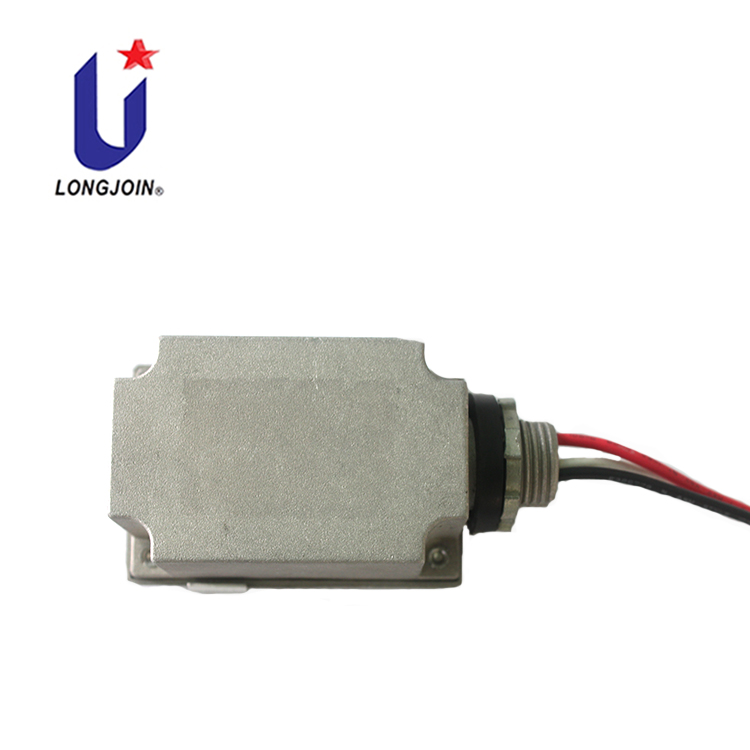

Fotocontrol térmico con cableado integrado en caja de aluminio fundido a presión JL-116 para el control de la iluminación de pasillos y entradas.
Profesional Fotocontrol fábrica Aquí ahora.
OEM y ODM Servicio integral Personalizado, Le enviaremos una muestra para confirmar la calidad.
Resumen del producto
The photocontrol JL-116 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.It is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time.A temperature compensator system provides consistent performance regardless of the ambient temperature.It is convenient for direction adjustment after installation once an additional swivel is applied.
Características
Time Delay 30~120s
Ambient Temperature： -40℃ ~ +70℃
Additional Swivel Available
Screw Thread （NPT 1/2″）& Zinc Alloy Nut
Aluminum Die-cast Enclosure
Heavy Duty up to 2000VA
Descripción del Producto
Dusk to Dawn Light Sensor Parameter
N.º de modelo
JL-116A（*V）
JL-116B（*V）
JL-116C（*V）
JL-116D（*V）
Voltaje nominal
120VAC
220~240 VCA
208~277VAC
277VAC
Frecuencia nominal
50/60 Hz
Carga nominal
Balasto de tungsteno de 2000 W y 2000 VA
Consumo de energía
1.5W Max
On/Off Level
10-20 Lx On 30-60 Lx Off
Ambient Temp.
-40℃ to +70℃
Humedad relacionada
96%
Body Meas
50(wide)x37(depth)x91(height)mm
Swivel Meas
85(L)x36(Dia.Max)mm;200°
Weight Approx.
60 grs
Time of warranty
Each one uses up to 5000 times,3 Years Warranty!
Instalación
Disconnect power, place screw thread of the SWITCH in knockout hole and fasten with
rubber gasket and Zinc alloy lock-nut.

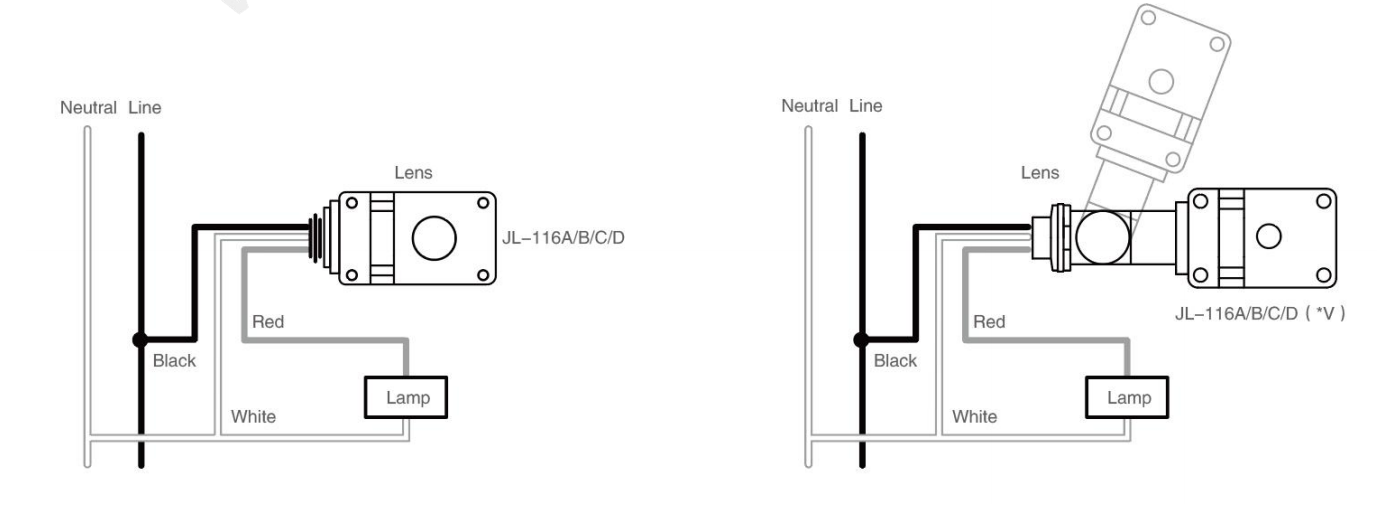

Cableado según el diagrama:
Deslice la tira de sombreado para tener los niveles de encendido/apagado preferidos, si es necesario.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause
Spanish
English
Russian
Arabic
Italian
Profesional Fotocontrol fábrica Aquí ahora.
OEM y ODM Servicio integral Personalizado, Le enviaremos una muestra para confirmar la calidad.
Resumen del producto
The photocontrol JL-116 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.It is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time.A temperature compensator system provides consistent performance regardless of the ambient temperature.It is convenient for direction adjustment after installation once an additional swivel is applied.
Características
Descripción del Producto
Dusk to Dawn Light Sensor Parameter
30-60 Lx Off
Instalación
Disconnect power, place screw thread of the SWITCH in knockout hole and fasten with
rubber gasket and Zinc alloy lock-nut.
Cableado según el diagrama:
Deslice la tira de sombreado para tener los niveles de encendido/apagado preferidos, si es necesario.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause
the unit to cycle on and off at night.
