Aluminum Die-cast Enclosure Wire-in Thermal Photocontrol JL-116 for Controlling the Passage Lighting and Doorway Lighting

Name: Aluminum Die-cast Enclosure Wire-in Thermal Photocontrol JL-116 for Controlling the Passage Lighting and Doorway Lighting
Brand: Long-Join
SKU: JL-116

Category Wire-in Photocells

Aluminum Die-cast Enclosure Wire-in Thermal Photocontrol JL-116 for Controlling the Passage Lighting and Doorway Lighting - Image 2

Aluminum Die-cast Enclosure Wire-in Thermal Photocontrol JL-116 for Controlling the Passage Lighting and Doorway Lighting - Image 3

Aluminum Die-cast Enclosure Wire-in Thermal Photocontrol JL-116 for Controlling the Passage Lighting and Doorway Lighting - Image 4

Aluminum Die-cast Enclosure Wire-in Thermal Photocontrol JL-116 for Controlling the Passage Lighting and Doorway Lighting - Image 5

Product Details:

Aluminum Die-cast Enclosure Wire-in Thermal Photocontrol JL-116 for Controlling the Passage Lighting and Doorway Lighting

Professional Photocontrol factory here now.

OEM and ODM One-stop service Customized, happy send sample to you confirm quality.

Product Summary

The photocontrol JL-116 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.It is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time.A temperature compensator system provides consistent performance regardless of the ambient temperature.It is convenient for direction adjustment after installation once an additional swivel is applied.

Features

Time Delay 30~120s
Ambient Temperature： -40℃ ~ +70℃
Additional Swivel Available

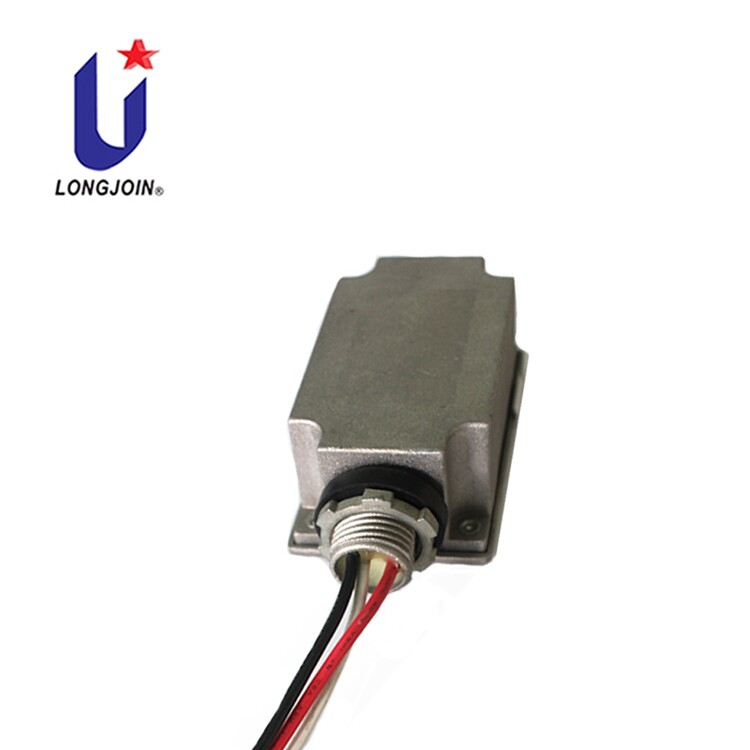

Screw Thread （NPT 1/2″）& Zinc Alloy Nut

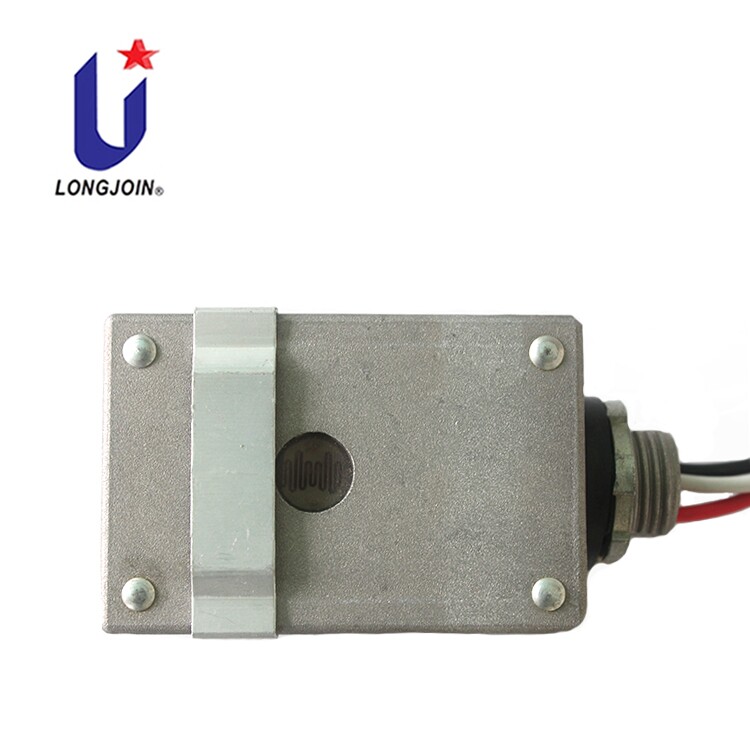

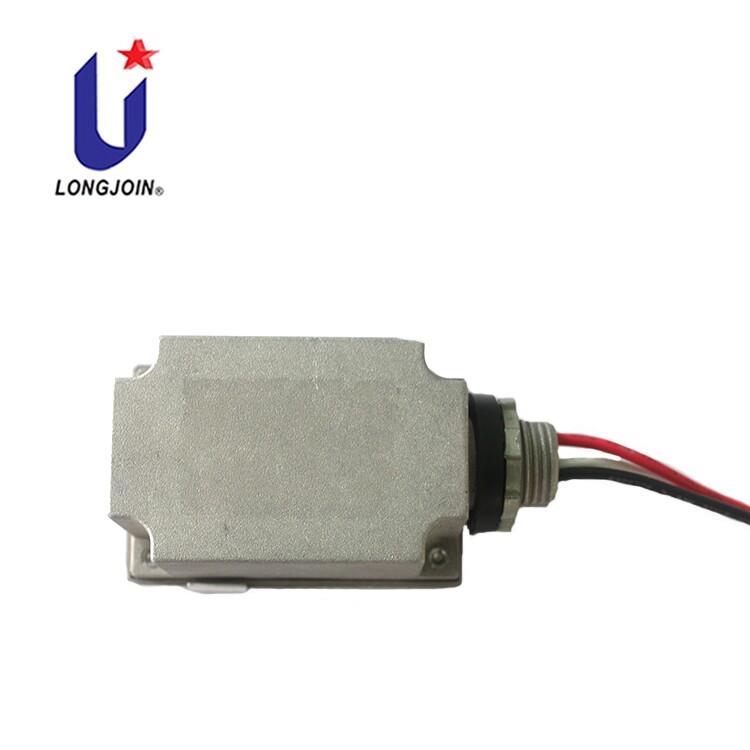

Aluminum Die-cast Enclosure
Heavy Duty up to 2000VA

Product Description

Dusk to Dawn Light Sensor Parameter

Model No.	*JL-116A（V）**	*JL-116B（V）**	*JL-116C（V）**	*JL-116D（V）**
Rated Voltage	120VAC	220~240VAC	208~277VAC	277VAC
Rated Frequency	50/60Hz
Rated Loading	2000W Tungsten, 2000VA Ballast
Power Consumption	1.5W Max
On/Off Level	10-20 Lx On 30-60 Lx Off
Ambient Temp.	-40℃ to +70℃
Related Humidity	96%
Body Meas	50(wide)x37(depth)x91(height)mm
Swivel Meas	85(L)x36(Dia.Max)mm;200°
Weight Approx.	60 grs
Time of warranty	Each one uses up to 5000 times,3 Years Warranty!

Installation Disconnect power, place screw thread of the SWITCH in knockout hole and fasten withrubber gasket and Zinc alloy lock-nut.Wire according to the diagram:

Slide the shading strip to have preferred On/Off levels, if necessary.Do not install the switch with the Photocell facing artificial or reflected light. This will causethe unit to cycle on and off at night.
