The photocontrol JL-106 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
It is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
Its swivel version is convenient for direction adjustment after installation.
Características
Time Delay 30~120 seconds
Ambient Temperature：-40℃ ~ +70℃
Rosca de parafuso (NPT 1/2") e porca de liga de zinco
Portuguese
English
Spanish
Russian
Arabic
Italian
Japanese
Descrição do produto fornecida pelo fornecedor

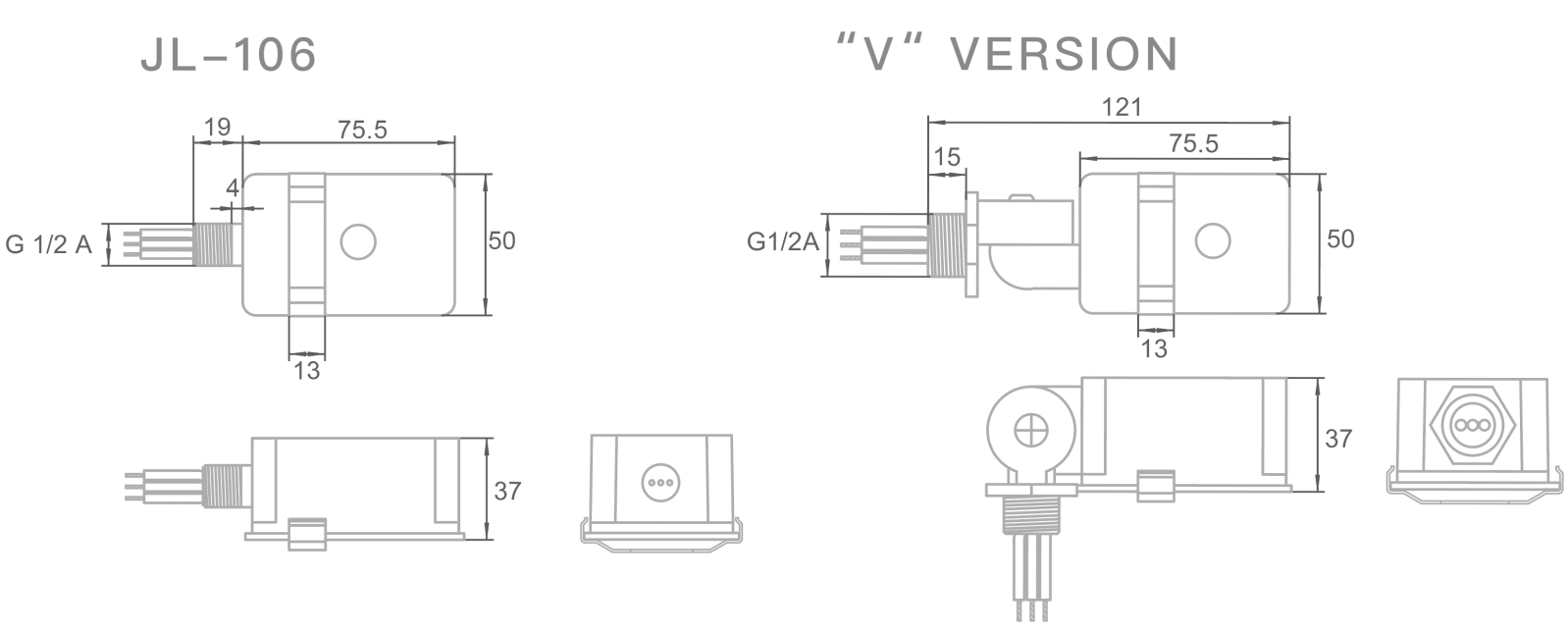

JL-106
“v”version
Resumo do produto
The photocontrol JL-106 is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
It is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
Its swivel version is convenient for direction adjustment after installation.
Características
Especificações
4″ min
