Urban lighting is evolving fast. Cities now demand smarter, greener solutions. The JL-712A3 Zhaga intelligent lighting control answers that call. Built for modern street lighting, it blends advanced sensors, robust performance, and unmatched compatibility. It doesn’t just control lights—it reshapes how cities use energy. As smart city development accelerates, the JL-712A3 is leading the way in sustainable, intelligent illumination.
What Technological Innovation Does JL-712A3 Incorporate?
The JL-712A3 light sensor stands out with its advanced dual-sensor system and dynamic frequency adjustment, ensuring precise environmental perception and stable performance even in densely installed environments.
Dual Sensor Integration

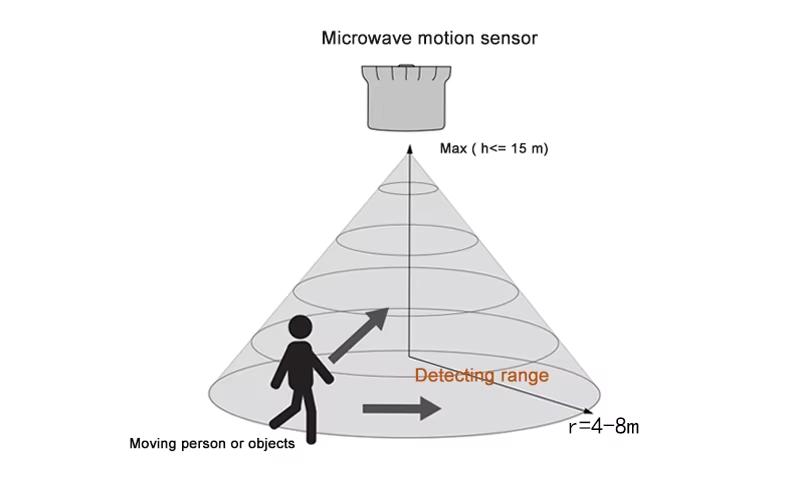

The JL-712A3 combines optical and microwave motion sensors. It accurately detects ambient light levels and motion. This allows real-time lighting adjustments based on environmental conditions and activity. The dual-sensor setup ensures optimal illumination. It also improves energy efficiency.
Dynamic Frequency Adjustment
The photocell light switch includes an automatic, dynamic microwave frequency adjustment feature. This mechanism prevents signal interference in high-density installations. It ensures reliable communication. It also maintains consistent performance across large-scale deployments.
Important Technical Specifications of JL-712A3 Light Controller
| Specification | Detail | Specification | Detail |
| Power Supply | 12-24V DC | Power Consumption (Daylight) | 3.5 mA |
| Sensor Type | Optical sensor & Microwave motion sensor | Dimming Output | 0-10V, adjustment range 2%, Drive capability: 40 mA |
| Spectral Acquisition Range | 350~1100 nm, Peak wavelength 560 nm | Default Turn-On Illuminance Threshold | 50 lx ±10 |
| Light-On Delay | 5 seconds | Turn-Off Delay | 20 seconds |
| 100% Lighting Duration After Motion Trigger | 30 seconds | Standby Brightness | 20% |
| Maximum Hanging Height | 15 meters | Sensing Radius | 4-8 meters (under 15m hanging height) |
What Are the Compatibility and Standardization Advantages Of JL-712A3 Photosensor?
This photo switch sensor is engineered for seamless integration and broad compatibility, adhering strictly to the Zhaga Book 18 standard.
How does This Compliance help?
This ensures interoperability with various luminaires and control devices. The standardization allows for plug-and-play installation. It also simplifies maintenance across different manufacturers’ products.
0–10V Dimming Output
The JL-712A3 features a 0–10V dimming output and a 2% adjustment range. Its 40 mA drive capability allows precise brightness control and ensures compatibility with a wide range of LED drivers.
Mechanical and Electrical Interface
The controller uses a 4-pin Zhaga connector. It offers a standardized mechanical and electrical interface. The design supports hot-pluggable connections. This enables easy installation and replacement, further reducing the need for specialized tools. Here is a table detailing the wiring of the four pins of JL-712A3.
| Pin Number | Function | Description |
| 1 | 12–24 VDC | Power input for the controller. Accepts a DC voltage range between 12V and 24V |
| 2 | GND / DIM− | Ground connection and negative terminal for the 0–10V dimming control |
| 3 | NC | Not connected; reserved for future use or manufacturer-specific functions |
| 4 | DIM+ (0–10V+) | Positive terminal for the 0–10V dimming signal output to the LED driver |
Flexible Installation Options
The JL-712A3 has a compact design. This allows flexible installation positions. It can be mounted on top, bottom, or side of luminaires. This versatility suits various street lighting configurations. It meets different design requirements.
How Durable and Safe Is JL-712A3?
This photosensor is made for tough outdoor use. Its rugged build ensures reliable performance over time. It stands up well to harsh environments. Even in extreme weather, it keeps working without failure.
IP66 Protection Rating
The JL-712A3 has an IP66 rating. It is completely sealed against dust. It also resists high-pressure water jets. This makes it suitable for all kinds of climates. It performs well in coastal areas, industrial zones, and rainy conditions. Here are some primary benefits of a high IP rating:
- Prevents moisture ingress
- Reduces the risk of internal component failure over time
- Significantly extends product lifespan in the field
Wide Operating Temperature Range
The JL-712A3 works reliably from -40°C to 55°C. This range covers most global climate zones. It performs well in sub-zero winters and scorching summers. The internal electronics stay stable in all conditions. This thermal resilience keeps street lighting running year-round. There’s no need for seasonal recalibration. Manual intervention is also unnecessary.
UL94-V0 Flame Retardant Certification
The photocontrol receptacle meets the UL94-V0 flammability standard. This means it self-extinguishes within 10 seconds without dripping. For densely wired urban areas, this feature is critical. It helps reduce fire risk near sensitive infrastructure. Municipalities and utilities gain peace of mind. The safety standard adds extra protection during deployment.
How JL-712A3 Helps With Energy Savings?
This LED street light photocell is engineered for optimal energy efficiency. It combines advanced sensor technology with intelligent control mechanisms to minimize power consumption without compromising performance.
Ultra-Low Standby Power Consumption
In daylight, the JL-712A3 uses only 3.5 mA. That equals about 0.042 watts. This is far below the 0.5-watt limit set by the One Watt Initiative. It meets global energy-efficiency standards. With such low standby power, the controller adds almost nothing to overall energy use when lighting isn’t needed.
Adaptive Lighting via Dual-Sensor Technology
The JL-712A3 includes optical and microwave motion sensors. It adjusts lighting in real time based on the environment and motion. This dual-sensor setup provides accurate control. The lighting turns on only when necessary. For example, when no motion is detected, it holds at 20% brightness. When movement is sensed, it shifts to full brightness. After a set time, it again returns to standby mode.
Intelligent Dimming for Enhanced Efficiency
The JL-712A3 supports 0–10V dimming. It can adjust brightness starting from 2%. The drive capability is 40 mA. This enables precise light control. It cuts down energy use during low activity or bright ambient conditions. These smart dimming functions are key to reducing energy in outdoor lighting.
Here is a table detailing 0- 10V dimming protocols
| Feature | Description |
| Voltage Range | 0 to 10 volts DC control signal for dimming |
| Compatibility | Works with a wide range of LED drivers and ballasts that accept 0–10V input |
| Installation Simplicity | Utilizes low-voltage wiring, simplifying installation and maintenance |
| System Integration | Can be integrated into building management systems for centralized control |
What is the Standing of JL-712A3 in the Lighting Market?
This intelligent photo controller has built a strong global presence in the smart lighting market. Its growth is driven by strategic partnerships and a steady focus on innovation.
Dominant Market Share in North America
Shanghai Long-Join Intelligent Technology, the JL-712A3 photocell manufacturer, hold a strong position in the North American market. For over 10 years, the company’s market share has stayed above 60%. This shows wide adoption and strong trust in its products. The controller’s reliability and performance support this leadership across many applications.
Collaborations with Leading Global Brands
The JL-712A3’s success is strengthened by global partnerships. Long-Join works with major lighting brands. These Include
- Signify (formerly Philips Lighting)
- GE Lighting
- IDEAL INDUSTRIES
- Eaton Cooper, and others.
These collaborations increase the controller’s visibility and trust. They also help integrate it into many lighting systems for urban and industrial use.
Global Reach and Standardization
Long-Join has expanded beyond North America. It holds over 70% market share in South America, Europe, and Southeast Asia. This worldwide presence is backed by compliance with global standards. Support for Zhaga Book 18 ensures compatibility across different lighting infrastructures.
How Can JL-712A3 Overcome Market Challenges and Stand Out in a Competitive Landscape?
The JL-712A3 Zhaga photocell faces some key challenges. These include:
- Low awareness of smart lighting benefits
- Strong price competition in certain regions
- Lack of one-size-fits-all light sensors
A well-rounded strategy is needed to overcome these barriers. Here is a comprehensive overview.
Enhancing Customer Education
Raising awareness is critical. Educational tools like case studies and live demos help explain the benefits. These materials show how the JL-712A3 saves energy and improves operations. For example, one campaign showed a 36.58% drop in electricity use with sensor-based control. Such results help drive adoption by showing real-world value.
Leveraging Data-Driven Marketing
Using data analytics to highlight the JL-712A3’s performance can boost market confidence. Sharing detailed reports on energy savings and efficiency helps clients see the value clearly. Real-world metrics build trust and support better decision-making. Data-based promotion shows that the controller delivers measurable results.
Here is a table outlining case studies of some cities that implemented smart lighting.
| City | Project Scope | Energy Savings | Cost Savings | CO₂ Emissions Reduction |
| Los Angeles | Replaced 140,000+ streetlights with LED fixtures and integrated smart controls. | 63–65% | Approximately $9 million annually | 60,000–65,000 metric tons per year |
| Copenhagen | Upgraded 18,800 streetlights to LED with smart controls as part of a carbon neutrality goal by 2025 | 55–77% | Over €2.5 million saved annually | 3,200 tons annually |
| Buenos Aires | Replaced 91,000 streetlights with smart LEDs and implemented remote monitoring systems. | 50% reduction in energy consumption. | Over $7.4 million saved annually. | 9866 tons annually |
Offering Customized Solutions and Bundling
Standing out in a crowded market requires flexibility. Custom solutions tailored to specific client needs add value. Bundling the JL-712A3 with compatible lighting systems creates a complete package. Customization options also address unique operational demands. These approaches make the controller more appealing than standalone products.
Final Words
The JL-712A3 sets a new benchmark in smart, energy-efficient outdoor lighting. Its advanced sensors and standardized design deliver reliability and flexibility across urban environments. For a trusted source of JL-712A3 controllers, Chi-Swear offers proven quality and dependable service.
