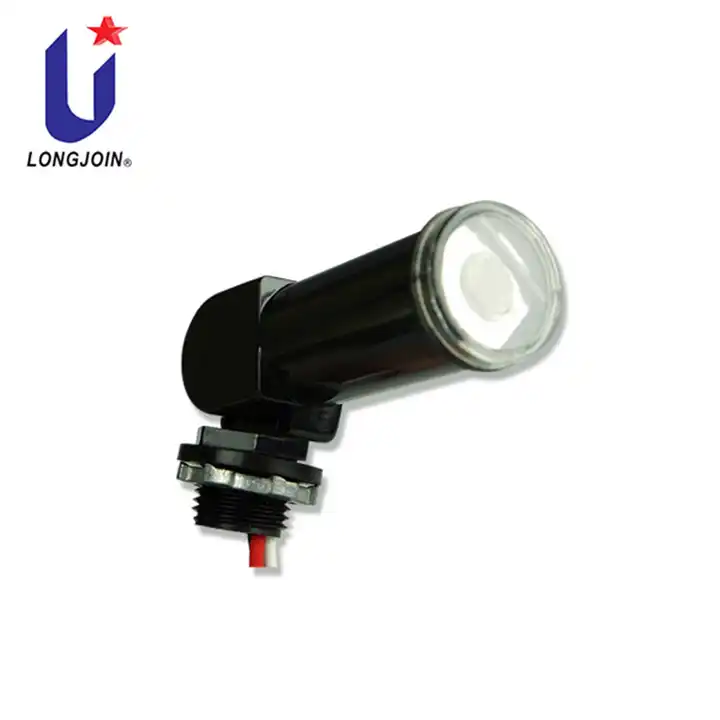

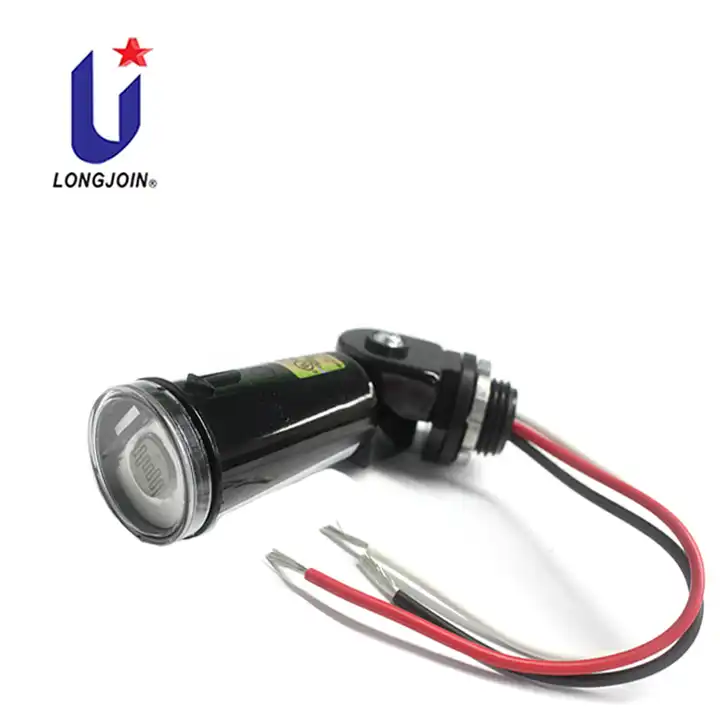

100-120VAC Swivel Photocell Sensor JL-104A
Product Details:
100-120VAC Swivel Photocell Sensor JL-104A
Industry-specific attributes
Usage
built in mounting light fixtures
 |
Model No. |
JL-104A |
JL-104B |
JL-104C |
JL-104D |
|
Rated Voltage |
120 VAC |
240 VAC |
208-277 VAC |
277 VAC |
|
|
Rated Frequency |
50/60Hz |
||||
|
Rated Loading |
1800W Tungsten, 1100 VA Ballast |
||||
|
Operated Levels |
10-20Lx Turn-on / 30-60Lx Turn-off |
||||
|
Ambient Temperature |
’-40℃~+70℃ |
||||
|
Related Humidity |
0.96 |
||||
|
Failure Mode |
Fail-on |
||||
|
Leads Length |
AWG#16,AWM1332, min4” |
||||
|
Raintight Cap |
Optional |
||||
|
Certificate |
UL, CE |
||||
|
Model No. |
JL-404C |
 |
|
Rated Voltage |
120-277VAC |
|
|
Rated Frequency |
50/60Hz |
|
|
Rated Loading |
500W Tungsten, 850 VA Ballast |
|
|
Operated Levels |
10-20Lx Turn-on / 30-80Lx Turn-off |
|
|
Ambient Temperature |
’-40℃~+70℃ |
|
|
Related Humidity |
0.96 |
|
|
Failure Mode |
Fail-on |
|
|
Leads Length |
AWG#18,105℃,AWM1332, min 4” |
|
|
Raintight Cap |
Optional |
|
|
Certificate |
UL |
Product descriptions from the supplier
| Note: This PhotoControl is suitable for a variety of outdoor lighting control, flexible installation and use, 180 degree rotation, adjustable light sensing direction. |
