Direct Wire-In Digital Photocontrol Automatic Control Street Light with UL773A FCC Regulations

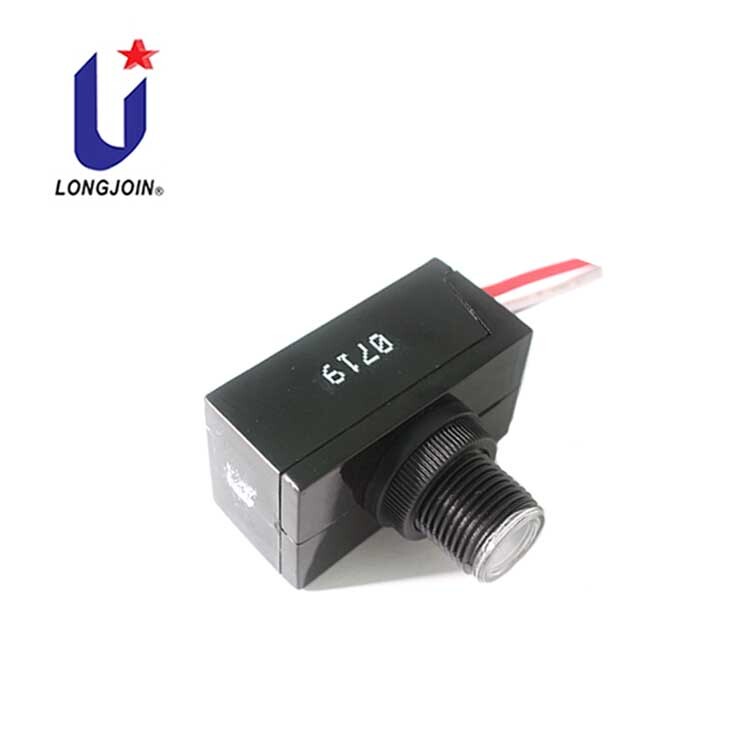

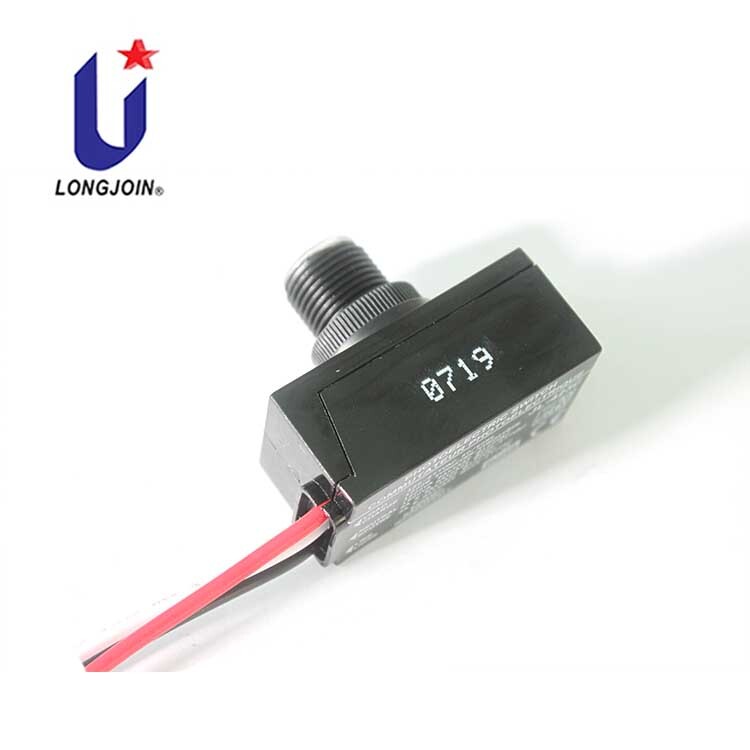

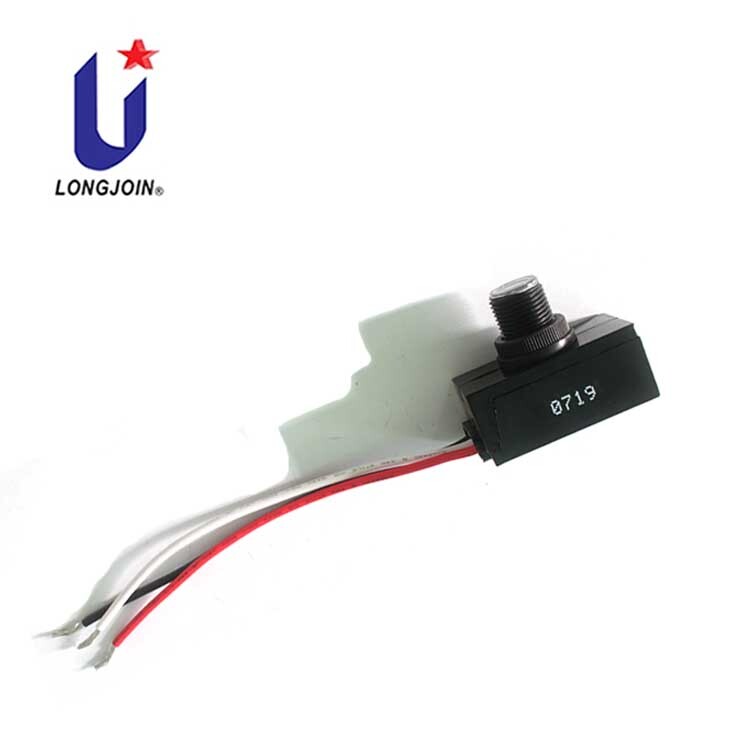

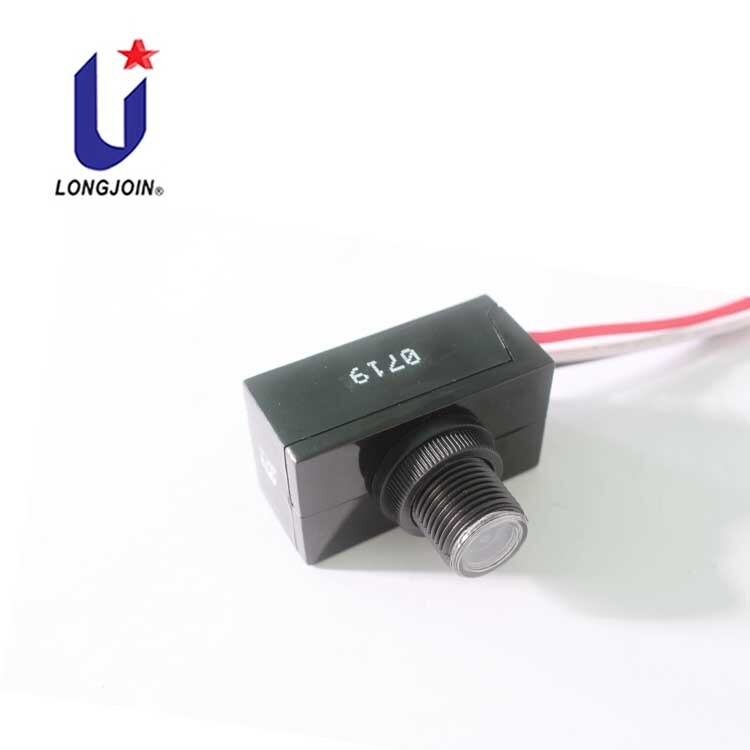

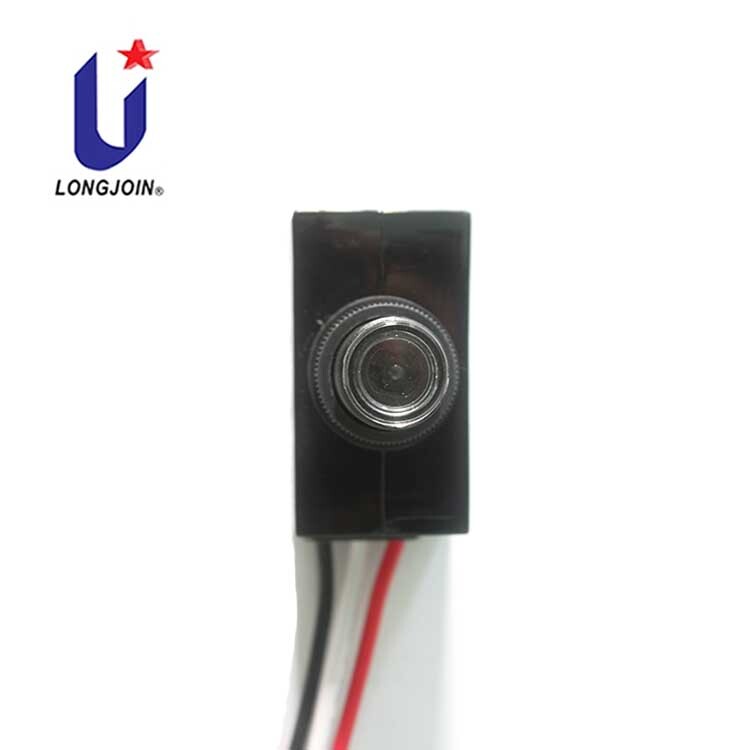

Product Summary

The photocontrol JL-423 series is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.This product is designed with electronic circuits with MCU incorporated. Its quicker response with time delay of 5 seconds offers easy-to-test feature while avoiding redundancy operation due to spotlight or lightening during night time. Especially, it supports midnight sleeping and reburning before dawn.Optional Z version has zero-cross technology built-in for longer work life, while conforms FCC regulations.Further, JL-423CM provides surge protection feature up to 235J/5000A.

Features

• UL773A direct wire-in
• Multi-Volt applicable
• Fail-On default, Fail-Off customizab
• Optional MOV surge protectionle
• IR-Filtered Phototransistor Sensor
• Customizable night multi-section timing switch
• IP54 / IP65 protections Available，Rain cap can be added
• Instant / Delayed Switching Available

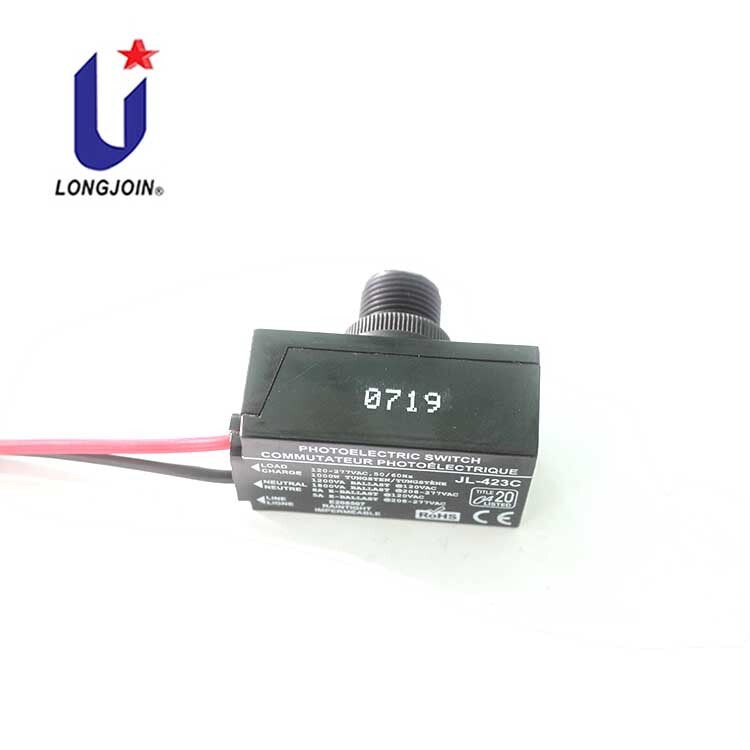

Specifications

Model No.	JL-423C	JL-423CM	JL-423CMZ	JL-423CL
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten1200VA Ballast @120VAC  1800VA Ballast @208-277VAC8A e-Ballast @120VAC  5A e-Ballast @208-277VAC
Power Consumption	0.5W Max.
Operate Levels	16Lx Turn-On / 24Lx Turn-Off (customizable)
Time-delay	5-10s (customizable)
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG #16,AWM 10154″ min
Failure Mode	C4:Fail-On  C5:Fail-Off
Surge Protection	–	460J/ 10000A(MOV)			–
Zero crossing	–	●
FCC	●
Rainproof Cap	Optional

Installation

Disconnect power, remove junction box cover, place the photocontrol in knockout hole and fasten with locknut.Wire according to the diagram in right hand.Do not install the photocontrol with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.

Initial Testing

• It is normal for the SWITCH to take few seconds to turn off when first installed.
• To test “turn on” during daytime, cover its eye with opaque material.
• Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
• Test will take approximately 1 minutes.
