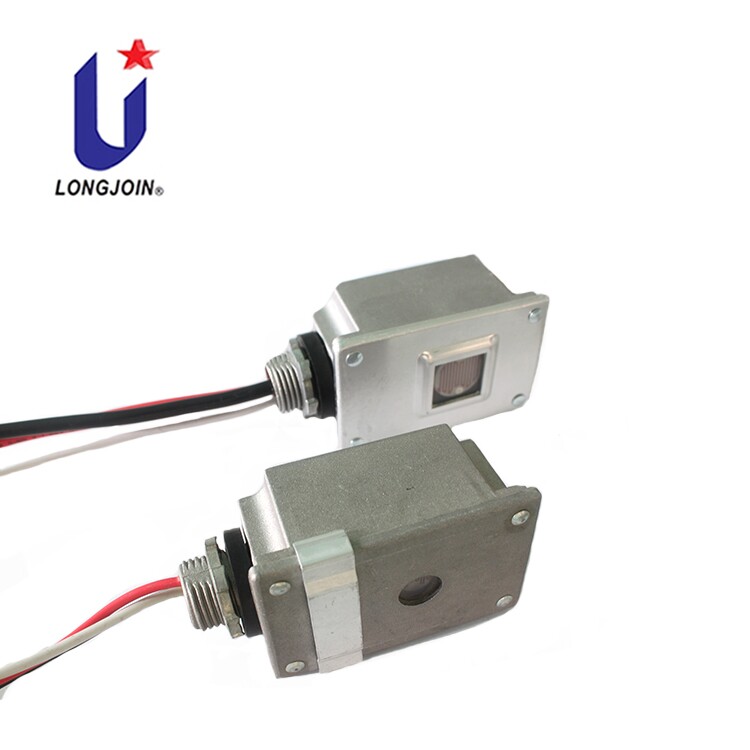

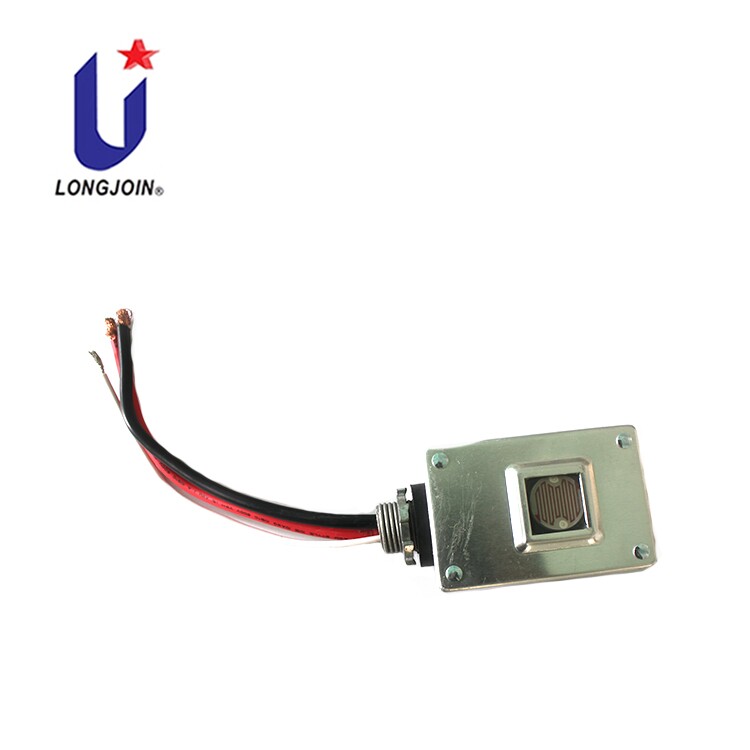

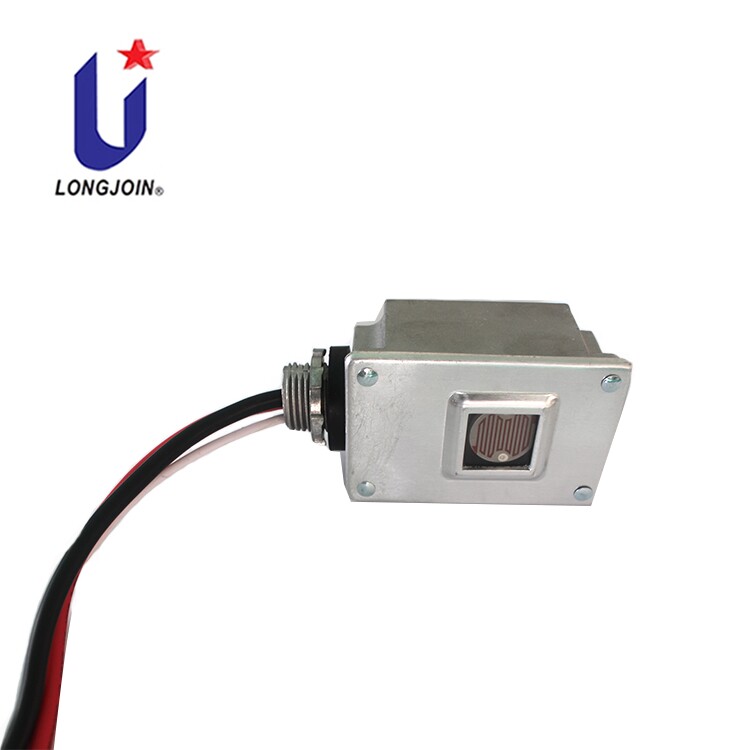

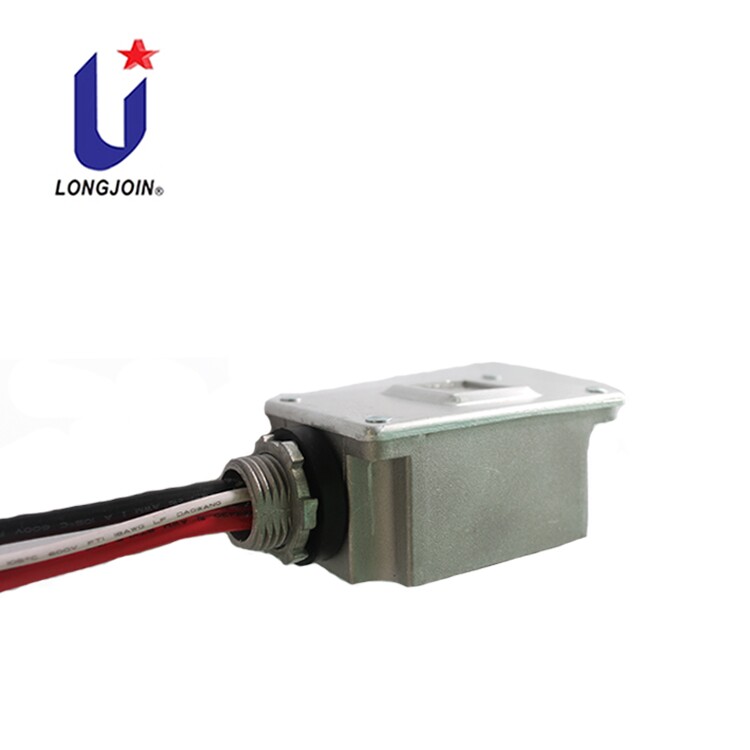

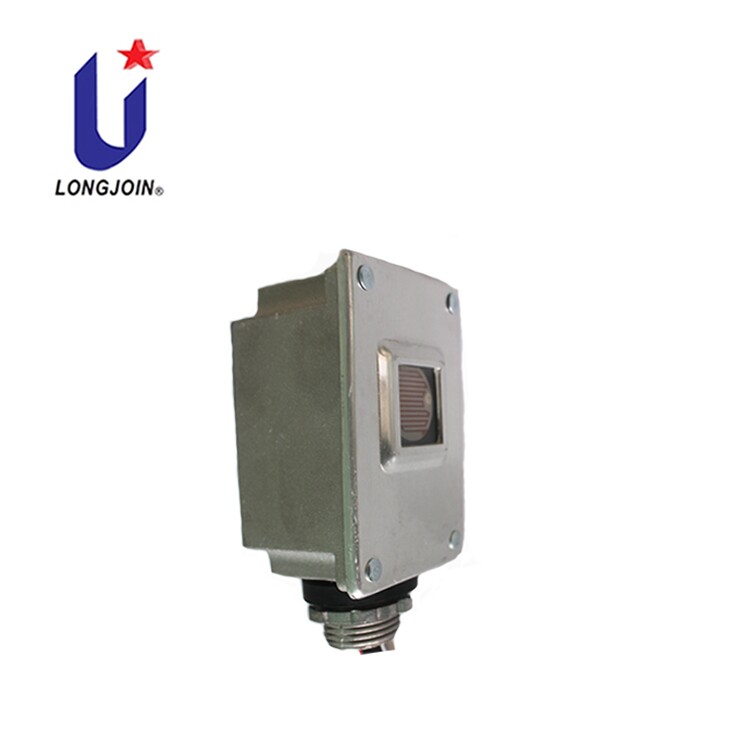

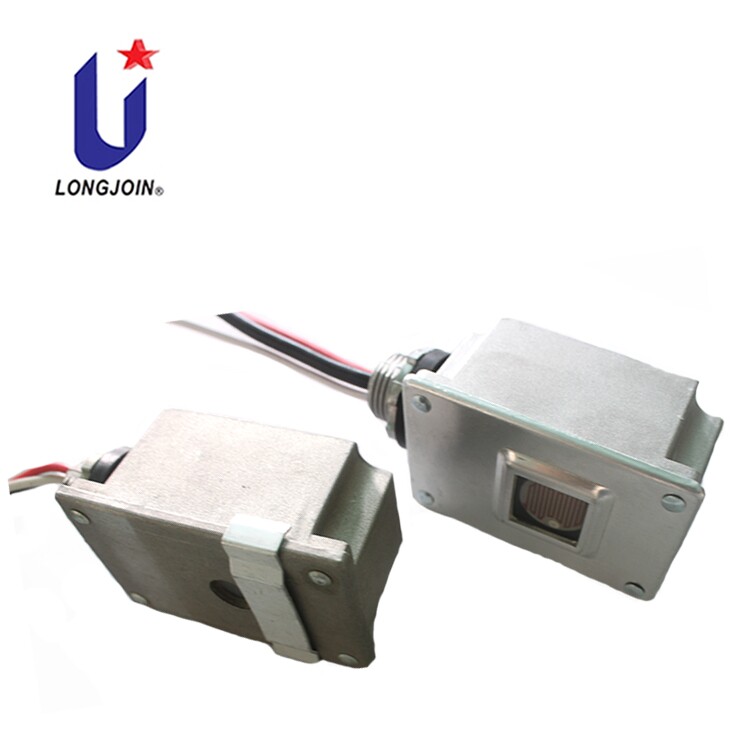

Direct Wire-in Thermal Photocontrol JL-126 for Controlling the Swimming Pool Drainage Pump

Product Details:

Direct Wire-in Thermal Photocontrol JL-126 for Controlling the Swimming Pool Drainage Pump

Professional Photocell Manufacturer here now.OEM and ODM One-stop service Customized, happy send sample to you confirm quality.
Usage scenario: Used to control the drainage pump of a private swimming pool

Features

  •  Time Delay 30~120s
  •  Ambient Temperature: -40℃ ~ +70℃
  •  Additional Swivel Available
  •  Screw Thread (NPT 1/2″)& Zinc Alloy Nut
  •  Aluminum Die-cast Enclosure
  •  Heavy Duty up to 3000VA

Product Description

                     Dusk to Dawn Light Sensor Parameter
Model No.JL-126AJL-126BJL-126D
Rated Voltage120VAC220-240VAC277VAC
Rated Frequency50/60Hz
Rated Loading3000W Tungsten, 3000VA Ballast
Power Consumption1.5W MAX
On/Off Level10-20 Lx On 30-60 Lx Off
Ambient Temp.-40℃ to +70℃
Related Humidity96%
Body Meas50(wide)x37(depth)x91(height)mm
Swivel Meas85(L)x36(Dia.Max)mm;200°
Weight Approx.60 grs
Time of warrantyEach one uses up to 5000 times,3 Years Warranty!
For high-end users: The aluminum die cast casing and military grade nickel chromium alloy sensor ensure that your pool pump is worry free for ten years in salt spray and chlorine environments, reducing maintenance times by 90% compared to plastic controllersFor engineering contractors: The combination of zinc alloy nuts and nickel plated threads reduces installation costs and avoids after-sales replacement time caused by corrosion

Photocell Sensor Specification

Main Products
 Wire-in Thermal Photocontrol JL-106A
Need a Quote for JL-126?
Send your target quantity, operating voltage and socket type. Our engineers reply within 24 hours with pricing, MOQ, lead time and the current datasheet for this model.
Request Price & Datasheet →

JL-126 datasheet & drawings — full electrical ratings, interface tolerances and compliance data for this model.

Sent to your inbox within 24 hours. Request the JL-126 datasheet →
Tell us your fixture voltage, receptacle type and estimated annual quantity, and we will attach the correct variant table and OEM options.
