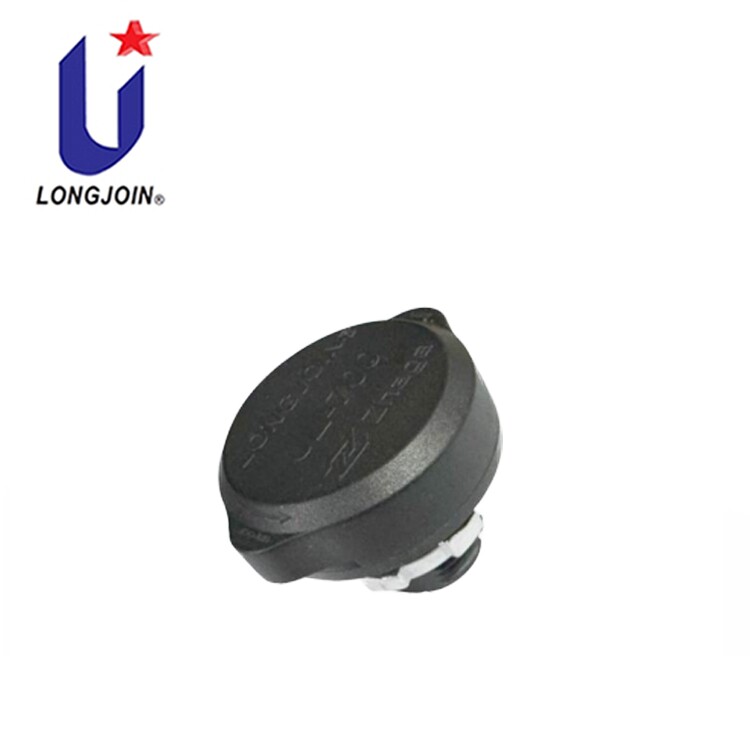

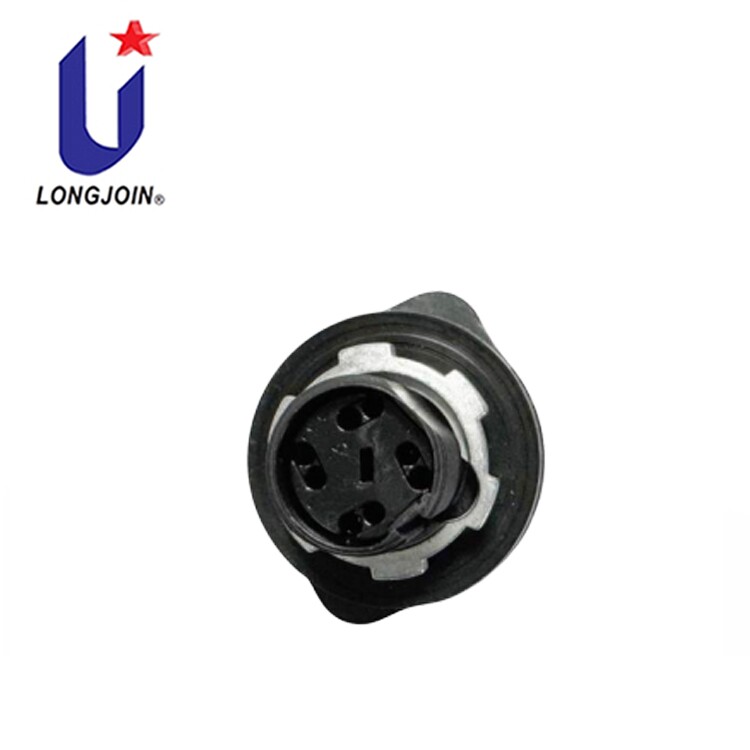

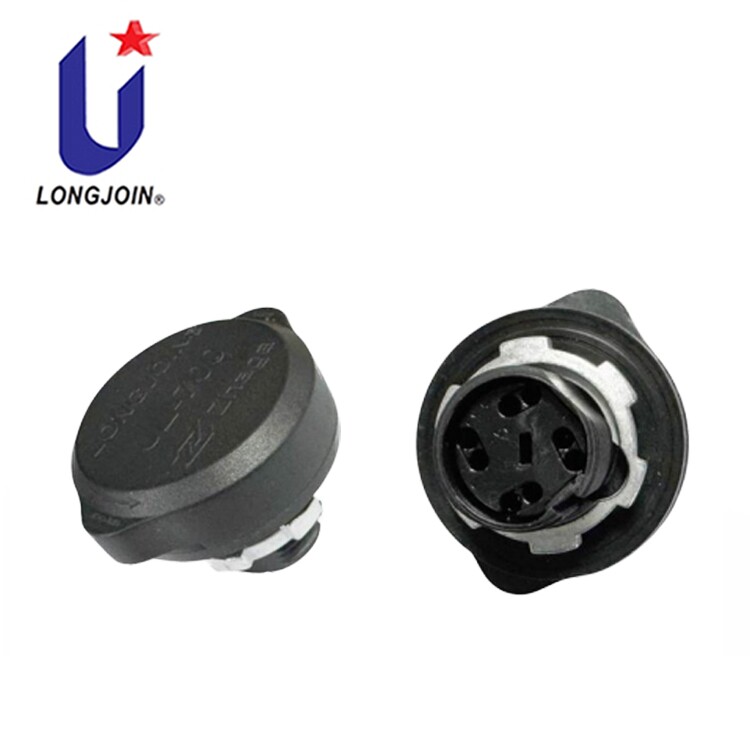

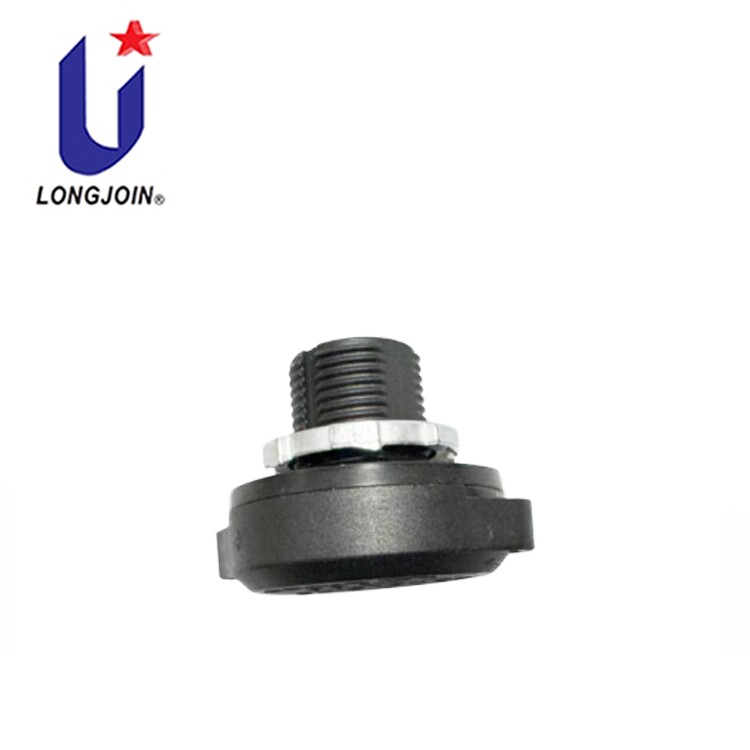

Jl-700W2 locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R、Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

Drilling plan

FEATURES

• Standardized interface defined in Zhaga Book-18
• Compact size allowing greater flexibility in luminaire design
• Advanced sealing to achieve IP66 with no mounting screws
• Flexible mounting position, upwards, downwards and sideways facing
• Integrated single gasket that seals to both luminaire and module that minimizes assembling time
• Multiple models with a diameter of 40~80 are available to meet the size requirements of various controller designs

Specifications

Line color definition

– Port 1：24VDC

– Port 2：DALI–/GND

– Port 3：DALI+

– Port 4：reserveI/O

Wiring diagram

If the drive has no auxiliary power supply, an external power supply is required,It is recommended to use JL-710 built-in power socket.

*If the light controller is a non-standard product, please define the specific wiring according to the light controller pin.
