Fixed Twist-lock 5 PIN Photocontrol Dimming Receptacle-ANSI C136.41 JL-240SXB
Product Details:
JL-240SXB
Product Summary
All the JL-240SXB photocontrol receptacle was designed for the lanterns those intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol.This product conforms newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.

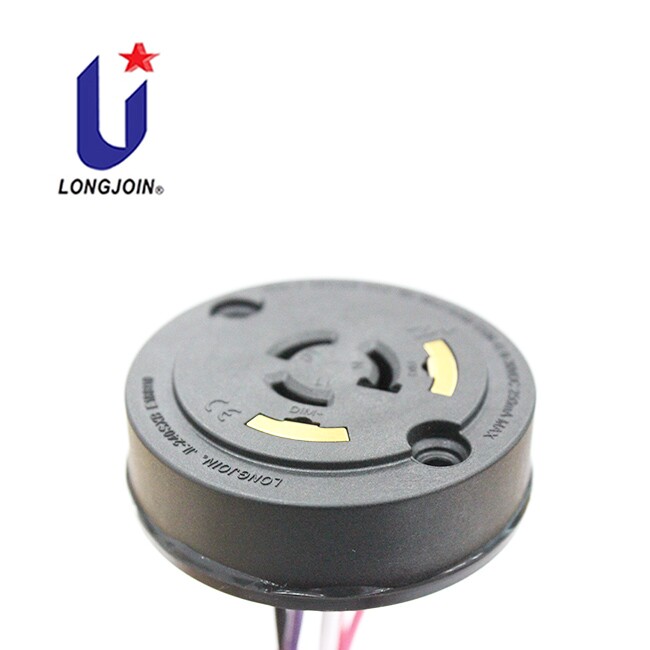

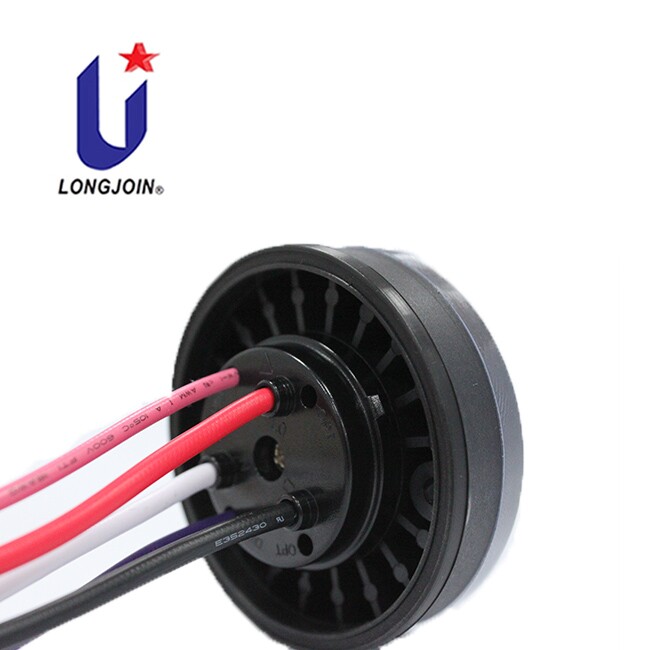

This series offers 2 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts,and offers 2 wiring leads at rear side for signal connection. Especially,this product does not occupy any space inside the lantern for those cases less internal space available
Features
- Glass-Fiber strongenPBT
- GildedPads made from phophor bronze Nickel plated and gilded over 0.7um
- Goldplating per ASTM B 522
- Siliconegasket applied toflange
- Shorterbody design for slim fixtures
Specifications
| Model No | JL-240SXB |
| Applicable Volt Range | 0~480VAC |
| Rated Frequency | 50/60Hz |
| Load Rating | 15A |
| Signal Control | 0-30 VDC,250 mA Max |
| Lead | 16AWG,14AWG
6″min |
| Ambient Temperature | -40℃~+70℃ |
| Related Humidity | 96% |
| Outdoor Wiring Cable | Y |
| Certifications | UL,ROSH,CE ,UKCA,CB |
Installation
Disconnect power,wire the receptacle according to the diagram below.
An arrow indicating NORTH on the top face is used to assist correct orientation.
Ordering Information
JL-240SXB1412
| 1 | 2 | 3 |
| B | 14 | 12 |
1:B=2 Dimming pads
2:Power Lead Rating
14=14 AWG,105°℃ rated
14G=14 AWG 150 ℃ rated
16=16 AWG,105°℃ rated
16G=16 AWG 150 ℃ rated
16S=16 AWG Double isolated wire (Class Il)
3:12=12”(Customizable,06 Min.)
