JL-118AV Adjustment Transducer Photo Sensors 120VAC

Product Details:

118_02

118_03



118_04

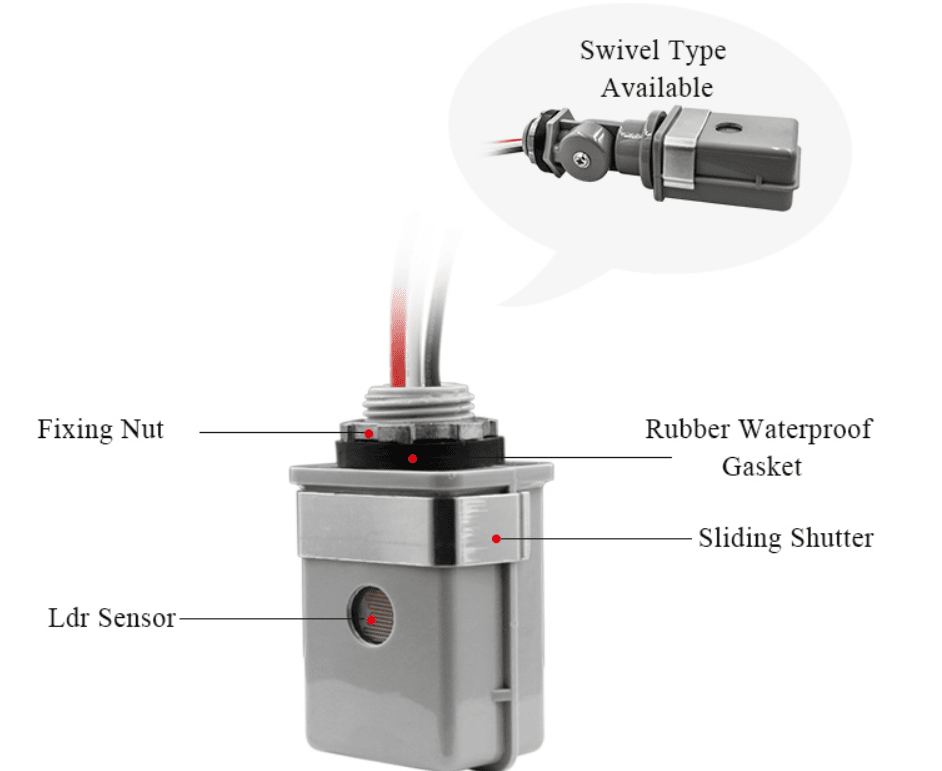

Note: This PhotoControl is suitable for a variety of outdoor lighting control, flexible installation and use, 180 degree rotation, adjustable light sensing direction.



104_05

118_05

118A-06

118A_09

104_09

Model No.

JL-118A(V)

JL-118B(V)

JL-118C(V)

JL-118D(V)

Rated Voltage

120 VAC

220-240 VAC

208-277 VAC

277 VAC

Rated Frequency

50/60Hz

Rated Loading

1800W Tungsten, 1100VA Ballast

Operated Levels

10-20Lx, Turn-on / 30-60Lx Turn-off

Ambient Temperature

-40℃~+70℃

Power consumption

1.5VA

Related Humidity

96%

Failure Mode

Fail-on

Leads Length

AWG#16,AWM1332,min 4″

Raintight Cap

N/A

Orientation

Optional

Certificate

UL, CE



Model No.

JL-428C

JL-428CZ

Rated Voltage

120-277 VAC

Rated Frequency

50/60Hz

Rated Loading

1000W Tungsten,1200VA Ballast@ 120VAC
1000W Tungsten, 1800VA Ballast@ 208-277VAC
8A E-Ballast@120VAC, 5A E-Ballast@208-277VAC

Operated Levels

16Lx Turn-on / 24 Lx Turn-off

Ambient Temperature

-40℃~+70℃

Power consumption

0.4W max

Related Humidity

96%

Failure Mode

C4:Fail-on, C5:Fail-off

Leads Length

AWG#16,AWM1332,min 4″

Zero-Crossing Control

N/A

Optional

Surge protection

MOV15

Certificate

UL, CE

118_12

118_13

Why choose us

01_14

1. For more than 20 years, Shanghai Long-join Intelligent Technology Co., Ltd. focuses on processing and manufacturing and intelligent street lighting controller accessories.

2. Long-join brand reached a long-term cooperative relationship with a famous foreign brand technical lighting solution provider. Such as Home-depot, Amazon, Selc Ireland Limited, CORADIR S.A. LLC, etc.

3. Compare with TE, Amazon, home-depot, more low price, more best quality, higher waterproof, and provide professional sell-after service. 4. Get the global EU zhaga book 18 certifications in 2019, and actively joined the zhaga alliance association. referable look for the website: zhagastandard.org/products.

5. There is a number of other country market certification qualifications. such as UL,CE,RoHS,CB,FCC, and zhaga boo18, etc.

6. We can recommend different enclosure heights, and other colors of enclosures to meet the height of the smart wireless street light controller PCB board.

7. Provide 24-hour after-sales professional consulting services to help you solve related product use and installation problems. Such as JL-241J base and PCB board installation, whether the color of the cover will affect the light control effect, and so on.

You can customize the NEMA series light controller accessories, and also customize the controller PCB panel. further, you can customize the zhaga series light controller accessories. Because we are an integrated company of industry and trade, we are dealing with overseas customized processing orders on time.
