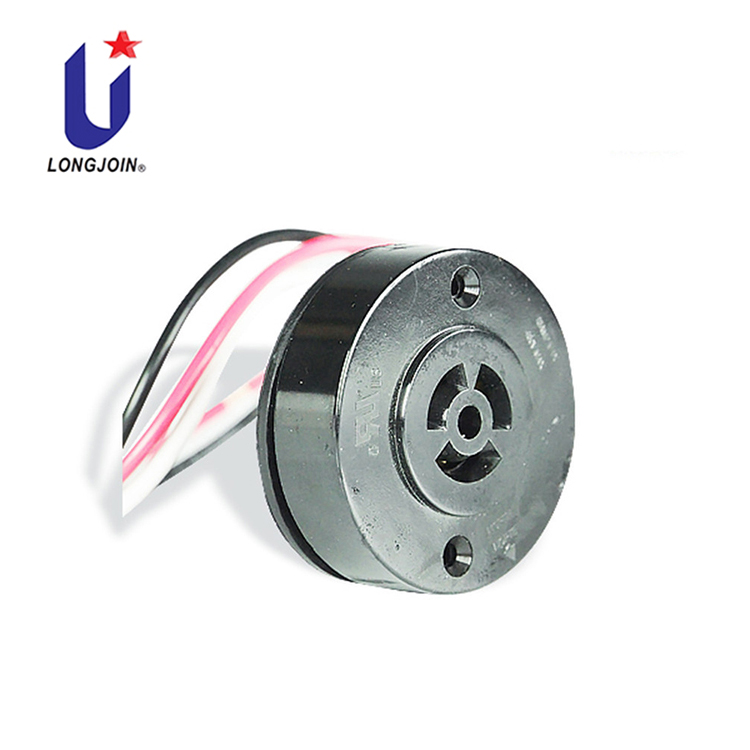

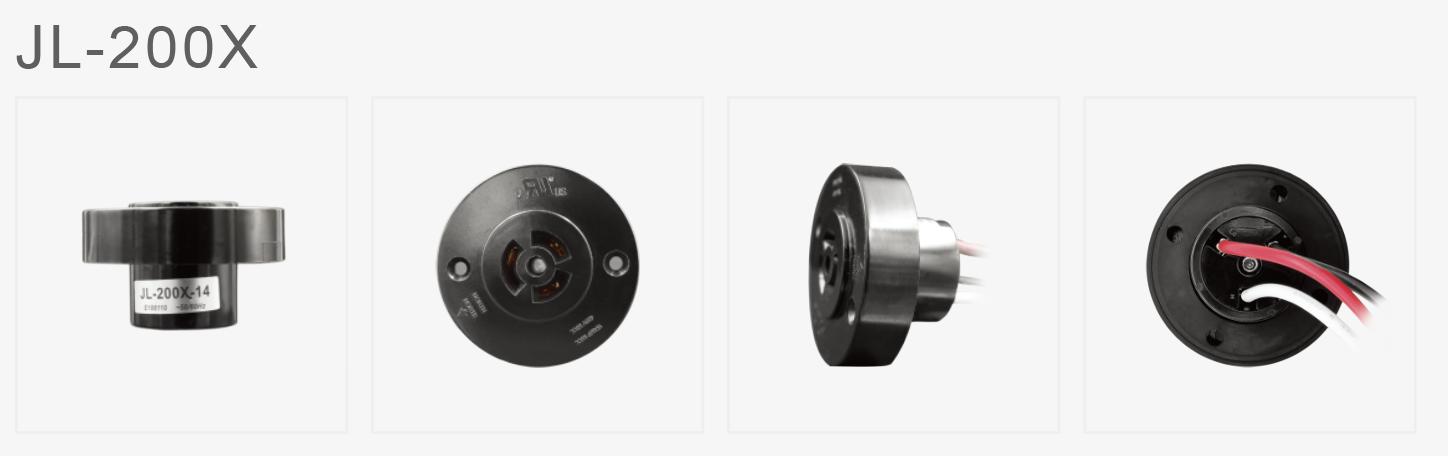

JL-200X Photocontrol Receptacle (NEMA 3P)

Professional Photocell Manufacturer here now.

OEM and ODM One-stop service Customized, happy send sample to you confirm quality.

Product Summary

 All the JL-200 series photocontrol receptacles were designed for the lanterns intended to accept a twist-lock photocontrol for power management.

Specifications

Model No.		JL-200X	JL-200Z
Power Volt Range		0~480VAC
Rated Frequency		50/60Hz
Load Rating		15 A
Ambient Temperature		-40°C ~ +70°C
Related Humidity		96%
Accessory	Rear holder	—			●

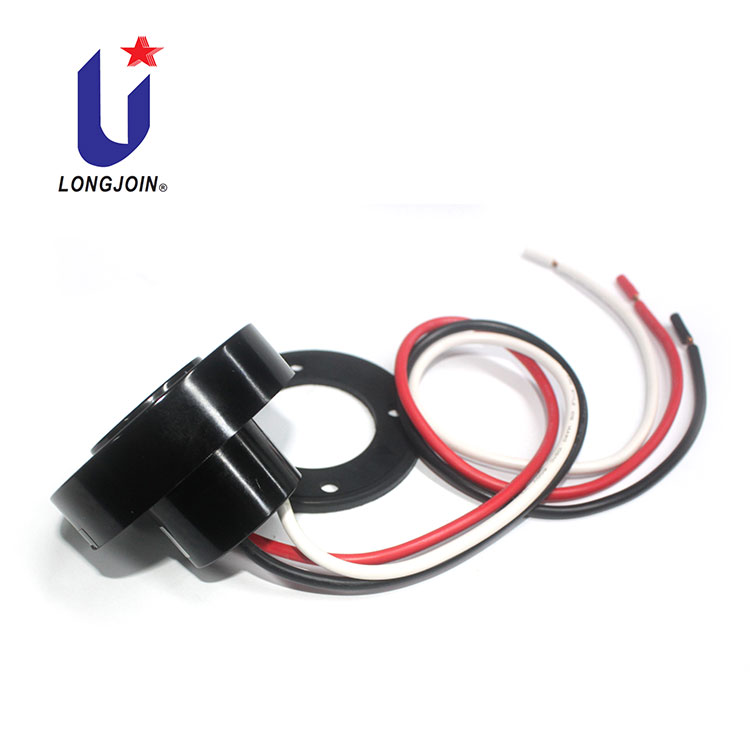

	Zinc Alloy Lock Nut	—			●

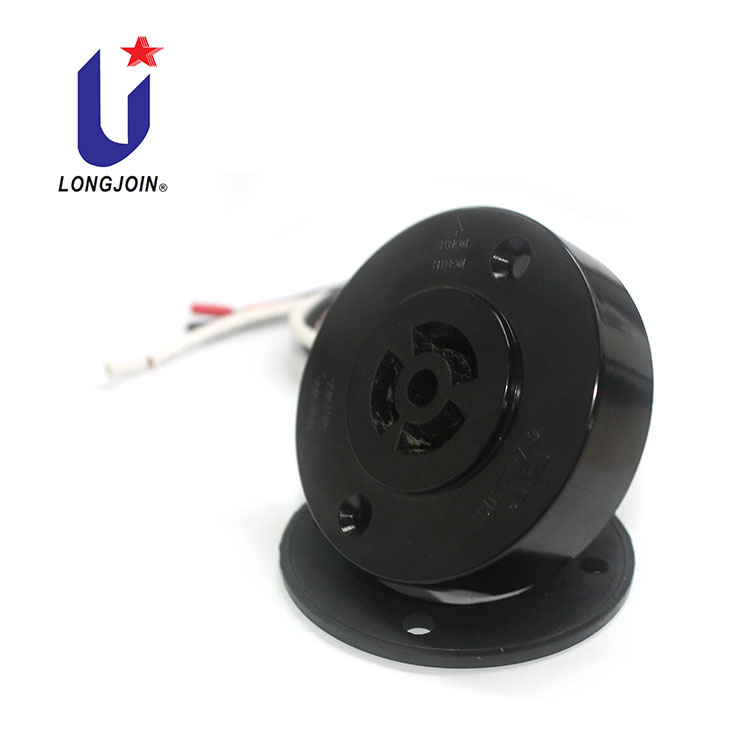

	Mounting Bracket	—			●
Lead Length		6”min
Lead		AWG#12/14/16AWG#18(non-UL)		AWG#12/14AWG#16/18(non-UL)
Cable Line (IP65)		–		Optional

FEATURES

• Bakelite body for long-life service
• Silicone gasket for better waterproof

Installation

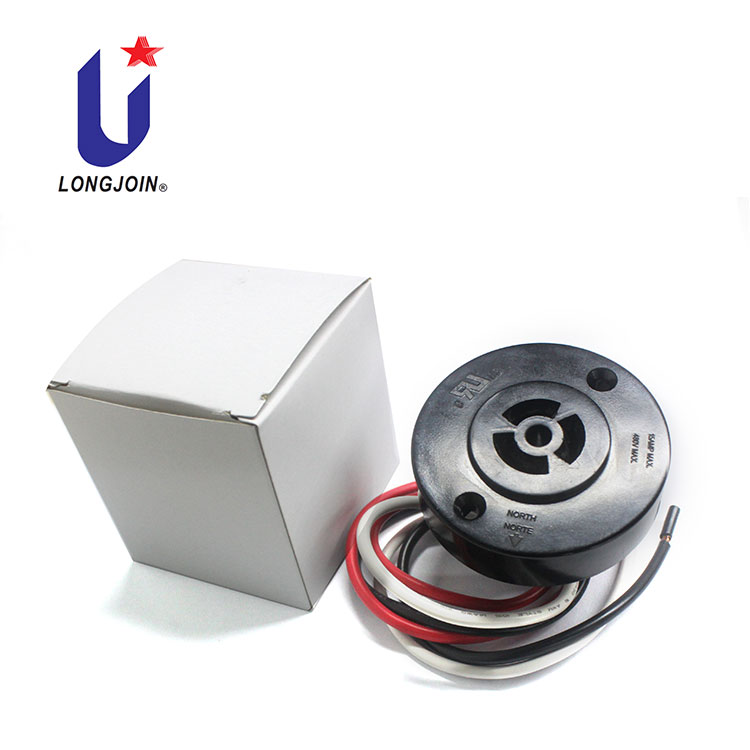

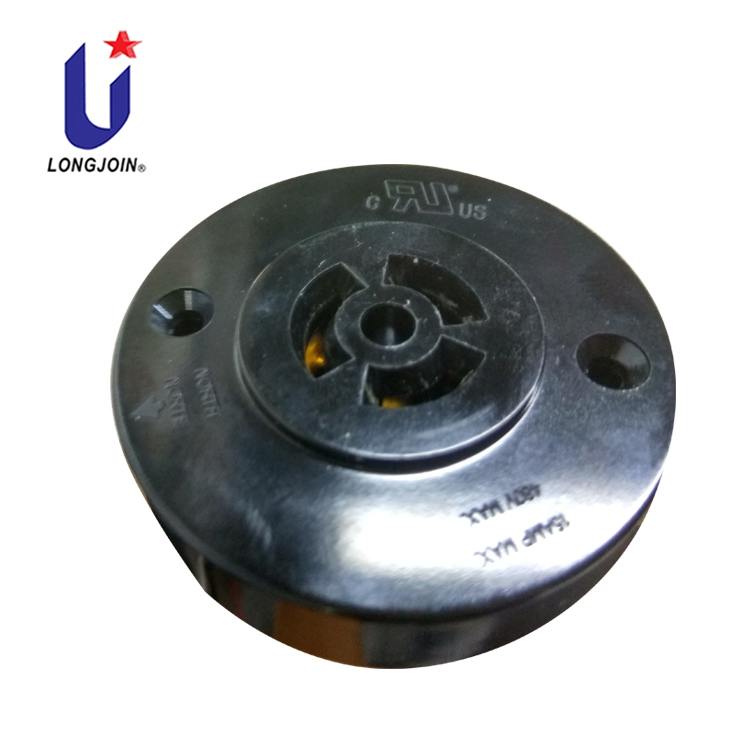

Disconnect power; wire the receptacle according to the diagram below.An arrow indicating NORTH on the top of the receptacle is used to assist correct direction.Adjust the receptacle position if possible. when the fixture is installed in field.

Ordering Information

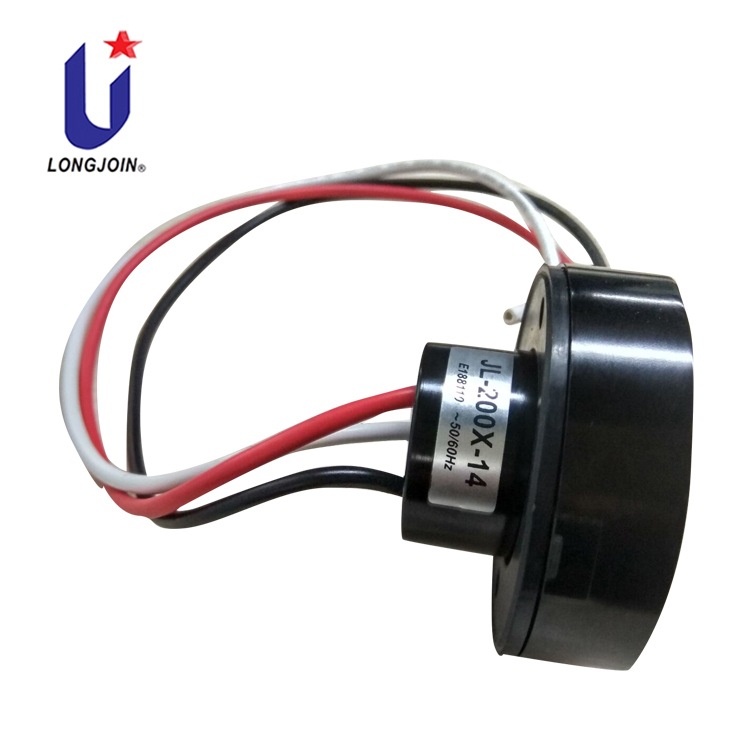

JL-200X 14 06 -N1 -RS –C –L2

	1	2	3	4	5	6	7
JL-200	X	14	06	N1	RS	C	L2

 1: model number：X=lantern assemble purpose, no rear coverZ=wall mount purpose, with rear cover and zinc nut2: Lead Rating14=14 AWG, 105ºC rated14G=14 AWG 150 ºC rated12=12 AWG, 105ºC rated12G=12 AWG 150 ºC rated16=16 AWG, 105ºC rated16G=16 AWG 150 ºC rated18=18 AWG, 105ºC rated18G=18 AWG 150 ºC rated3: Lead Length06 = 6 inches (150 mm) Customizable4: N1=3 mm Silicone gasket (for JL-200X only)N12=12 mm Silicone gasket (for JL-200X only)5: R=Outlet cover with O-ring (option for JL-200X only)RS= Outlet cover with O-ring & Sealed with glue (option for JL-200X only)6: C=Outdoor wiring cable (option for JL-200X only)CWP= Outdoor wiring cable with waterproof nut (option for JL-200Z only)null=Appliance wiring wire with zinc nut and gasket 7: L=aluminum bracketT=Steel bracket* Refer to bracket assembly drawings below for dimension detailsAssemblies
