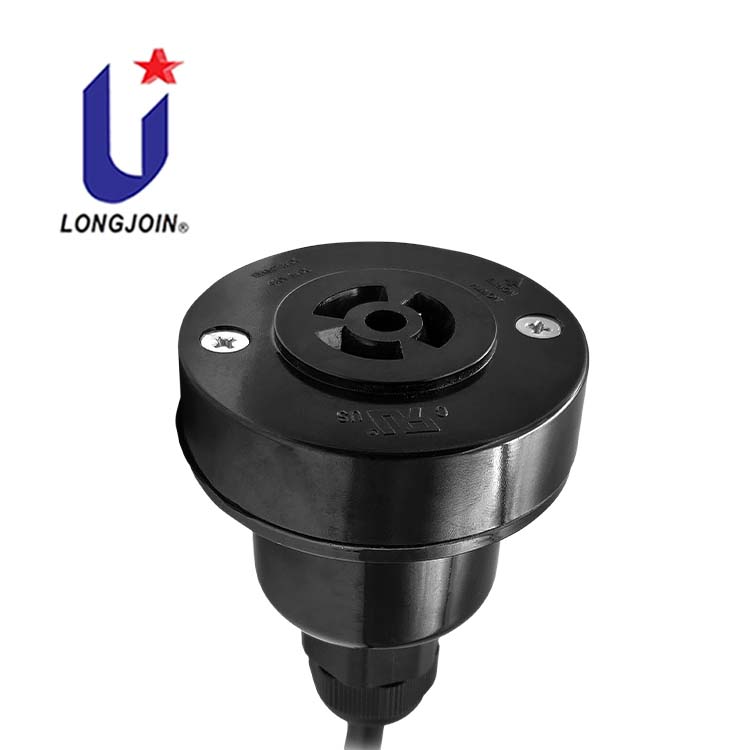

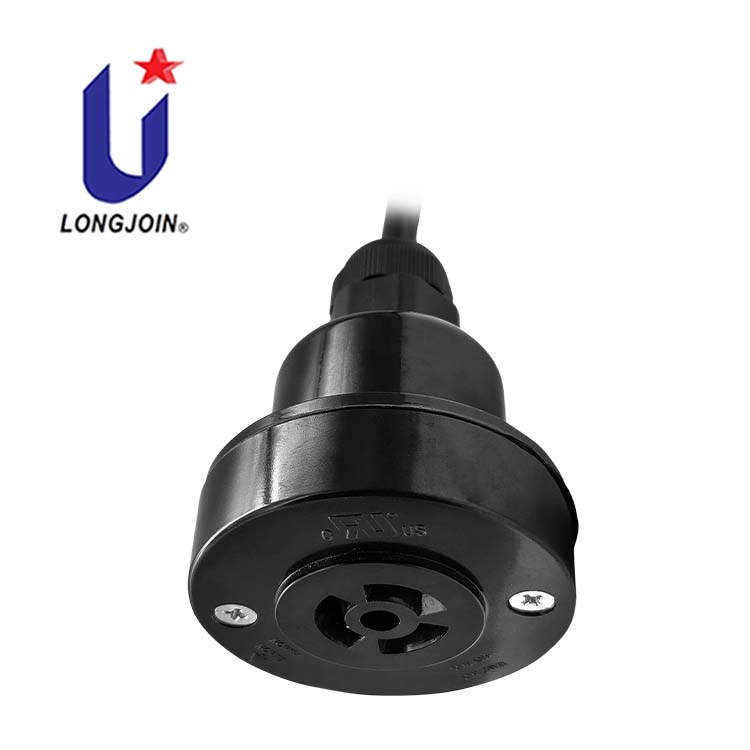

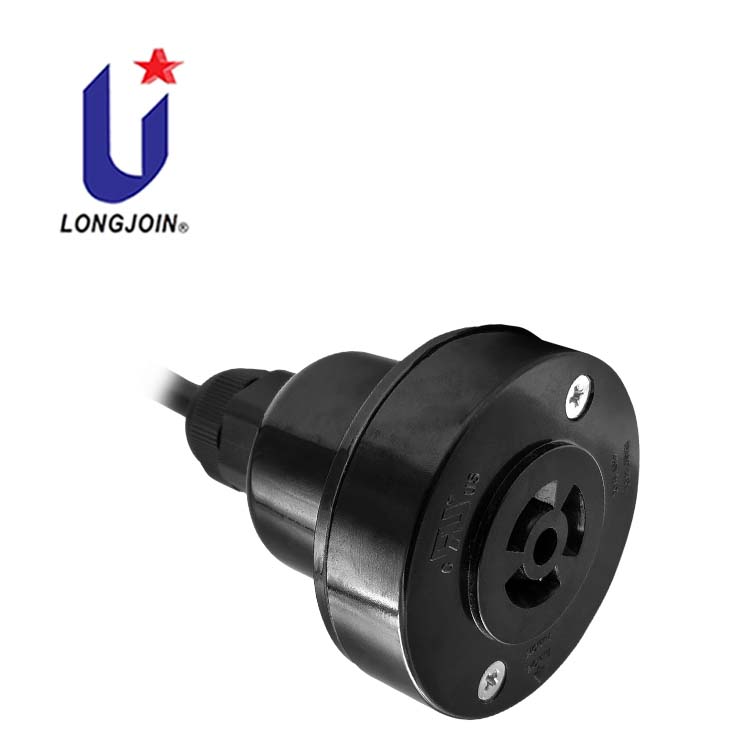

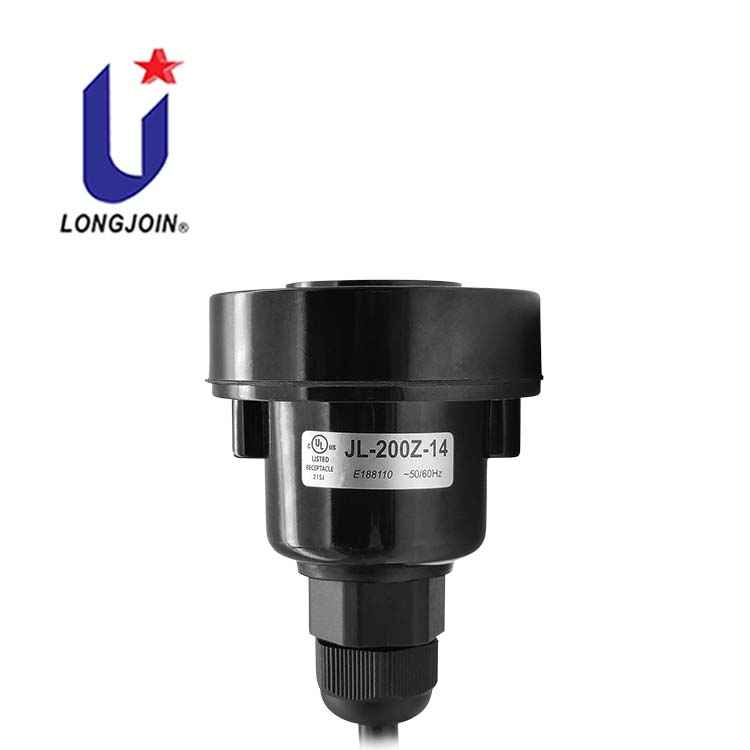

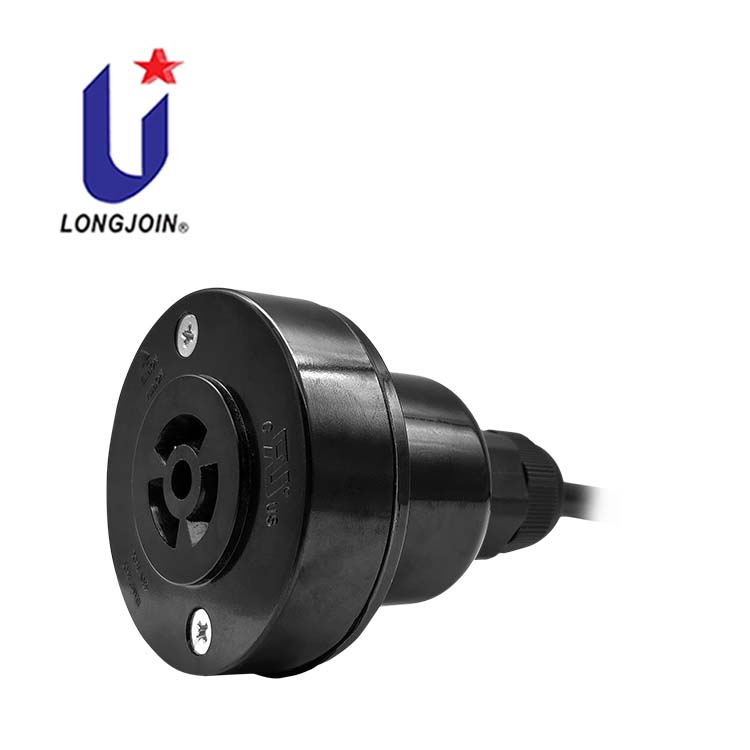

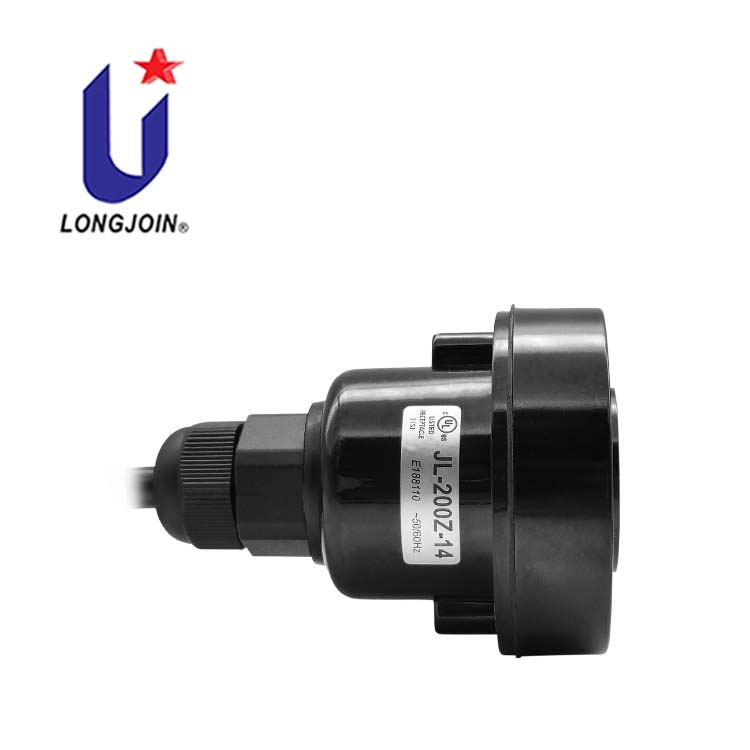

JL-200Z Photocontrol Receptacle (NEMA 3P) for Street Light Control

Professional Photocell Manufacturer here now.

OEM and ODM One-stop service Customized, happy send sample to you confirm quality.

Product Summary

 All the JL-200 series photocontrol receptacles were designed for the lanterns intended to accept a twist-lock photocontrol for power management.

Specifications

FEATURES

• Bakelite body for long-life service
• Silicone gasket for better waterproof

Installation

Disconnect power; wire the receptacle according to the diagram below.

An arrow indicating NORTH on the top of the receptacle is used to assist correct direction.

Adjust the receptacle position if possible. when the fixture is installed in field.

Ordering Information

JL-200X 14 06 -N1 -RS –C –L2

1: model number：

X=lantern assemble purpose, no rear cover

Z=wall mount purpose, with rear cover and zinc nut

2: Lead Rating

14=14 AWG, 105ºC rated

14G=14 AWG 150 ºC rated

12=12 AWG, 105ºC rated

12G=12 AWG 150 ºC rated

16=16 AWG, 105ºC rated

16G=16 AWG 150 ºC rated

18=18 AWG, 105ºC rated

18G=18 AWG 150 ºC rated

3: Lead Length

06 = 6 inches (150 mm) Customizable

4: N1=3 mm Silicone gasket (for JL-200X only)

N12=12 mm Silicone gasket (for JL-200X only)

5: R=Outlet cover with O-ring (option for JL-200X only)

RS= Outlet cover with O-ring & Sealed with glue (option for JL-200X only)

6: C=Outdoor wiring cable (option for JL-200X only)

CWP= Outdoor wiring cable with waterproof nut (option for JL-200Z only)

null=Appliance wiring wire with zinc nut and gasket

7: L=aluminum bracket

T=Steel bracket

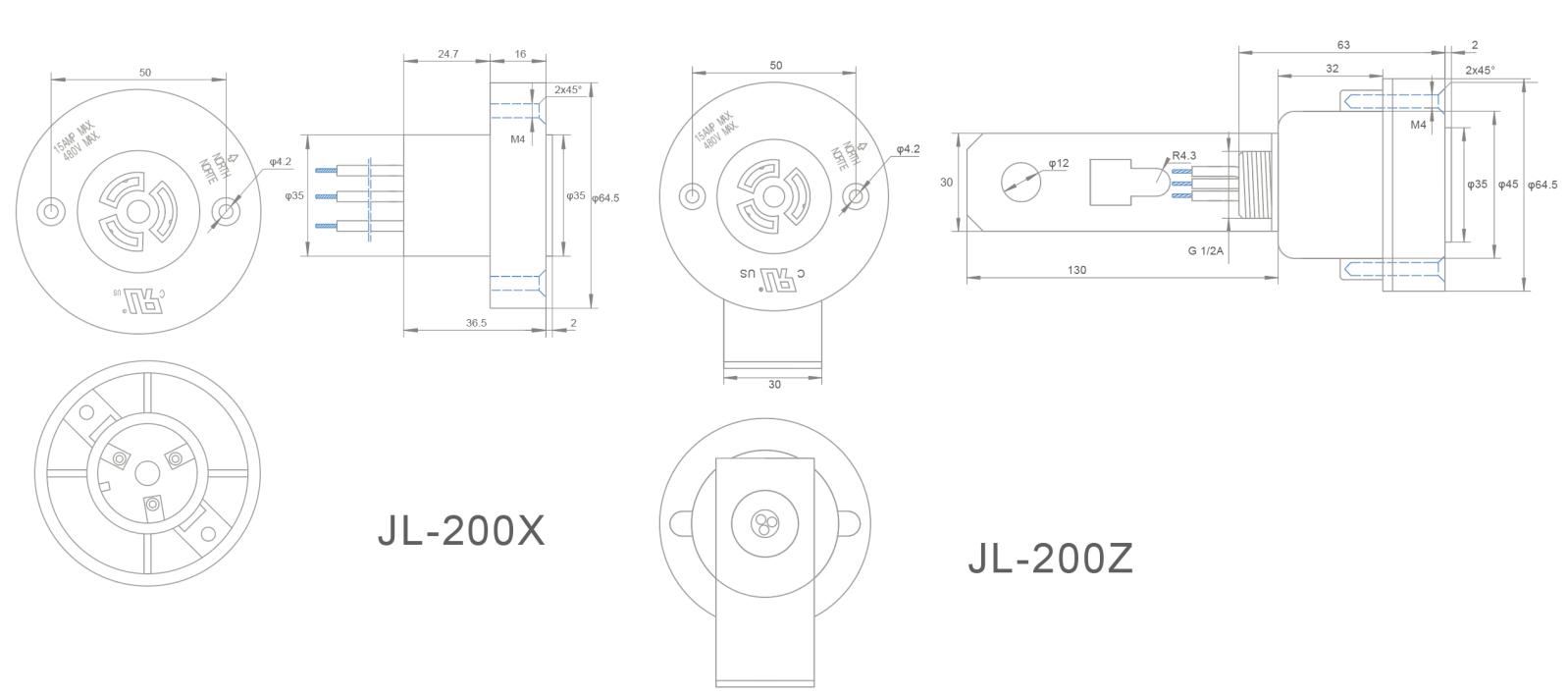

* Refer to bracket assembly drawings below for dimension details

Assemblies

Professional Photocell Manufacturer here now

JL-200Z Selection FAQs

Is a 3P receptacle sufficient for signal dimming?

JL-200Z is presented as a NEMA three-contact power receptacle for a twist-lock photocontrol. Do not assume it provides the additional signal contacts needed by a dimming controller. Confirm the complete controller and contact arrangement.

Do the JL-200X and JL-200Z columns describe the same configuration?

No. The table separates model-specific accessories, leads and optional cable arrangements. Use the JL-200Z column and confirm the actual mounting bracket, rear holder, lock nut and wire option in the order.

Does an optional IP65 cable establish whole-luminaire protection?

No. Confirm the selected cable, controller, gasket, mounting and enclosure conditions. Request applicable electrical and conformity documentation for the exact wire option; the table distinguishes some non-UL lead configurations.

See NEMA receptacles and accessories, photocontrol selection, and selection and installation FAQs.
