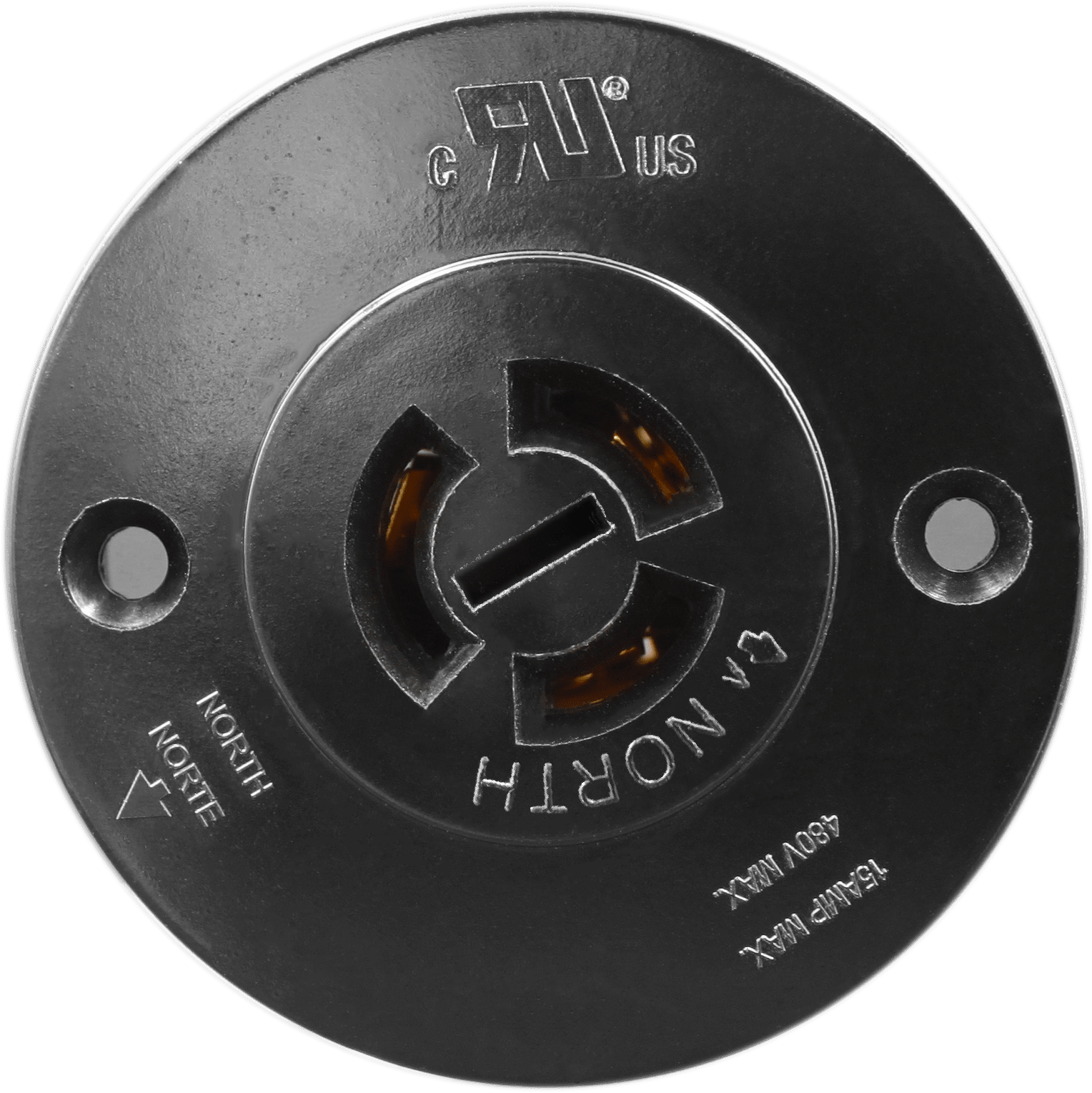

JL-230 Photocontrol Receptacle

PRODUCT  SUMMARYAll the JL-230 series receptacles are intended to be pre-mounted onto those lanterns designed to fit an ANSI C136.10 twist-lock photocontrol.Especially,JL-230F is intended to prevent water entrance through the wire strands.This series also offers 360°rotation limiting feature to conform ANSI C136.10 requirements,in case rotatable.FEATURESJL-230
  • 2or4 screws holes available
  • Bakelite  body  for  long-lifeservice
  • Nylonholderprevents  cracks
Rotatable  forNorthorientationJL-230F
  • Extra  waterproofperformanceenhanced on the basis of above
INSTALLATIONDisconnect power;wire the receptacle according to the diagram in below.An arrow indicating NORTH on the top of the receptacle is used to assist correct orientation. Adjust the receptacle position by loosening screws and fasten them after its redirected.
Need a Quote for JL-230?
Send your target quantity, operating voltage and socket type. Our engineers reply within 24 hours with pricing, MOQ, lead time and the current datasheet for this model.
Request Price & Datasheet →

Technical Specifications

ModelJL-230 (standard) / JL-230F (waterproof)
Rated voltage480 VAC max
Rated frequency50/60 Hz
Load rating15 A
Leads16 AWG / 14 AWG, 6 in (150 mm) min
Ambient temperature−40 °C to +70 °C
Relative humidity96%
Holding coverNylon / PBT
ReceptaclePhenolic (Bakelite) / PBT
ContactH62 brass
GasketSilicone rubber
Ingress protectionIP65 (JL-230F, built-in waterproof ring)
CertificationsANSI C136.10-2010

Values above are taken from the current English datasheet for JL-230. Confirm drawing-level details and any ordering-code options against the latest datasheet before specifying.

JL-230 datasheet & drawings — full electrical ratings, interface tolerances and compliance data for this model.

Sent to your inbox within 24 hours. Request the JL-230 datasheet →
