JL-240F-Waterproof Twist-lock Dimming receptacle (NEMA 7P/5P)

JL-240F-Waterproof Twist-lock Dimming receptacle (NEMA 7P/5P)

Product Summary

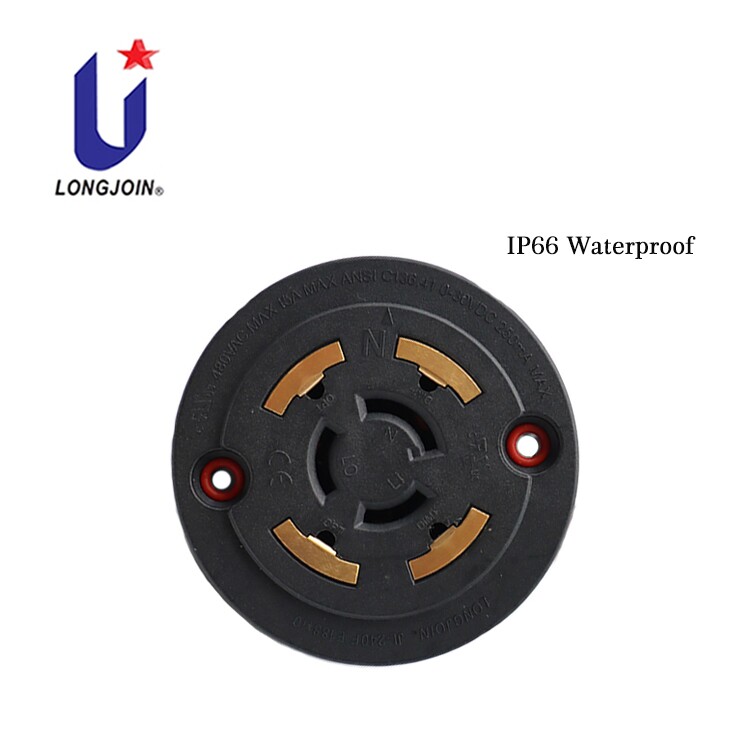

All the JL-240F series photocontrol receptacles were designed for the lanterns thoseintended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This seriesconform newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 2 or 4 wiring leads at rear side for signal connection.Especially, JL-240F offers screw hole O-rings while internally and externally sealed with silicone glue, to approach extreme waterproof feature.

Features

•  Body made from polybutylene terephthalate
•  Contacts made from phosphor bronze
•  Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 588
•  Silicone gasket offered
•  Extra waterproof performance enhanced

Specifications

Model	JL-240F
Applicable voltage range	0–480 VAC
Rated frequency	50/60 Hz
Power loading	15 A
Signal control	0–30 VDC, 250 mA max
Leads	16 AWG / 14 AWG, 6 in (150 mm) min
Ambient temperature	−40 °C to +70 °C
Relative humidity	96%
Outdoor wiring cable	Yes
Body material	Polybutylene terephthalate (PBT)
Contacts	Phosphor bronze
Sealing	Screw-hole O-rings, internally and externally sealed with silicone glue
Certifications	ANSI C136.41-2013

Values above are taken from the current English datasheet for JL-240F. Confirm drawing-level details and any ordering-code options against the latest datasheet before specifying.

Ordering Information

JL-240F X A 14 12 R -7P N1
