JL-240TZA-14 & JL-205C Twist Photo Cell Switch 24V, 12V, 48V DC Long-join

Category Twist lock photocell

Product Details:

JL-240TZA-14 & JL-205C Twist Photo Cell Switch 24V, 12V, 48V DC Long-join

Product Description

JL-240TZA-14 & JL-205C Twist Photo Cell Switch 24V, 12V, 48V DC Longjoin

ANSI C136.10-1996 Standard

1. Optional Built-in Sensor type.

2. Optional Fail on

3. Time-delay off, or Time-delay on.

4. Resist-heat and shock-resistant shell

5. Optional IP54,IP65,IP66,IP67.

JL-240TZA-14 & JL-205C Twist Photo Cell Switch 24V, 12V, 48V DC Longjoin

Model

JL-205A

JL-205B

JL-205C

JL-205-12D

JL-205-24D

JL-207-48D

Rated Voltage

110-120 VAC

220-240 VAC

110-277 VAC

12 VDC

24 VDC

48DC

Applicable voltage range

100-140 VAC

200-260 VAC

105-305VAC

–

Rated Frequency

50/60Hz

Overall Dimensions(mm)

84(Dia)*66

Rated Loading

1000W Tungsten, 1800W Ballast

Power Consumption

1.5VA[STD]/3VA[HP]

On-Off Level

10-20Lx On
30-60Lx Off

Time-delay

3-20s

IP Rating

Optional IP54,IP65,IP67

Housing Color

according to your requirement to design product style.

Housing Feature

Optional Customized heat dissipation double cover

Certificate

CE,RoHS,UL,RoHS other validate certificate

Wiring Diagram

JL-240TZA-14 & JL-205C Twist Photo Cell Switch 24V, 12V, 48V DC Longjoin

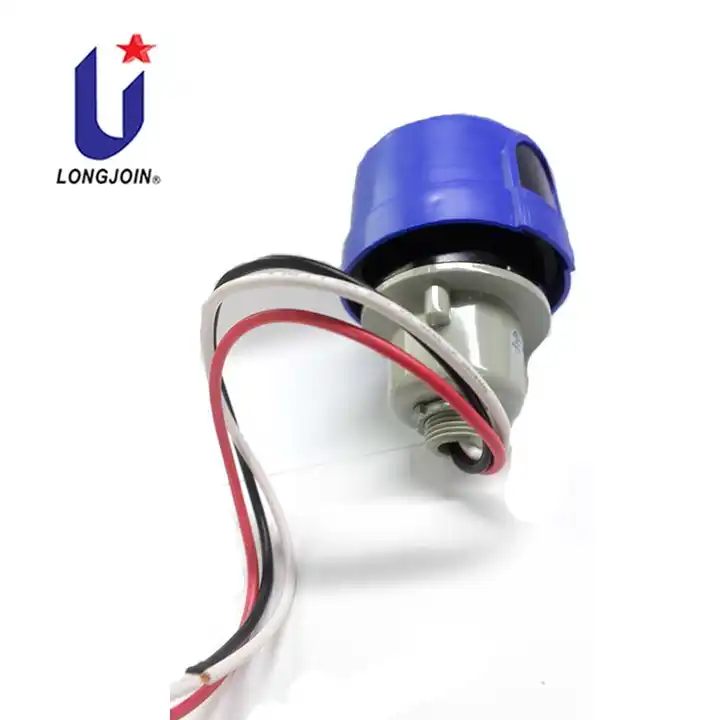

Product Detail

JL-240TZA-14 & JL-205C Twist Photo Cell Switch 24V, 12V, 48V DC Longjoin

Photocontrol Work Principle:

There is a built-in essential on-off switch work mode by LDR resistance value/phototransistor/photodiode and the light sensor will perfectly control turn on at dusk and turn off at dawn.
