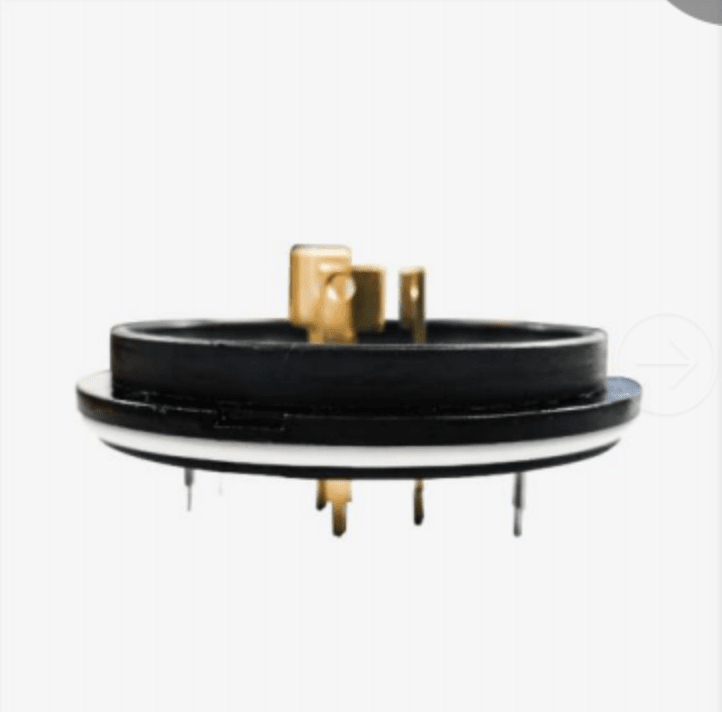

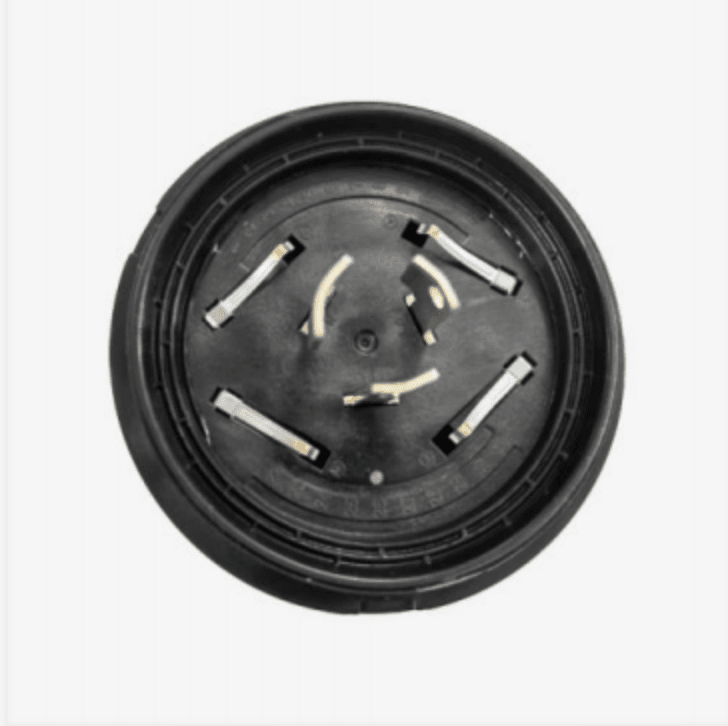

JL-242JV 5 pin 7 pin Base with Waterproof and Breathable Membrane

Product Summary

Shanghai Long-join Wireless Single Lamp Controller Housing Kit is based on 5pin and 7pin NEMA interfaces, and is mainly used for lighting energy-saving control and other built-in electronic controller products. The power connection adopts standard NEMA plugs, which are rotationally locked; The signal connection uses gold plated shrapnel to ensure stable transmission and achieve intelligent control of lighting equipment.

Product Line Draft

Specifications

Model No.	JL-242JV
Rated Voltage	Max 480Vac
Rated Frequency	50/60Hz
Rated Loading	15A
Signal Control	0-30 VDC, 250 mA Max
IP	IP66（Reachable after assembly）
Material Quality	PBT
Ambient Temperature	-40℃~ + 70℃

Comparison of Base Upgrades

JL-241J                                                           JL-242JV  1.Optimization purposeInstall a card bridge to avoid shrapnel distortion   2. Optimization PurposeAdd waterproof and breathable film, balance the pressure difference between the interior and exterior of the light controller. and reduce The product may have water ingress.   3.Optimization PurposeThe cylindrical structure can protect the pins and avoid pin deformation, and the height of the cylinder Flush with the upper shoulder of the lead out end to support the circuit board and ensure the circuitThe board is flat. All pin ends are treated with glue.  4.Optimization PurposeThe waterproof ring material has been changed to silicone rubber, which has good resistance and can. To extend the service life of the gasket.Replace the bottom gasket material with silicone rubber.  Other structural optimizationsOther subtle differences in structure are due to mold optimization considerations and process processing considerations.
