JL-245CZ Zigbee Smart IoT Dimming Photocontrol for JL-246CG

Name: JL-245CZ Zigbee Smart IoT Dimming Photocontrol for JL-246CG
Brand: Long-Join

Category Smart Lighting Controls

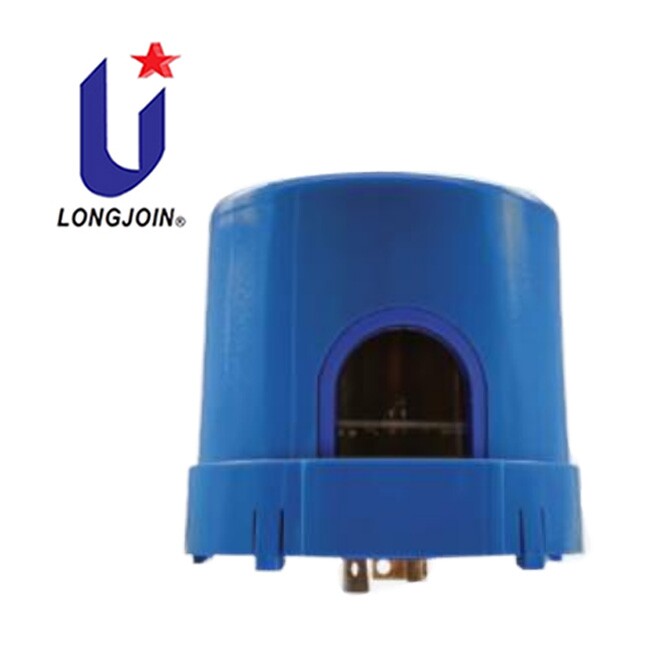

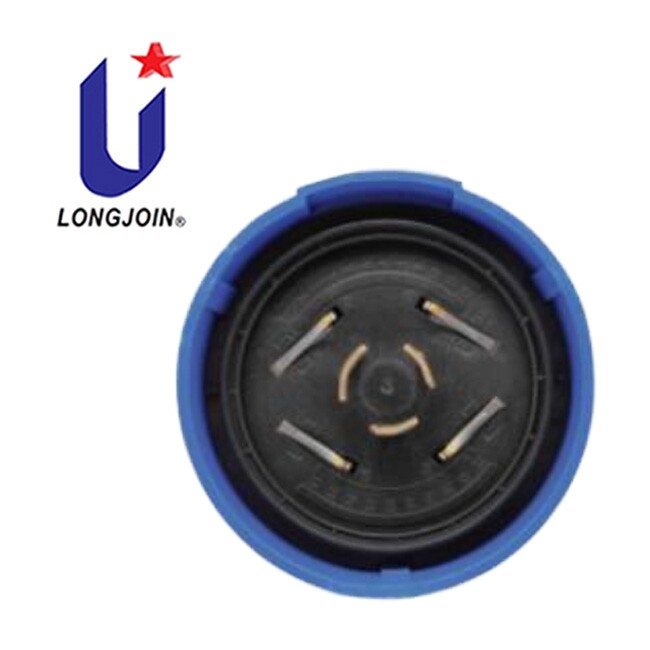

JL-245CZ Zigbee Smart IoT Dimming Photocontrol for JL-246CG - Image 2

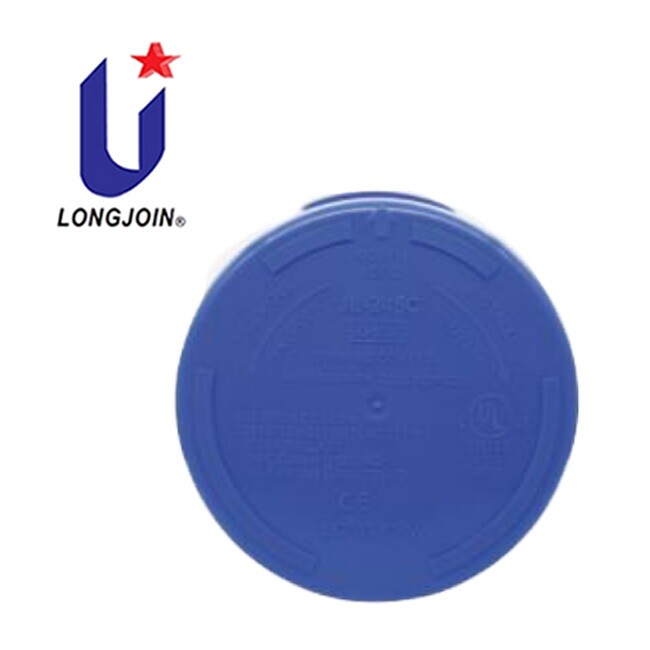

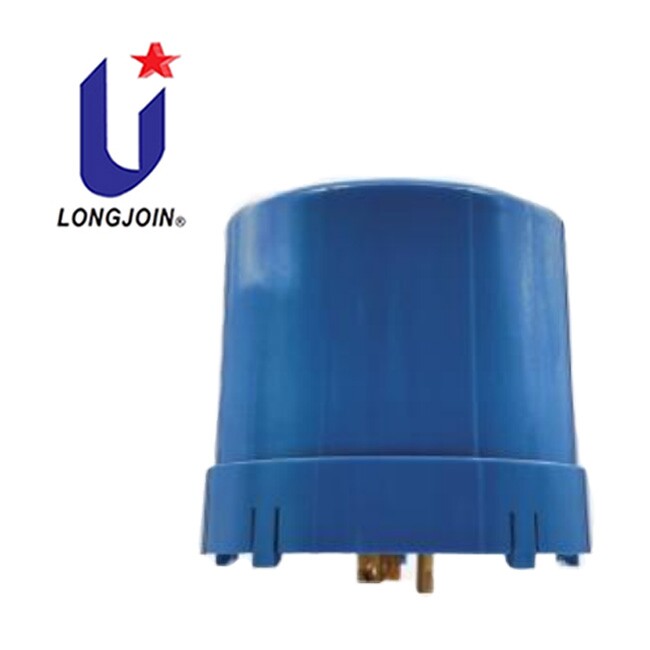

JL-245CZ Zigbee Smart IoT Dimming Photocontrol for JL-246CG - Image 3

Product Details:

JL-245CZ Zigbee Smart IoT Dimming Photocontrol for JL-246CG

Product Summary

JL-245CZ photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on. This product consists a Zigbee communication module to allow its remoted with a smart IoT management system.

Features

ANSI C136.41 Twist-lock
0~10V Dimming
Surge protection level: 6KV/3KA differential mode
Sandwich cover for Long Life
Model-specific supply voltage options
Confirm the IP67 configuration and complete assembly documentation
IR-filtered Phototransistor

Specifications

JL-245CZ key parameters

JL-245CZ — transcribed from datasheet JL-245CZ EN 2304V4
Product type	Smart IoT dimming photocontrol (twist-lock controller), ANSI C136.41 interface
Rated voltage	120–277 VAC; applicable range 105–305 VAC
Rated frequency	50/60 Hz
Dimming output	0–10 VDC
Uplink communication	Zigbee
Downlink communication	Zigbee
Spectral acquisition	350–1100 nm, peak wavelength 590 nm
Rated loading	1000 W tungsten; 1000 VA ballast; 8 A at 120 VAC / 5 A at 208–277 VAC electronic ballast
Operating levels	Turn-on below 100 lx, turn-off above 150 lx (factory setting, adjustable per request)
Power consumption	1.2 W static, 2.4 W dynamic
Ambient temperature	−40 °C to +70 °C
Relative humidity	96%
Fail mode	Fail-On
Housing material	PC, double shell
Surge protection	6 kV / 3 kA, differential mode
Ingress protection	IP67
Factory setting	Remote control + adaptive mode
EMC standards declared	IEC 61000-4-2/-3/-4/-5/-6/-11, IEC 61000-3-2, GB/T 17743-2017, GB/T 2423.10-2008, UL94 V-0

Values as printed in the JL-245CZ EN 2304V4 datasheet. The datasheet carries no certificate number in its certification row; this table is a manufacturer declaration, not a certificate.

Installation

The interface of the product itself has been mistake-proof designed, just tighten the photocontrol

directly to the rotatable/fixed base, as shown in Figure clockwise after insertion.

Follow the model-specific installation instructions. A qualified installer must confirm whether live replacement is permitted for the exact assembly; do not infer permission from the twist-lock interface alone.
Users can input the photocontrol ID information to the smart lighting management system through WEB interface or by scanning QR code with its specific WeChat “UM9900 Smart Light Pole” public account.

Initial Testing

It is normal for the photocontrol to take several seconds to turn off when first installed.
To test “turn on” during daytime, cover its eye with black tape or other opaque material.
Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
Test will take approximately 2 minutes.

JL-245CZ Selection FAQs

Which controller does JL-245CZ pair with?

JL-245CZ is described as the Zigbee sub-controller used with JL-246CG. Confirm the supported firmware, Zigbee configuration, commissioning method and management platform for the complete system before ordering.

Does JL-245CZ provide its own LTE gateway?

Do not assume it does. This product description identifies Zigbee communication; the paired JL-246CG is presented as the gateway/collector model. Confirm the network architecture and cellular service requirements separately.

What should I verify for 0-10V dimming?

Confirm the compatible LED driver interface, supply voltage, NEMA receptacle/contact arrangement, load and inrush rating, dimming behaviour and complete outdoor sealing configuration against the exact model documentation.

Explore smart lighting controls, NEMA receptacles and accessories, and selection and installation FAQs.
