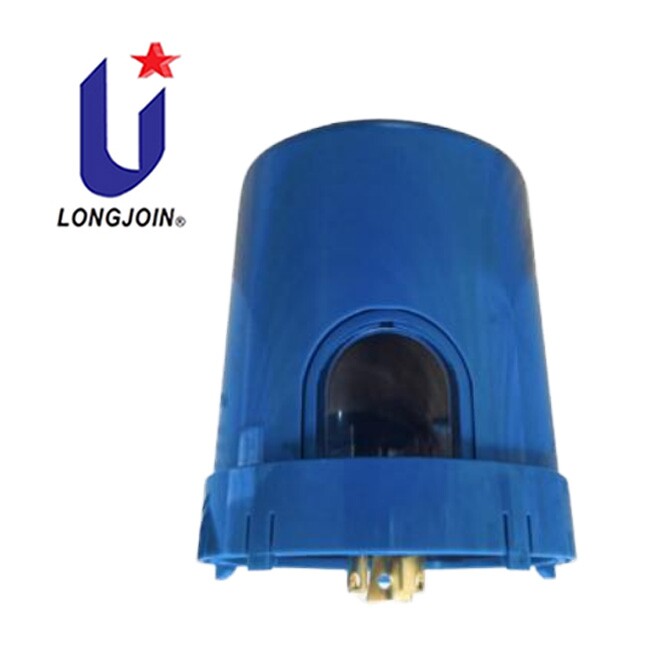

JL-246CG key specifications: rated input 120–277VAC; operating range 105–305VAC; frequency 50/60Hz; dimming output 0–10VDC; LTE Cat.1 uplink and Zigbee downlink. The existing specification chart lists Fail-On operation, an ambient range of −40°C to +70°C and IP54/IP65/IP67 configurations. Confirm the ordered sealing configuration, LED driver compatibility and destination-market cellular bands. Certification logos in the chart require the applicable model-specific listing, declaration and supporting reports; they do not establish approval of every supplied configuration.
JL-246CG photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on. This product consists a Zigbee communication module as well as a LTE communication module to allow its Zigbee group remoted with a smart IoT management system.
Features
| Model | JL-246CG |
|---|---|
| Product type | Smart IoT dimming photocontrol with LTE gateway / collector function; ANSI C136.41 twist-lock |
| Rated voltage | 120–277 VAC |
| Applicable voltage range | 105–305 VAC |
| Rated frequency | 50/60 Hz |
| Dimming output | 0–10 VDC |
| Wireless communication, uplink | LTE Cat.1 |
| Wireless communication, downlink | Zigbee |
| Spectral acquisition range | 350–1100 nm, peak wavelength 590 nm |
| Rated loading | 1000 W tungsten; 1000 VA ballast; 8 A at 120 VAC / 5 A at 208–277 VAC electronic ballast |
| Operating levels | Turn-on below 100 lx, turn-off above 150 lx, or per client request |
| Power consumption | 1.2 W static, 10 W dynamic |
| Ambient temperature | −40 °C to +70 °C |
| Related humidity | 96% |
| Fail mode | Fail-On |
| Shell material | PC+PC, double shell |
| Surge protection level | 6 kV / 3 kA, differential mode |
| IP level | IP54 / IP65 / IP67 depending on the ordered configuration |
| Factory settings | Remote control + adaptive mode |
| Hot swap | Datasheet describes the controller as hot-swappable; the installer still confirms whether live replacement is permitted for the exact assembly |
| Overall dimensions | 97 mm overall height, Φ81.5 mm mounting base, 16 mm collar (dimension drawing on this page) |
| FCC | Marked in the datasheet |
| Standards listed in the datasheet | IEC 61000-4-5, -4-2, -4-3, -4-6, -4-4, -4-11; IEC 61000-3-2; GB/T 17743-2017; GB/T 2423.10-2008; UL94-V0 |
| Code segment | Meaning |
|---|---|
| JL-246CG | Base model. LTE SIM card slot is offered with this model. |
| 06 | 6 kV lightning protection. |
| F / H / K | Enclosure colour — F = blue, H = black, K = grey. |
| -IP67 | Ingress protection configuration. |
| Lead colour | Function |
|---|---|
| Brown / Orange | Reserved — not used for dimming in the wiring diagram on this page |
| Violet | DIM+ (0–10 V+) |
| Pink / Gray | DIM− (0–10 V common) |
Values as printed in the JL-246CG EN 2306V6 datasheet. FCC appears in the datasheet as a mark and the standard list is the datasheet criterion row; no certificate number is printed there, so this table reports the declaration rather than a certificate. The LTE bands, SIM arrangement and IP configuration must be confirmed against the destination market and the ordered part number before a project is quoted.

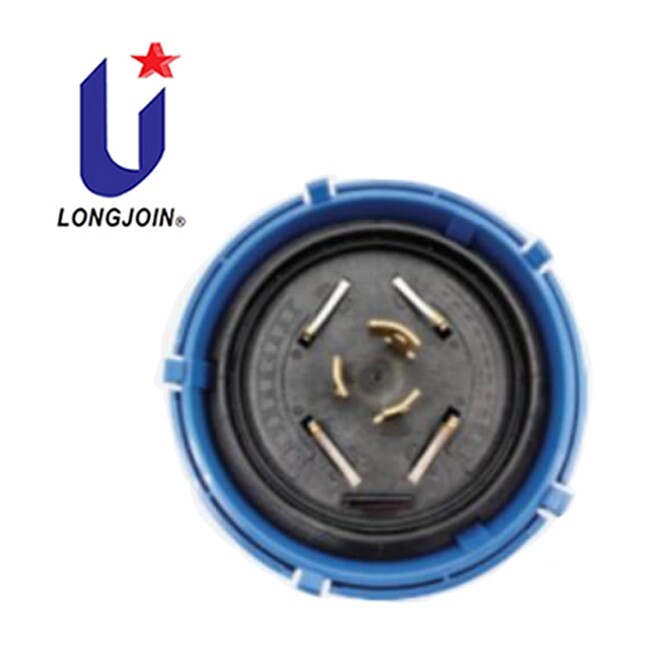

The interface of the product itself has been mistake-proof designed, just tighten the photocontrol directly to the rotatable/fixed base, as shown in Figure clockwise after insertion.
Initial Testing
The product description identifies Zigbee and LTE communication modules, with JL-246CG acting as the gateway/collector for the Zigbee group used with JL-245CZ. Confirm the supported firmware, group configuration and management platform before deployment.
Confirm the supported LTE bands, SIM or service plan, coverage, antenna arrangement and platform connectivity for the destination market. Do not assume that one cellular configuration works in every country or network.
No. Confirm the ANSI C136.41 receptacle/contact arrangement, supply voltage, 0-10V driver interface, load and inrush rating, commissioning method and complete outdoor sealing configuration for the selected system.
