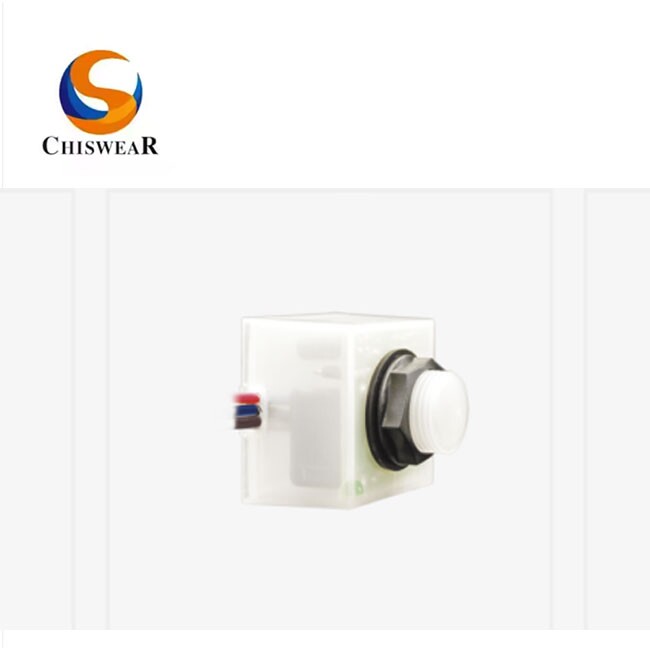

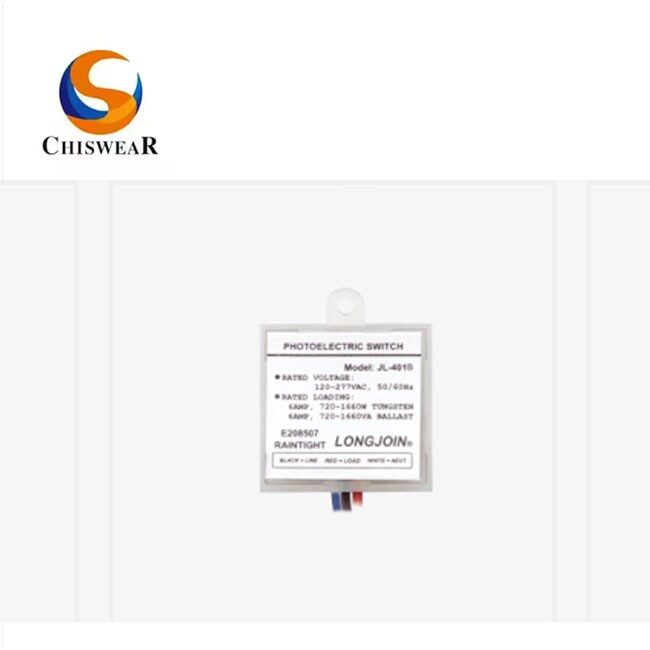

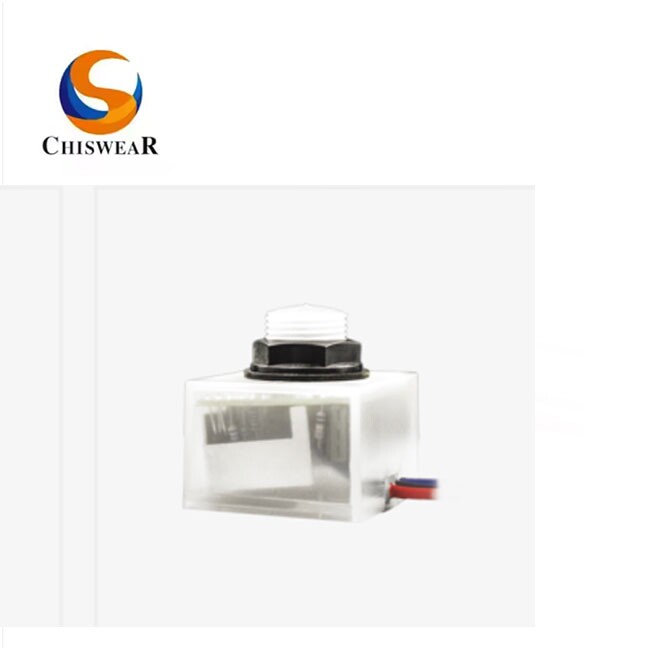

JL-401C/401CR

Wire-In Electronic Photocontrol

Product SummaryThe photocontrol JL-401B is applicable to control the garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level. Further, a preset 10-30 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the night time.SpecificationsFeatures

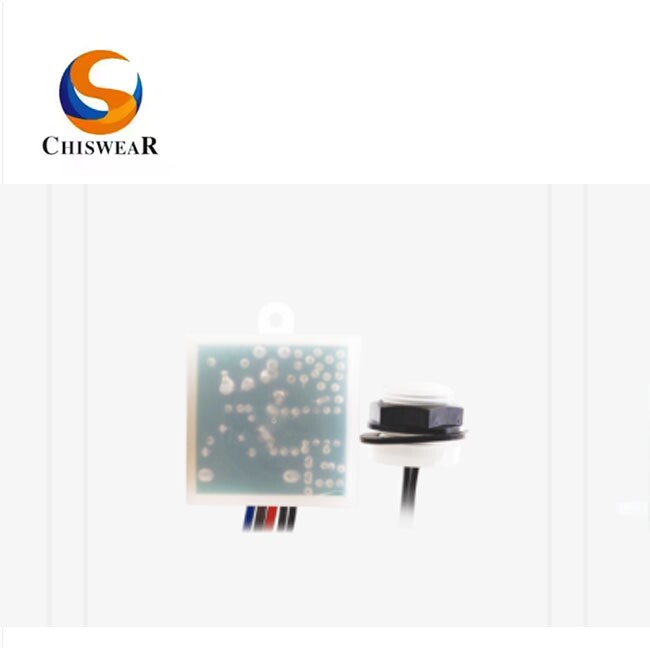

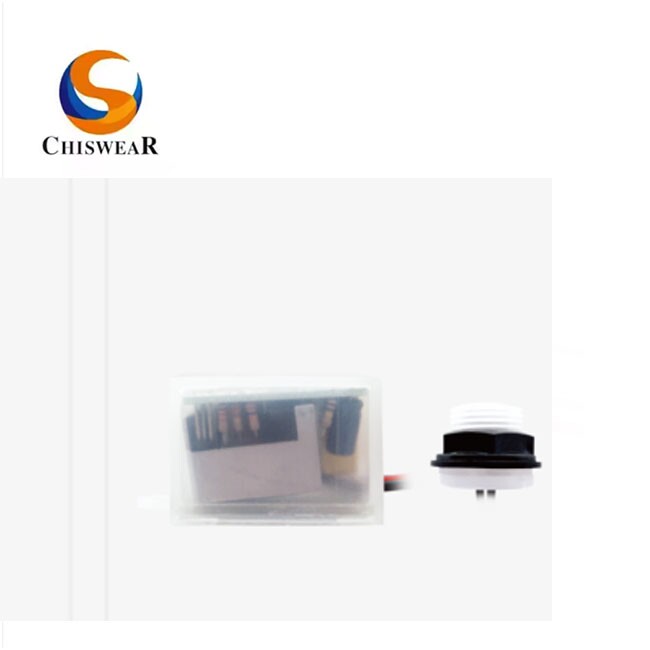

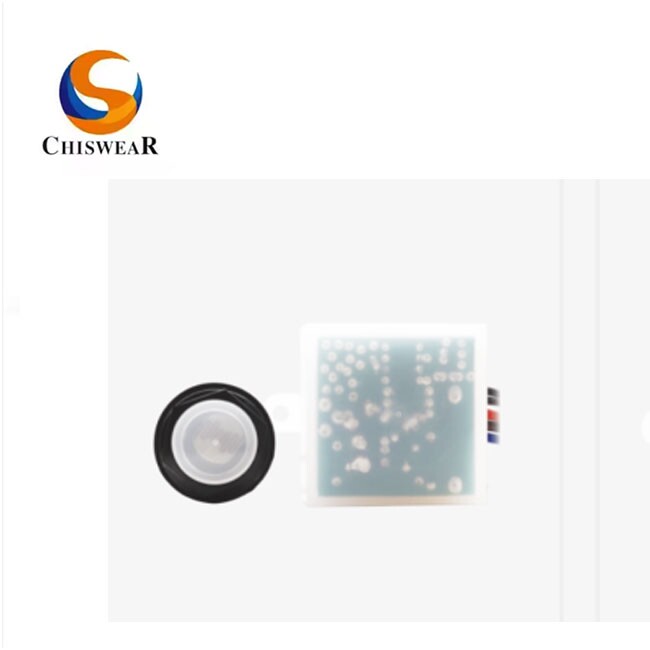

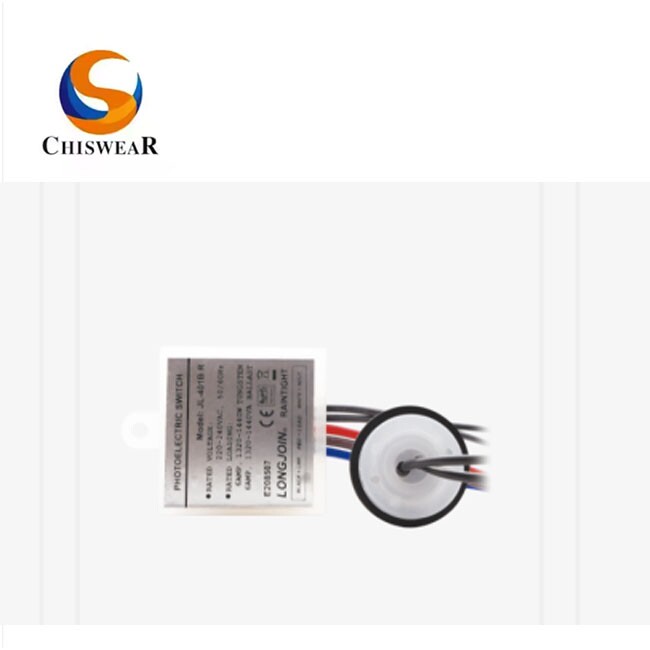

• Sensor Separated for flexible allocations inside fixture(JL-401BR only)
• 3~10s Time-delay  preventing redundant turning-off caused byheadlights or lightning
• Waterproof Lens

Specifications

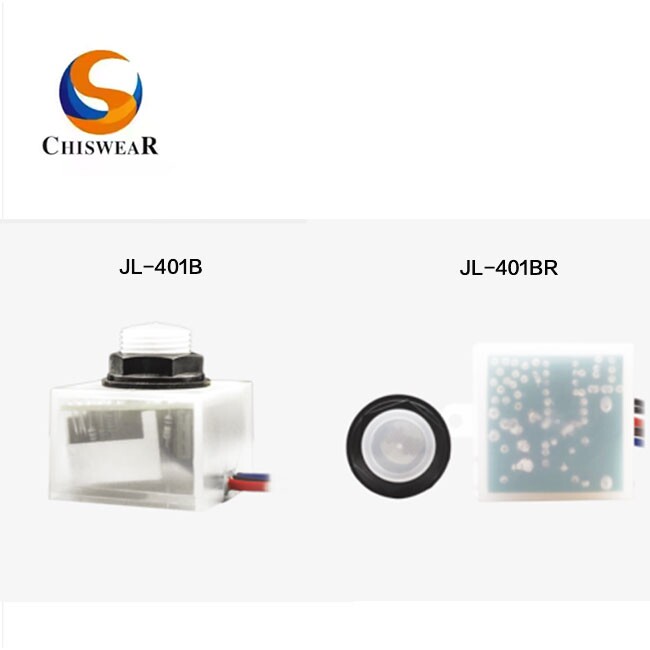

Model No.	JL-401B	JL-401BR
Rated Voltage	220~240VAC
Rated Frequency	50/60Hz
Sensor Type	CdS photocell
Rated Loading	6A  TUNGSTEN、6A  Ballast
Power Consumption	5W Max.
Operate Levels	10~20Lx   Turn-On / 25~35Lx   Turn-Off
Fail Mode	Fail-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG#18,AWM1015
Surge Protection	40J/1750A (MOV)
Certifications	CE.UL.ROHS

InstallationDisconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night. Initial Testing

• It is normal for the SWITCH to take fewminutes to turn off when first installed.
• To test “turn on” during daytime, cover its eye with opaque material.
• Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
• Test will take approximately 2 minutes.

* Operation of this switch is not affected by weather, moisture or temperature changes.
