JL-401C/401CR Direct Wire-In Electronic Photocontrol

Product Details:

JL-401C/401CR

Wire-In Electronic Photocontrol

Product Summary The photocontrol JL-401C is applicable to control the garden lighting, passage lighting anddoorway lighting automatically in accordance with the ambient natural lighting level.Further, a preset 10-30 seconds time-delay might avoid redundancy operation due tospotlight or lightning during the night time.Features  Direct wire-in 10-30s Time delay for luminaires protectionSpecificationsInstallation3Disconnect power, place screw thread of the photocontrol in knockout hole and fasten withrubber gasket and lock-nut. Wire according to the diagram in below. Do not install thephotocontrol with the Photocell facing artificial or reflected light. This may cause the unit tocycle on and off at night.Initial Testing  It is normal for the SWITCH to take few minutes to turn off when first installed. To test “turn on” during daytime, cover its eye with opaque material. Do not cover with finger because light traveling through fingers may be great enough tokeep the switch open. Test will take approximately 2 minutes.* Operation of this switch is not affected by weather, moisture or temperature changes.
Need a Quote for JL-401C?
Send your target quantity, operating voltage and socket type. Our engineers reply within 24 hours with pricing, MOQ, lead time and the current datasheet for this model.
Request Price & Datasheet →

Technical Specifications

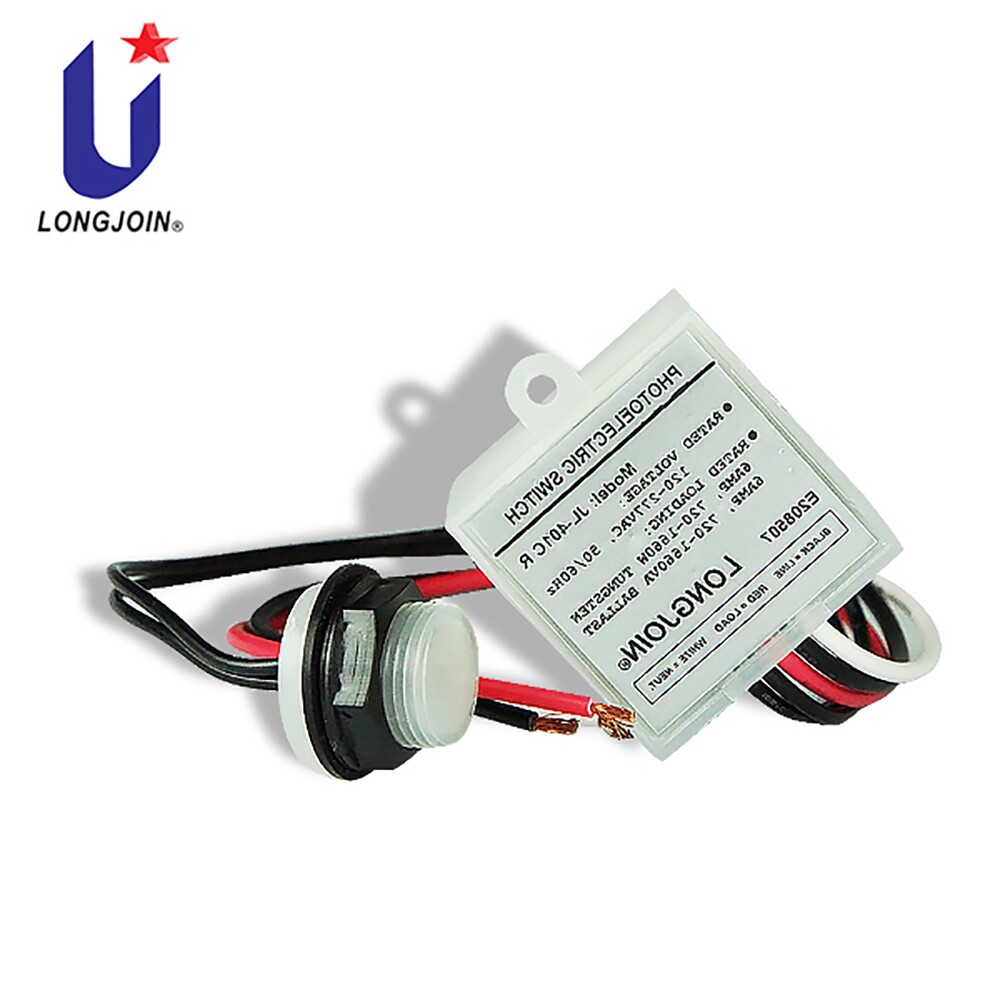

ModelJL-401C (sensor on body) / JL-401CR (remote sensor)
Rated voltage120–277 VAC
Available voltage range105–305 VAC
Rated frequency50/60 Hz
Rated loading6 A tungsten; 6 A ballast
Power consumption5 W max
Sensor typeCdS photocell
Operating levels10–20 lx turn-on / 25–35 lx turn-off
Failure modeFail-off
Surge protection40 J / 1750 A (MOV)
Ambient temperature−40 °C to +70 °C
Relative humidity96%
Leads18 AWG, AWM 1015
Ingress protectionIP54 (no silicone seal) / IP65 (complete silicone-gasket sealing)

Values above are taken from the current English datasheet for JL-401C/401CR. Confirm drawing-level details and any ordering-code options against the latest datasheet before specifying.

JL-401C datasheet & drawings — full electrical ratings, interface tolerances and compliance data for this model.

Sent to your inbox within 24 hours. Request the JL-401C datasheet →
Tell us your fixture voltage, receptacle type and estimated annual quantity, and we will attach the correct variant table and OEM options.
