JL-412C(R)

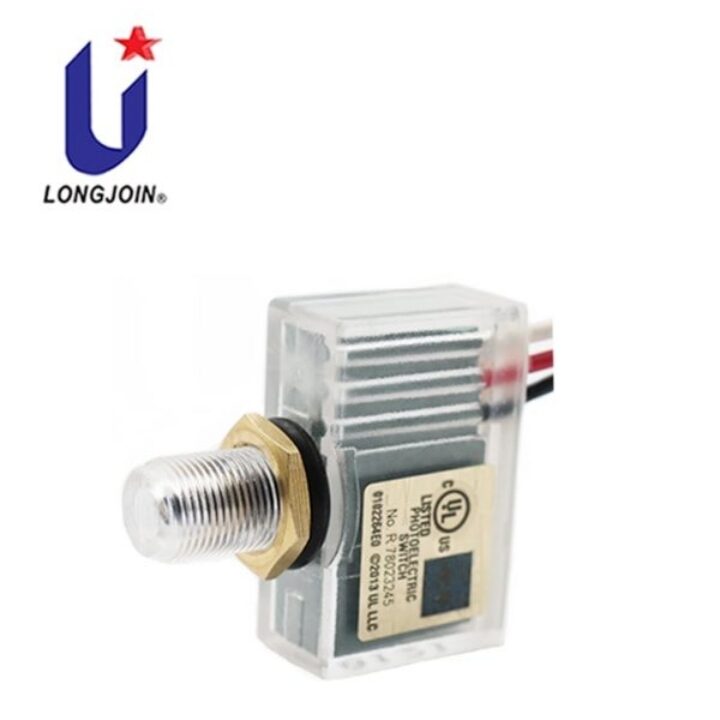

Miniature Improved Electronic Direct Wire-In Photocontrol

JL-412C

JL-412CR

Product Summary

The photocontrol JL-412C(R) is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature, while a miniature profile supports most smaller fixtures.

Further, a preset 3-10 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the night time

This product has been listed by UL LLC and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.

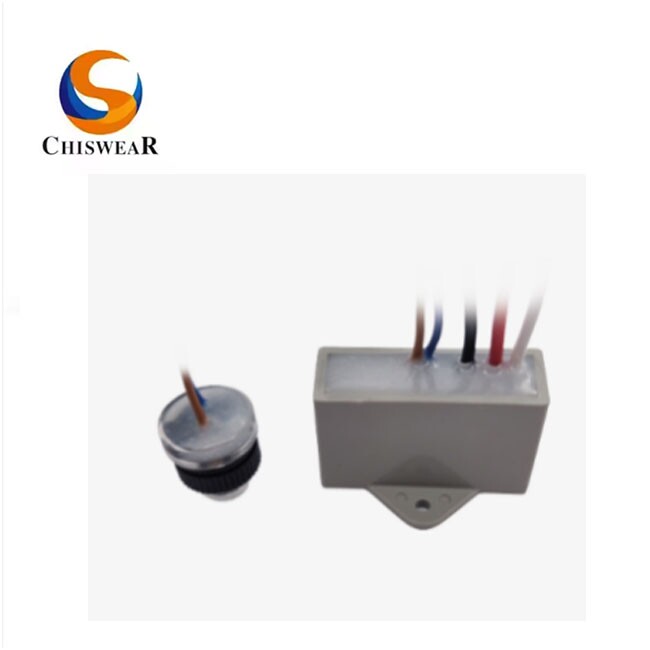

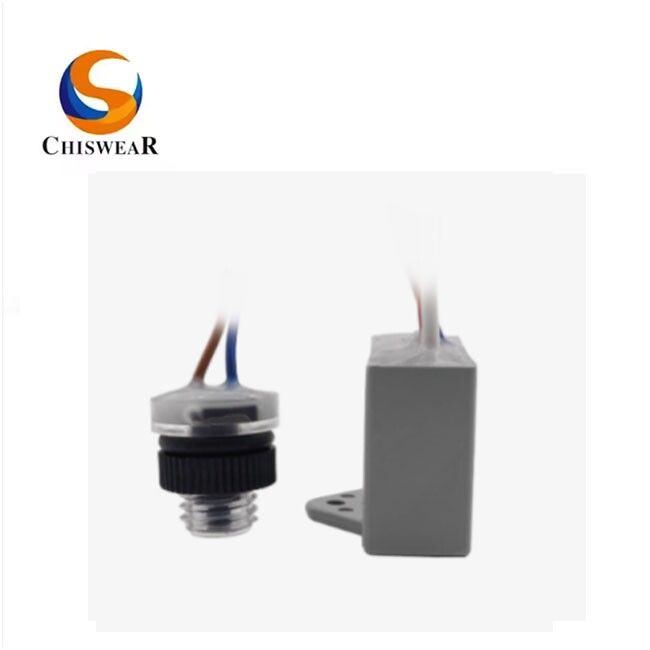

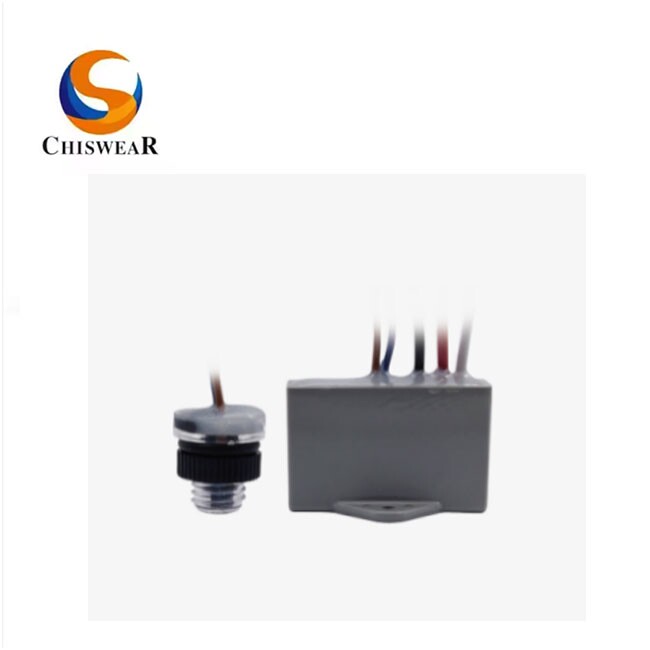

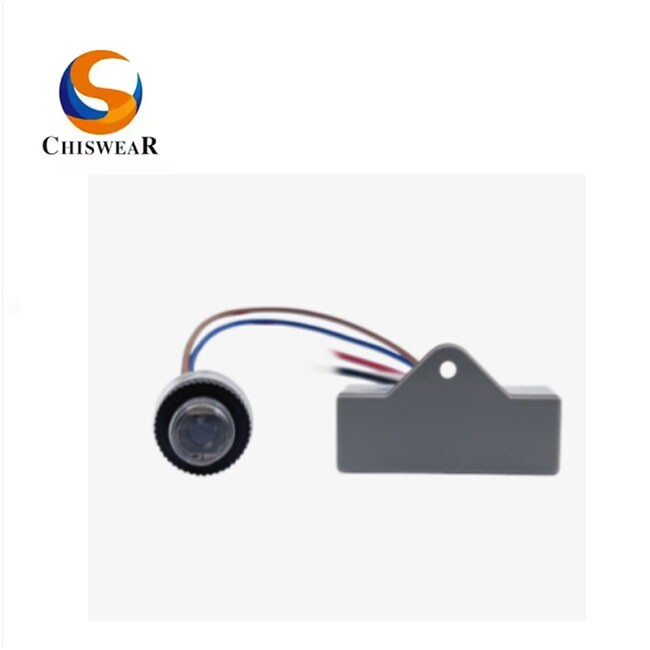

Its R version provides a separated sensor assembly.

Specifications

Installation

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

Initial Testing

 It is normal for the SWITCH to take few seconds to turn off when first installed.

 To test “turn on” during daytime, cover its eye with opaque material.

 Test will take approximately 1 minutes

Ordering Information

JL-412C 09 R09 M

JL-412C

09

R09

M

2: lead length

09=09″

Customizable

3: Sensor Position

R=sensor separated

Null=sensor on body

9=9″sensor lead length

4: M(option) =UL holographic label
