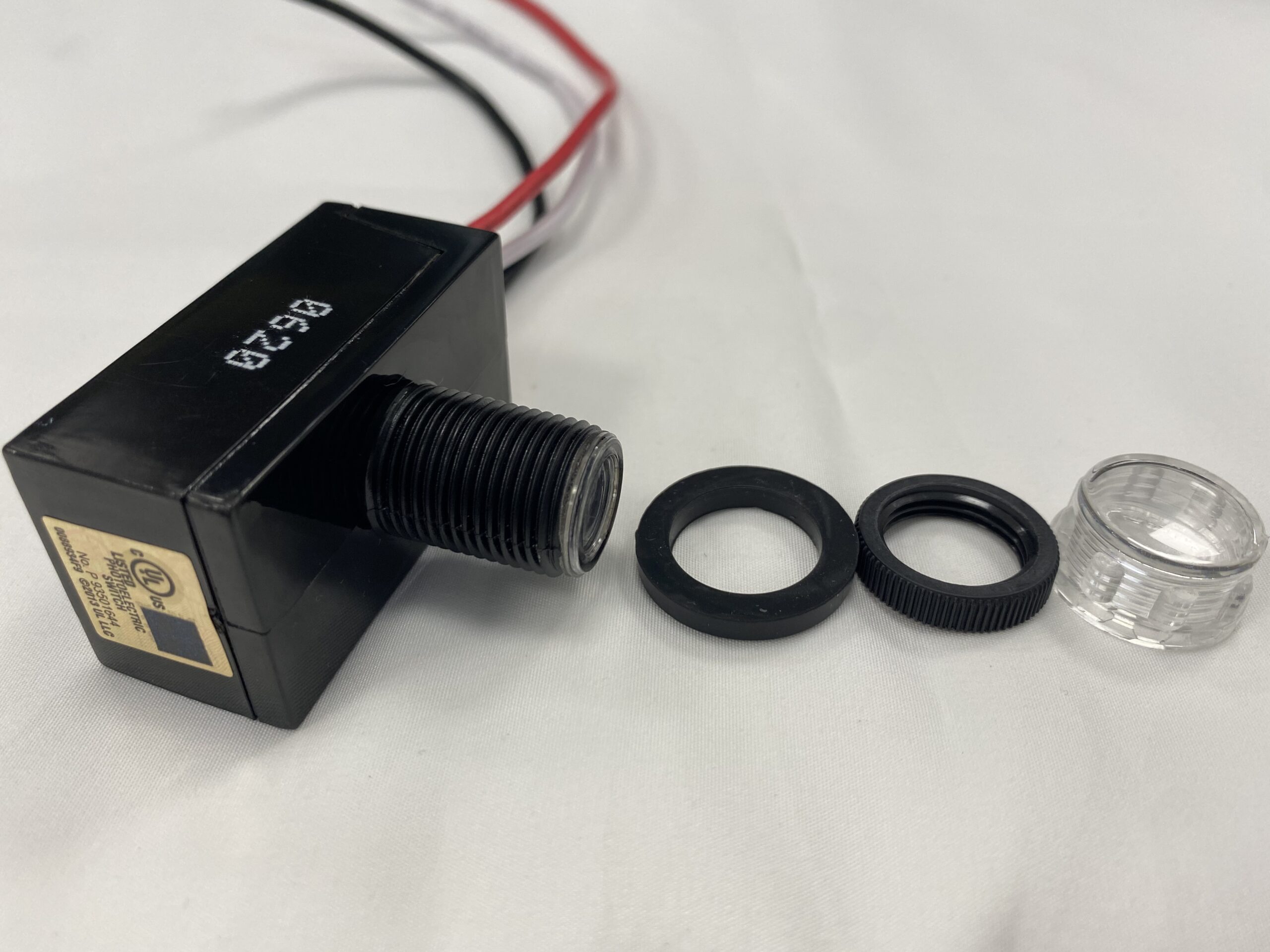

Product Summary The photocontrol JL-413C is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.This product is designed with electronic circuits. Its quicker response with time delay of 3-10 seconds offers easy-to-test feature. Especially, model JL-413C provides a higher power factor performance.Further, a preset 3-10 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time
Specifications
Initial Testing It is normal for the SWITCH to take few seconds to turn off when first installed.To test “turn on” during daytime, cover its eye with opaque material.Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.Test will take approximately 1 minutes.Ordering Information JL-413CM 18 04 L M N H W BC F -IP54| Model | JL-413C |
|---|---|
| Rated voltage | 120–277 VAC |
| Rated frequency | 50/60 Hz |
| Rated loading | 1000 W tungsten; 1200 VA ballast at 120 VAC, 1800 VA ballast at 208–277 VAC; 8 A e-ballast at 120 VAC, 5 A e-ballast at 208–277 VAC |
| Power consumption | 0.5 W max |
| Operating levels | 10–20 lx turn-on / 30–80 lx turn-off |
| Ambient temperature | −40 °C to +70 °C |
| Relative humidity | 96% |
| Leads | 16 AWG, AWM 1015, 4 in (100 mm) min |
| Failure mode | Fail-off |
| Surge protection | 460 J / 10 000 A (MOV) |
| Rainproof cap | Optional |
| Ingress protection | IP54 / IP65 available |
Values above are taken from the current English datasheet for JL-413C. Confirm drawing-level details and any ordering-code options against the latest datasheet before specifying.
