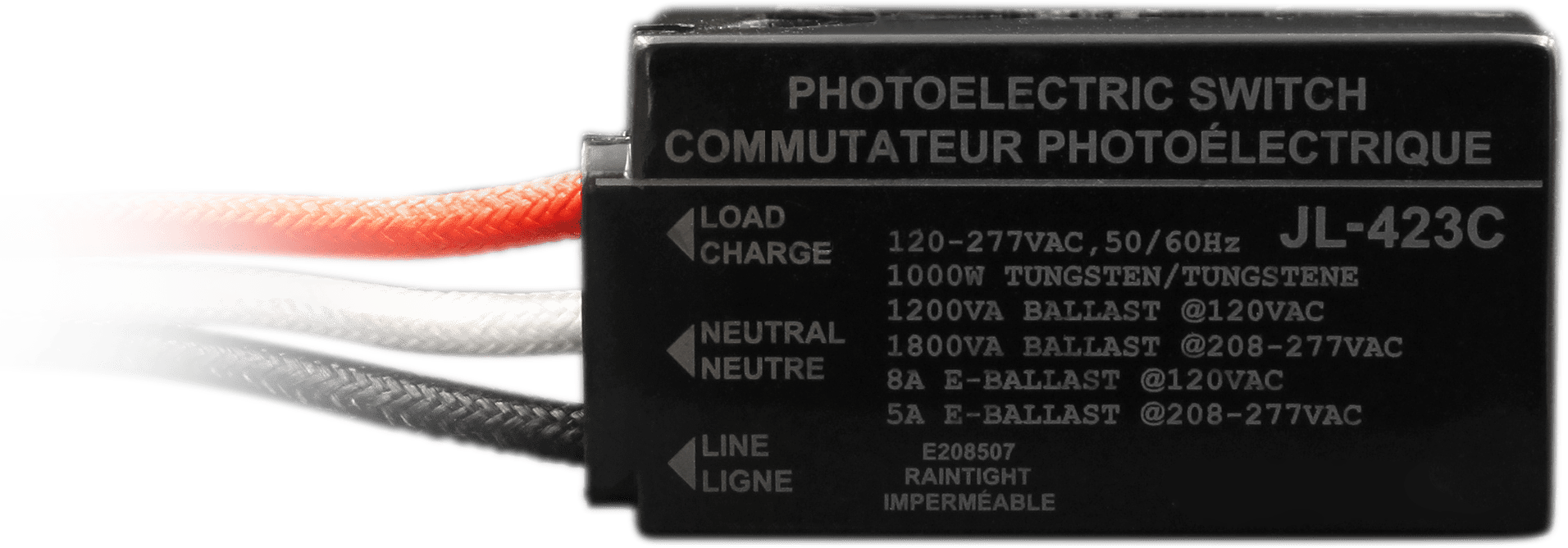

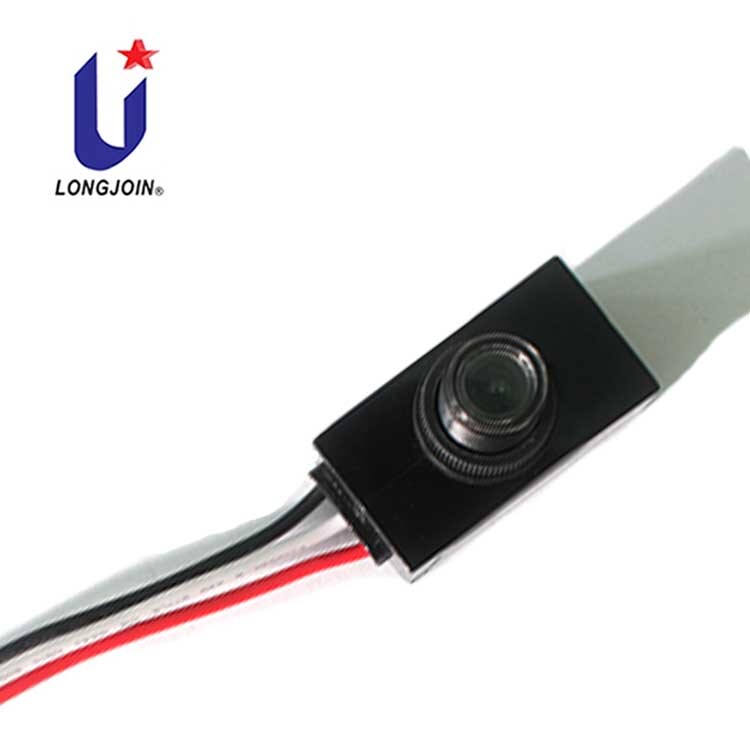

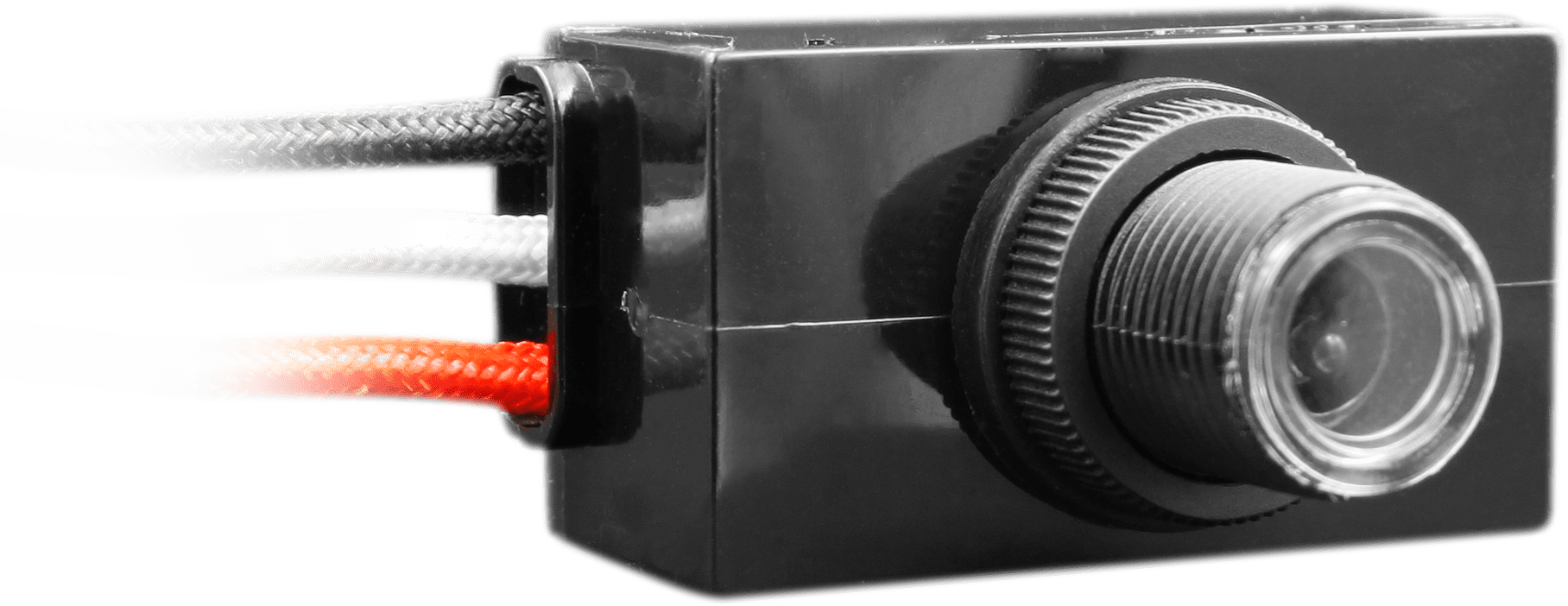

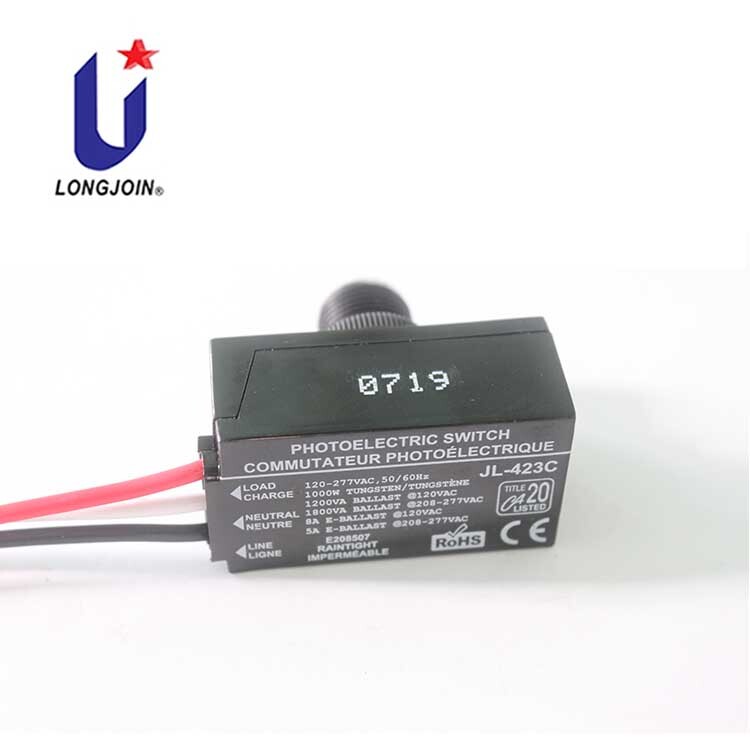

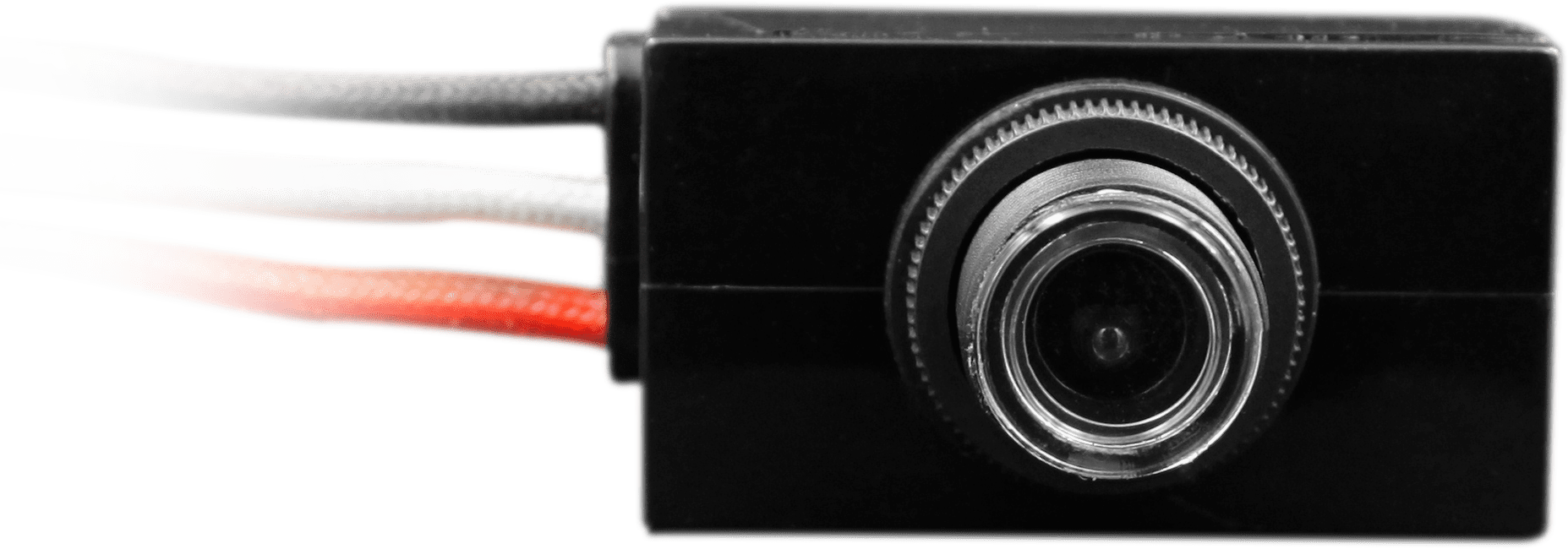

JL-423 Direct Wire-In Digital Photocontrol (Zero cross +FCC)

Product Summary

The photocontrol JL-423 series is applicable to control the passage lighting and doorway lighting automatically in accordance with the ambient lighting level.This product is designed with electronic circuits with MCU incorporated. Its quicker response with time delay of 5 seconds offers easy-to-test feature while avoidingredundancy operation due to spotlight or lightening during night time. Especially, it supports midnight sleeping and reburning before dawn.Optional Z version has zero-cross technology built-in for longer work life, while conforms FCC regulations.Further, JL-423CM provides surge protection feature up to 235J/5000A.

Features

.     UL773A direct wire-in.     90~305V Multi-Volts.     Fail-On / Fail-Off Modes Available.     Surge Arrester Built-in Available.     IR-Filtered Phototransistor Sensor.     Midnight Sleeping Available.     IP54 / IP65 protections Available.     Instant / Delayed Switching Available

Specifications

Model	JL-423C / JL-423CM / JL-423CZ / JL-423CMZ
Rated voltage	120–277 VAC
Available voltage range	90–305 VAC
Rated frequency	50/60 Hz
Rated loading	1000 W tungsten; 1200 VA ballast at 120 VAC, 1800 VA ballast at 208–277 VAC; 8 A e-ballast at 120 VAC, 5 A e-ballast at 208–277 VAC
Power consumption	0.5 W max
Sensor	IR-filtered phototransistor
Operating levels	16 lx turn-on / 24 lx turn-off (customisable)
Time delay	5–10 s (customisable); midnight sleeping and pre-dawn reburn supported
Ambient temperature	−40 °C to +70 °C
Relative humidity	96%
Leads	16 AWG, AWM 1015, 4 in (100 mm) min
Failure mode	C4: fail-on / C5: fail-off
Surge protection	460 J / 10 000 A (M version, MOV)
Zero crossing	Z versions
Ingress protection	IP54 / IP65 available
Certifications	UL 773A direct wire-in; FCC (Z version)

Values above are taken from the current English datasheet for JL-423. Confirm drawing-level details and any ordering-code options against the latest datasheet before specifying.

Initial Testing

.     It is normal for the SWITCH to take few seconds to turn off when first installed..     To test “turn on” during daytime, cover its eye with opaque material..     Do not cover with finger because light traveling through fingers may be great enough to keep the switch open..     Test will take approximately 1 minutes.
