JL-428

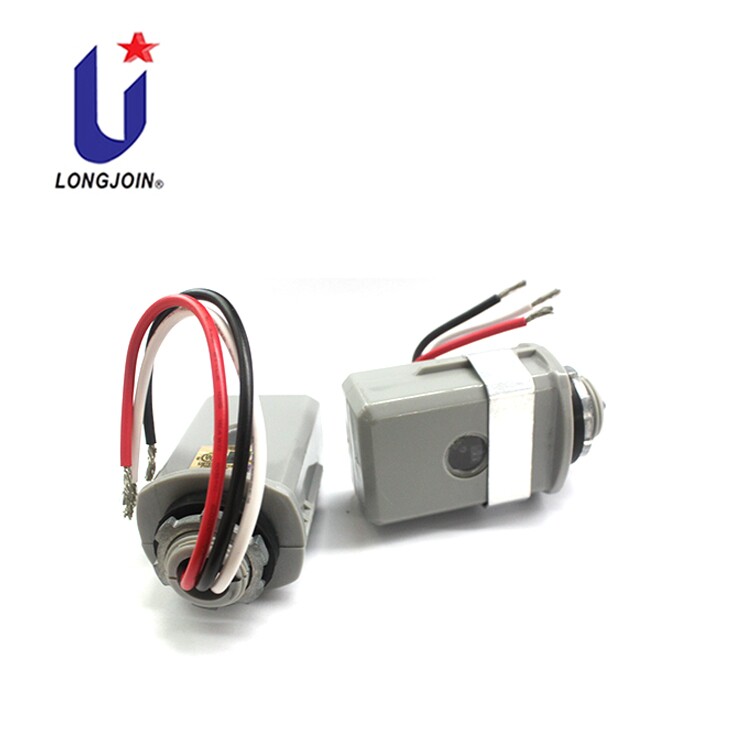

Conduit Wire-In Digital Photocontrol (Zero cross +FCC)

Product Summary

The photocontrol JL-428 series is applicable to control the passage lighting and doorway

lighting automatically in accordance with the ambient lighting level.

This product is designed with electronic circuits with MCU incorporated. Its quicker response with time delay of 5 seconds offers easy-to-test feature while avoidingredundancy operation due to spotlight or lightening during night time. Especially, it supports midnight sleeping and reburning before dawn.

Optional Z version has zero-cross technology built-in for longer work life, while conforms FCC regulations.

Further, JL-428 provides surge protection feature up to 235J/5000A

Features

 UL773A direct wire-in

 90~305V Multi-Volts

 Fail-On / Fail-Off Modes Available

 Swivel Incorporated

 IR-Filtered Phototransistor Sensor

 Midnight Sleeping Available

 IP54 / IP65 protections Available

 Instant / Delayed Switching Available

Specifications

Certifications: UL ,CE, ROSH

Installation

Disconnect power, remove junction box cover, place the photocontrol in knockout hole and fasten with locknut. Wire according to the diagram in right hand.Do not install the photocontrol with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off

Initial Testing

 It is normal for the SWITCH to take few seconds to turn off when first installed.

 To test “turn on” during daytime, cover its eye with opaque material.

 Do not cover with finger because light traveling through fingers may be great enough to

keep the switch open.

 Test will take approximately 1 minutes.

Ordering Information

JL-428CZ 16 04 M （16 05 24 05 T3.0）-CA20

Assemblies
