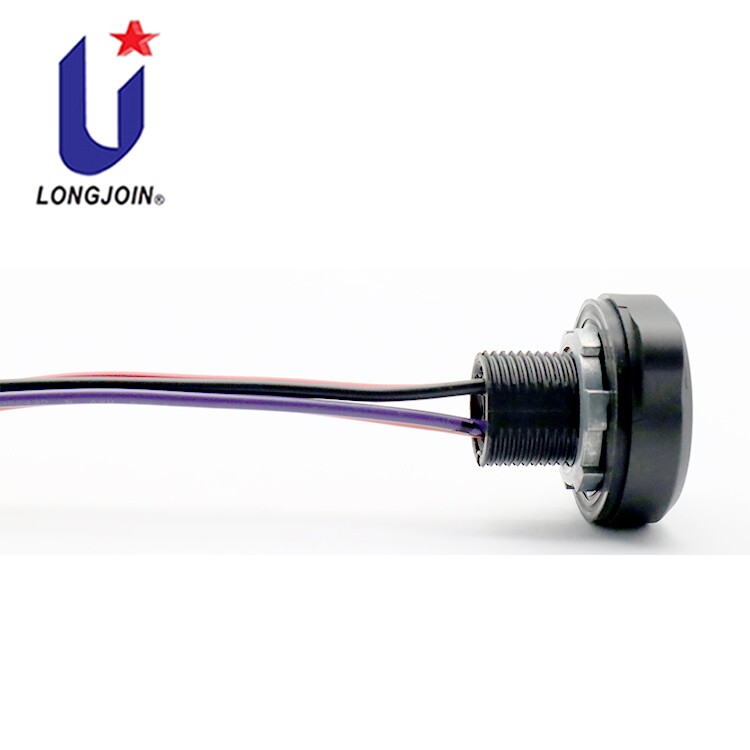

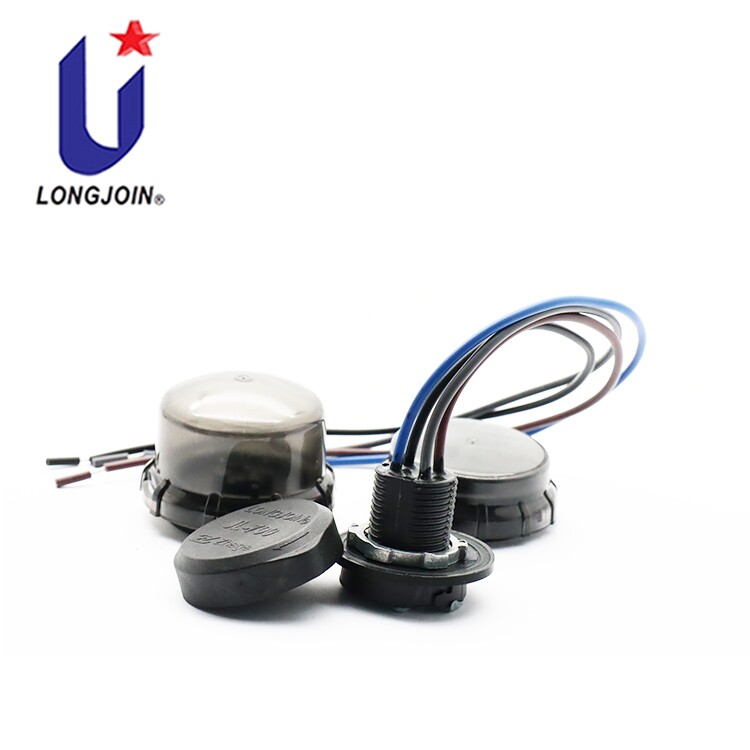

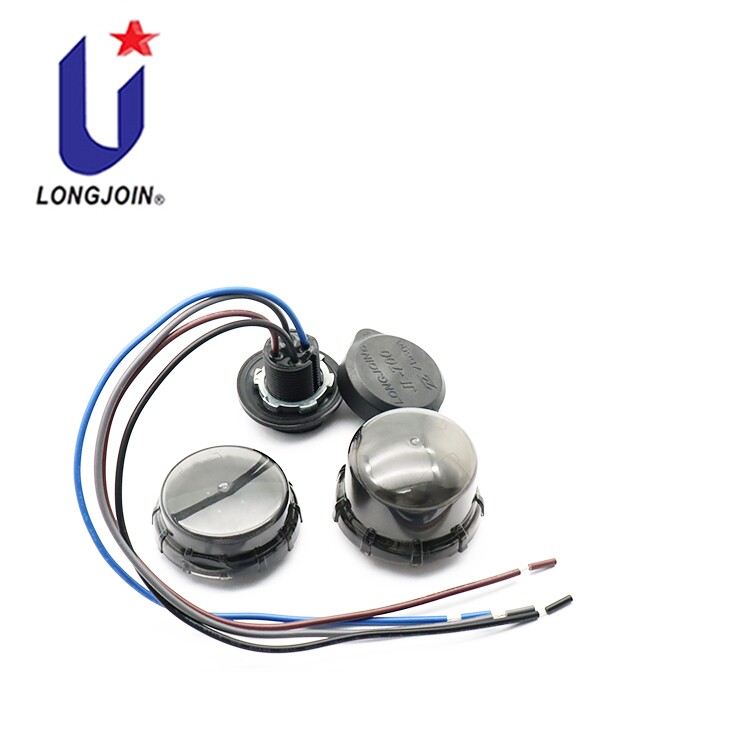

JL-700 Zhaga Socket Long-join

Category Zhaga Series

Product Details:

JL-700 Zhaga Socket Long-join

Product Summary

Jl-700 locking socket meets the requirements of Zhaga Book 18 standard interface (Z-LEX-R、Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

JL-700 Zhaga Socket Longjoin

Model			JL-700
Body Dimensions (mm)			Φ30*29.4
Protection Cap Dimensions (mm)			Φ45.2*10.8
Gasket Dimensions (mm)			36.8*2.5
Lock Nut Material			Zinc alloy
Gasket Material			PBT+phenolic
Body Protection			PBT
IP Rating			a base with dome to reach IP66
IK09 Capable Test			Pass
Can Add configure Connector			Dali 2.0 / 0-10 dimming
Application			1.Outdoor Luminaires – Wall Packs – Parking Lots – Walkway. 2.Street and Area Lighting 3.photocell control

Conductor specification: # 20 conductor has UL certification

Line color definition

* Default Version

– Port 1 (Brown): 24Vdc

– Port 2 (Gray): DALI (or DALI based protocol) – /common ground

– Port 3 (Blue): DALI (or DALI based protocol) +

– Port 4 (Black): General I/O

* Optional Version

– Port 1 (RED): Positive (+) pole of the 12 or 24 V power supply

– Port 2（BLACK）

Negative (-) pole for the [DALI] protocolNegative (-) pole for the 12 or 24V power supply (contact 1)

Ground for General Digital I/O (contact 4)

– Port 3 (VIOLET): Positive (+) pole for the [DALI] protocol

– Port 4 (YELLOW): General Digital I/O (greater than 7V)

JL-700 Zhaga Socket Longjoin

Lead Definition

Pin 1 (brown): 24VDC

Pin 2 (gray): DALI-/GND

Pin 3 (blue): DALI+

Pin 4 (black): reserved I/0 port

JL-700 Zhaga Socket Longjoin

Features

Standardized interface defined in Zhaga Book 18
Compact size allowing greater flexibility in luminaire design
Advanced sealing to achieve IP66 with no mounting screws
Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface

Flexible mounting position, upwards, downwards and sideways facing
Integrated single gasket that seals to both luminaire and module that minimizes assembling time

JL-700 Zhaga Socket Longjoin

Model	JL-710
Zhaga Input Parameter
Rated voltage range	100-277VAC
Rated Voltage Range(Max)	85-305VAC
Maximum steady-state input AC current	30mA (under 220VAC)
I2t	0.009A2s (under 220VAC)
Conversion efficiency	80%(under 220VAC)
Zhaga Output Parameter
Output voltage	24V DC
Stable voltage adjust precision	+/-2%
Rated current	0.21A
Rated power	5W
Noise	150 mVp-p
Ripple	100 mVp-p
Linear adjustment rate	+/-0.12%
Load adjustment rate	+/-5%
Po	<0.12W

Features:

• Comply with ZHAGA BOOK18 standard

• IP66 (cooperate with our ZHAGA light controller)

• Support top surface installation/side installation/upside-down installation

• Small size, suitable for installation on all kinds of lamps

• The cost is much lower than choosing a dimming driver solution with secondary voltage output

• AC wide voltage input (85~305VAC)

• No-load power consumption ≤0.12W

• Comprehensive protection: overvoltage protection/undervoltage protection/overcurrent protection/short circuit protection/ Open circuit protection/over temperature protection

• 0~10V dimming signal switch output

• CLASS II power supply

• Passed RoHs and UL certification

JL-700 Zhaga Socket Longjoin

• The default line length is 152.4mm, and the length can be customized

• The stripping length is 10mm by default, the insulation layer is reserved, and the length can be customized

• AC wire gauge (black wire, white wire): 18AWG /AWM1015, 2.9mm outside diameter including insulation

• Signal wire gauge (purple wire, gray wire): 20AWG/AWM1015, 2.6mm outside diameter including insulation

JL-700 Zhaga Socket Longjoin

The size of the opening is exactly

the same as the standard NEMA

socket, and the lamp with the

opening of the NEMA socket can

also be installed directly JL-710

socket.

JL-700 Zhaga Socket Longjoin

Note: Compared with the NEMA standard light controller, the ZHAGA light controller has a flexible installation position and a smaller volume, which makes the lamp more beautiful. The installation position also reflects the different functions of the ZHAGA light controller. (Light control, microwave, infrared)

Note:In this project case, the combination of zhaga socket and protect cover/ shorting cap can be equivalent to the pre-installation project of NEMA standard smart street light. Retrofit and upgrade traditional street lights.Compared with the street lamp project of the NEMA socket, the zhaga socket has a more beautiful design and saves costs.

Note: We provide different sizes of zhaga light control covers and bases for you to design your own controller.

JL-700 Zhaga Socket Longjoin

Note: This zhaga light control has the same function as the traditional nema street light controller. It controls the switch of the street light through the brightness of the ambient light and reduces the cost.

JL-700 Zhaga Socket Longjoin

Note: This zhaga product design is mainly applied to the principle of infrared micro- wave induction. Through infrared induction of moving objects (cars or people in mo- tion), street light switches are controlled, which not only satisfies lighting needs but also saves electricity costs.

JL-700 Zhaga Socket Longjoin

Note: This series of light controller products are based on the ZHAGA BOOK18 inter-face standard development of smart Hui type rotary lock light controller, adopts light sensor + microwave mobile combined sensor, can output DALI Dimming signal. The light controller is suitable for roads, lawns, courtyards, parks, parking lots, industrial Lighting scenes such as mines.

Note: In this project case combination, choose the zhaga socket to match the zhaga series finished light control. According to the needs of the actual project, choose the nature of the controller (light control, smart or infrared control) to choose the right product. Compared with light control and intelligent control, infrared control is generally suitable for indoors, such as large factories and underground garages. Or it can be combined with intelligent light control to realize the intelligentization of urban lighting.

JL-700 Zhaga Socket Longjoin

Note:The zhaga series of light control products are suitable for roads, lawns, court- yards, parks and other scenes. When the zhaga series products with microwave ind- uction are used more widely, in addition to outdoor lighting areas, including indoor factory areas, garages, offices, corridors and other areas. . Compared with nema standard controllers, zhaga will be combined with smart homes in the future with its compact size and microwave induction function.
