JL-701A Zhaga Book-18 Zhaga Controller

Product Details:

JL-701A

Zhaga Book-18 Zhaga Controller

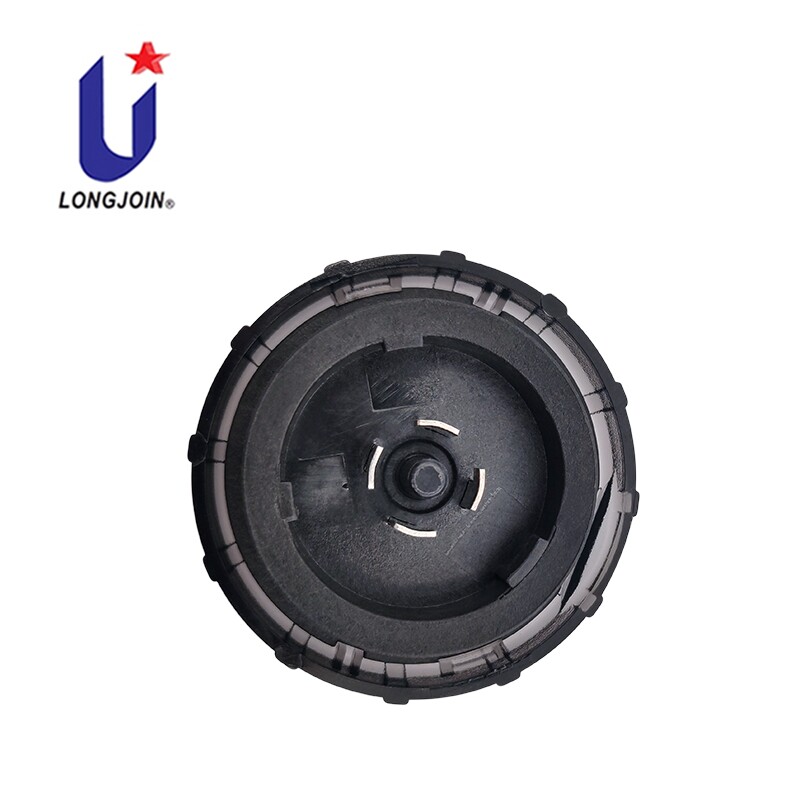

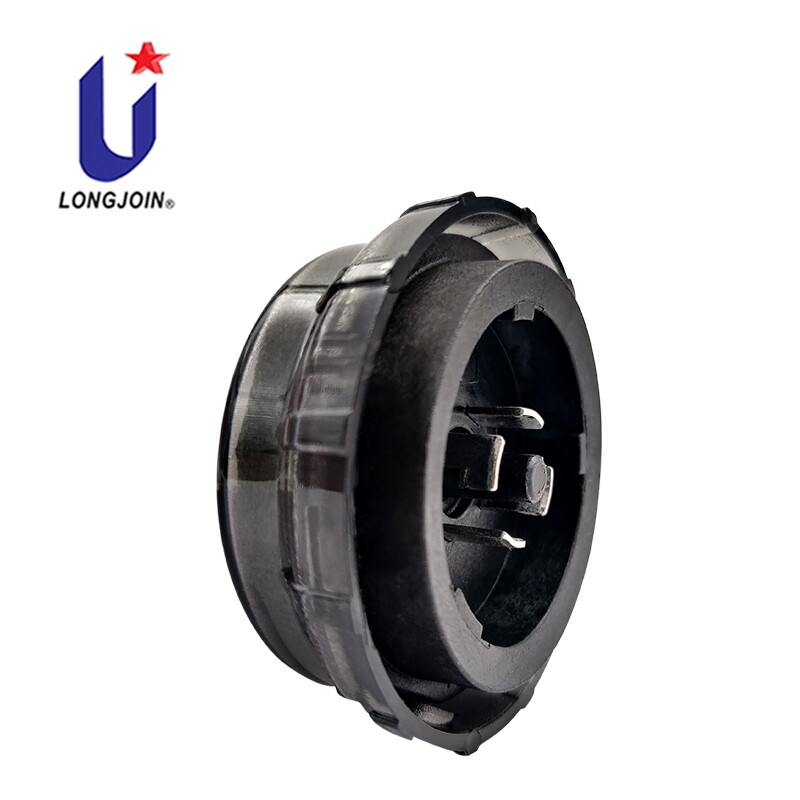

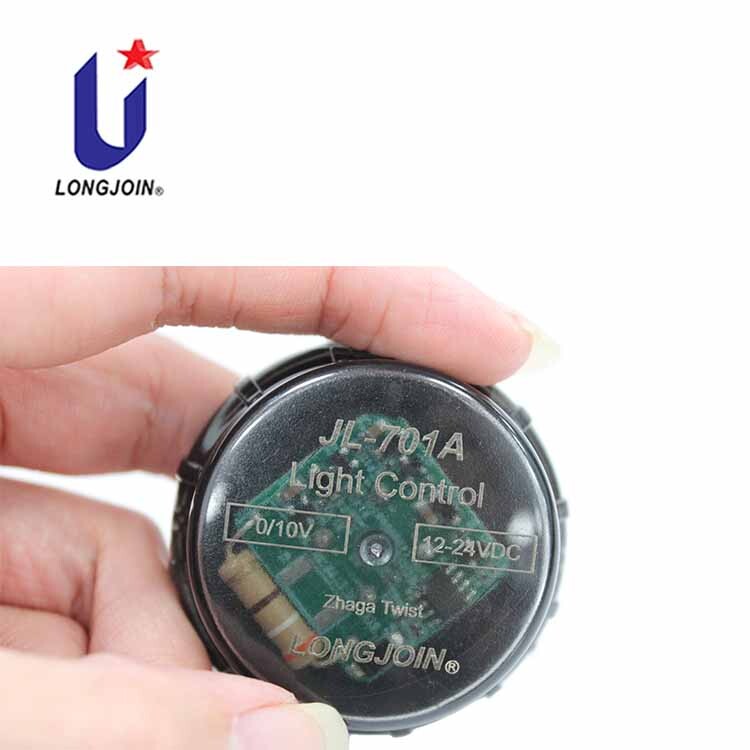

SummaryJL-701A is an ultra-low-cost electronic rotary lock light controller developed based on the ZHAGA BOOK18 interface standard.It can output OV or 10V dimming signal through self-photosensitive.  The light controller is suitable for lighting scenes such as roads,lawns,courtyards,and parks.

Product size chart

Features

  •     ZHAGABOOK18interface standard
  •     ultralow cost
  •     compact size,suitable forinstallation tovarious lamps
  •     1.5mAultralow working current
  •  anti false triggering design of interferencelight source
  •  noloadpower consumption ≤0.12W
  •  environmentalilluminationratio of switch action:1:4
  •  power on:full onby default,55self-test
  • protection grade:up toIP66
ModelJL-701A
Power SupplyRated voltage:12~24VDCRated current:3mA
Power ConsumptionDay:12~24V/1.5mANight:12~24V/1.2mA
Dimming0/10V
Dimming interface0V or suspended (OD gate output
Spectral AcquisitionRange350~1100nm,Peak wavelength 550nm
Turn on Illuminance16Lux(±10)
Turn off llluminance64Lux(±10)
Turn on delay5S
Turn off delay15S
ElectrostaticImmunityStandard:IEC61000-4-2Contact Discharge:±8kV,CLASS AAir Discharge:±15kV,CLASS A
Mechanical VibrationIEC60068-2-6
Flammability LevelUL94-VO
Operating Temperature-40℃~70℃
Storage Temperature-40℃~85℃
Operating Humidity5%RH~99%RH
IP LevelIP66
Life≥8000   h
Certifications
PIN
PINDefinitionType
112~24VDCPower Input
2GND/DALI-Power Input
3DALI+Signal Output
4NCNC
Attentions If the negative pole of the auxiliary power supply of the driver is separated from the negative pole of the dimming intertace,they need to be shorted and connected to the light controller #2.If the light controller is installed very close to the light source surface of the lamp and the lamp power is relatively large,it may exceed the limit of the refiected light compensation and appear to  turn off itself.Because the ZHAGA light controller does not have the ability to cut off the AC power supply of  the driver,the customer needs to select a driver with an output current close to OmA when using the ZHAGA light controller,otherwise the phenomenon that the lamp cannot be completely turned off may occur.As shown in the output current curve of the driver specification,the lowest output     current is close to 0mA.The light controller only outputs the dimming signal to the driver,regardless of the power load of the driver and the light source.Don’t use your fingers to block photosensitive window,it is likely that the lights will fail to turn on because of the light passing through your fingers.AttentionsIf the negative pole of the auxiliary power supply of the driver is separated from the negative pole of the dimming interface,they need to be shorted and connected to the light controller #2.If the light controller is installed very close to the light source surface of the lamp and the lamp power is relatively large,it may exceed the limit of the refiected light compensation and appear to  tum off itself.Because the ZHAGA light controller does not have the ability to cut off the AC power supply of the driver,the customer needs to select a driver with an output current close to OmA when using     the ZHAGA light controller,otherwise the phenomenon that the lamp cannot be completely turned off may occur.As shown in the output current curve of the driver specification,the lowest output  current is close to 0mA.
