JL-712A2B Zhaga Book-18 Controller
Product Details:

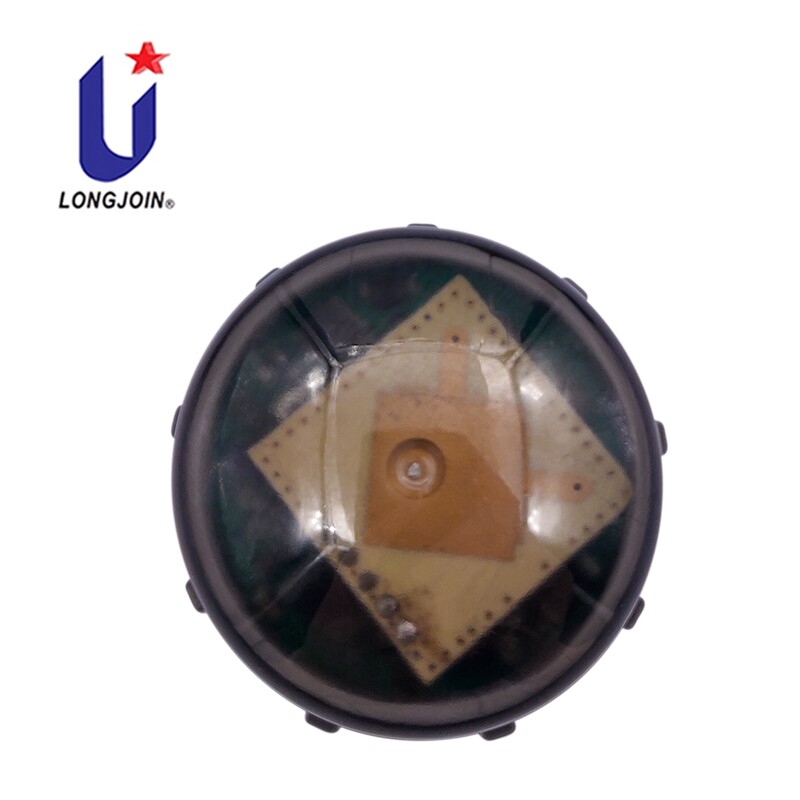

JL-712A2B Zhaga Book-18 Controller
- Product Summary
JL-712A2B light controller is a smart light controller developed based on ZHAGA BOOK18 interface standard. It adopts a combination sensor of light sensing and microwave sensing, 0-10V dimming signal, supports dual-mode configuration of dip switch and infrared
remote control. The light controller is suitable for road, lawn, yard, park, parking lot, factory, warehouse and other lighting scenes. The working logic of the product is that when the illumination level is met to turn on, the lamp operates at a stand-by dim level. If a moving object is detected at this time, the lamp becomes turn on 100%, and after the hold time, it returns to stand-by dim level. When stand-by peroid is over or the illumination level is met to turn off, the lamp will be turned off。
- Features
- 12-24VDC power supply，low power consumption
- ZHAGA BOOK18
- 0-10V2
- Microwave frequency dynamic adjustment
- Φ50.4*35mm small size
- light + microwave sensors
- high performance microwave, 15 meters high, 6 m radius of the induction
- switch + infrared remote dual-mode configuration
- IP66
- Parameters
| Power supply | Voltage： 12~24VDC Current： 12V/60mA；24V/30mA | |||||||||||||||
| Power consumption | ＜0.6W | |||||||||||||||
| Dimming | 0-10V | |||||||||||||||
| Sensors | Light+Microwave | |||||||||||||||
| Spectral acquisition range | Range：0.01~64000Lux Wavelength ：350~1100nm ，Peak 550nm |
|||||||||||||||
| Microwave frequency | 5.8GHz | |||||||||||||||
| Maximum hanging height | 15m | |||||||||||||||
| Sensing radius | 4-8m | |||||||||||||||
| Sensitivity | Default 100%，adjust through IR/Dip switch | |||||||||||||||
| Hold time | Default 30S，adjust through IR/Dip switch | |||||||||||||||
| Stand-by dim level | Default 0%，adjust through IR/Dip switch | |||||||||||||||
| Stand-by period | Default ∞ , adjust through IR | |||||||||||||||
| Turn on Illumi nance | Default ∞ , adjust through IR/Dip switch | |||||||||||||||
| Reflected light compensation | Default ∆50lux，adjust through IR | |||||||||||||||
| Maximum power ratio | Default 100%，adjust through IR | |||||||||||||||
| Mechanical Vibration | IEC60068-2-6 | |||||||||||||||
| Flammability Level | UL94-V0 | |||||||||||||||
| Operating Temperature | -40℃ ~70℃ | |||||||||||||||
| Storage Temperature | -40℃ ~85℃ | |||||||||||||||
| Operating Humidity | 5%RH~99%RH | |||||||||||||||
| IP Level | IP66 | |||||||||||||||
| Certifications | CE 、RED 、ROHS | |||||||||||||||
Indoor installation with a height of 15 meters
| 4. Dip Switch |
- IR controller
remote controls
| Icon | Function | Default | Adjustable range | |||||||||
| Sensitivity | 100% | 10%/20%/30%/40%/50%/60%/70%/80%/90%/100%/FF， FF equivalent to continuously triggered by induction | ||||||||||
| Hold time | 30S | 5S/30S/1M/3M/5M/10M/20M/30M | ||||||||||
| Stand-by dim level | 20% | 0%/10%/20%/30%/40%/50% | ||||||||||
| Stand-by period | FF | 5S/30S/1M/3M/5M/10M/20M/30M/FF， unitS， FF equivalent to infinity | ||||||||||
| Turn o Illuminance | FF | 2/10/20/30/50/80/100/150/200/250/300/350/ 400/FF， unit Lux， FF equivalent to infinity |
||||||||||
| Reflected light compensatio n |
50Lux | 50/100/200/300 | ||||||||||
| Maximum power ratio |
100% | 50%/60%/70%/80%/90%/100% | ||||||||||
| Unlock button |
Other buttons must be unlocked before they can be used | |||||||||||
| Configuratio n send button |
Send all configuration parameters displayed on the screen | |||||||||||
| Configuration erase button | Erase all parameters configured by the IR controller | |||||||||||
| Turn on/off button |
Turn on/off lamp | ||||||||||||
| Parameter type select button |
Select different parameter items | ||||||||||||
| Parameter Value Select button |
Select different parameter values for the currently selected parameter type |
||||||||||||
- Funtion examples
- Size
8. PIN
| PIN | Definition | Type | |||||||||||||||
| 1 | 12~24VDC | Power Input | |||||||||||||||
| 2 | GND/DIM- | Power Input | |||||||||||||||
| 3 | DIM+（0-10V+） | Signal Output | |||||||||||||||
| 4 | NC | NC | |||||||||||||||
9. Wiring diagram
10. Installation

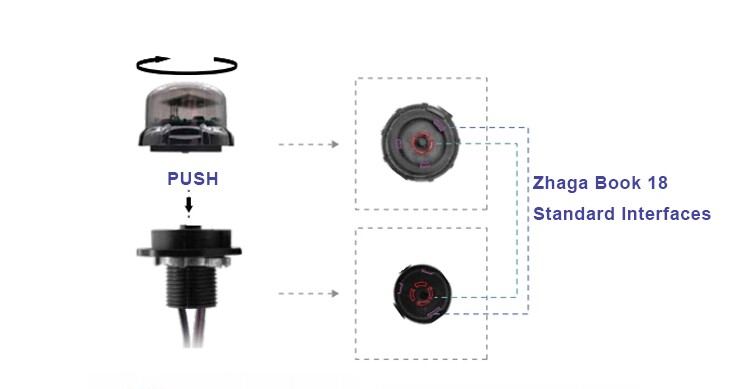

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.
11. Attentions
1、If the negative pole of the auxiliary power supply of the driver is separated from the negative pole of the dimming interface, they need to be shorted and connected to the light controller # 2.
2、If the light controller is installed very close to the light source surface of the lamp and the lamp power is relatively large, it may exceed the limit of the reflected light compensation and appear to turn off itself.
3、Because the ZHAGA light controller does not have the ability to cut off the AC power supply of the driver, the customer needs to select a driver with an output current close to 0mA when using the ZHAGA light controller, otherwise the phenomenon that the lamp cannot be completely turned off may occur. As shown in the output current curve of the driver specification, the lowest output current is close to 0mA.
4、The light controller only outputs the dimming signal to the driver, regardless of the power load of the driver and the light source.
5、Don’t use your fingers to block photosensitive window, it is likely that the lights will fail to turn on because of the light passing through your fingers.
6、There should be no metal objects obstructing the microwave induction radiation angle, otherwise it will seriously reduce the induction performance.
7、If used in outdoor scenes, rain and swaying trees may accidentally trigger induction lights.
8、Avoid hanging installation to prevent the product from shaking and triggering the induction light by mistake.
9、The sensing performance will be affected by the installation environment, lighting fixtures, the size and speed of the tester, and the detection range may vary
