Confirmed supply current: 35 mA at 12 VDC or 25 mA at 24 VDC. These values supersede conflicting power-consumption figures in older parameter charts. Confirm the complete driver or auxiliary supply capacity for the selected installation.

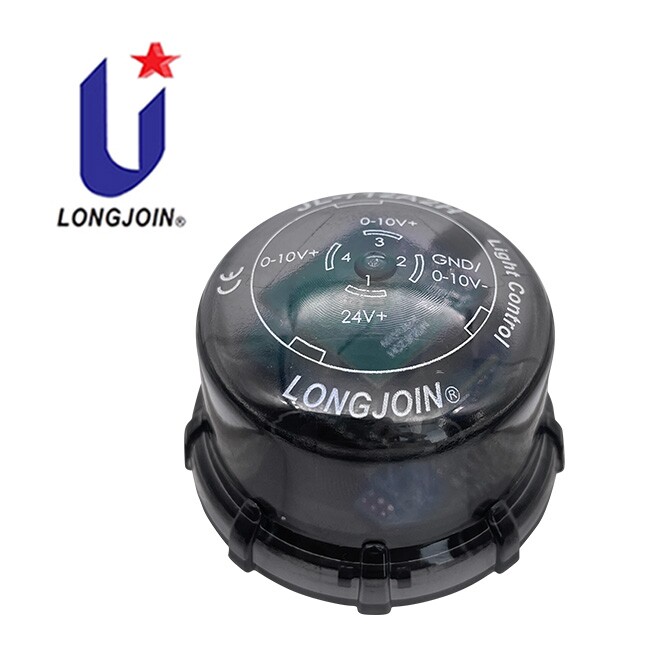

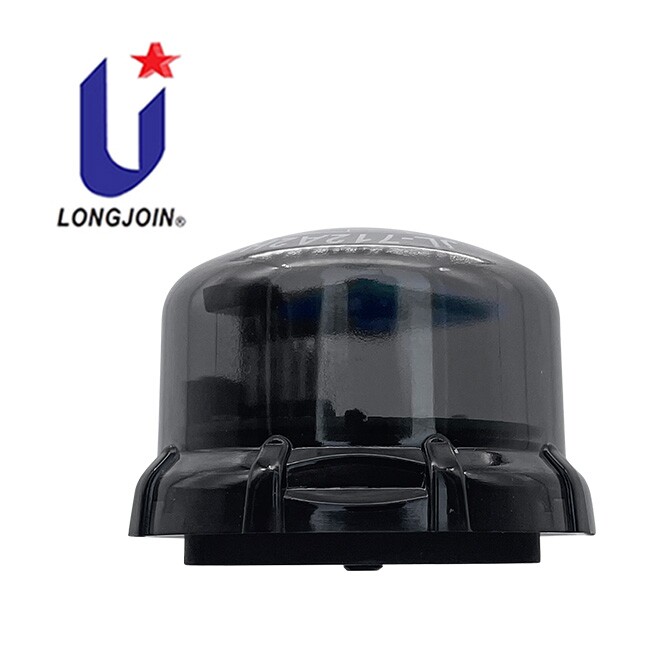

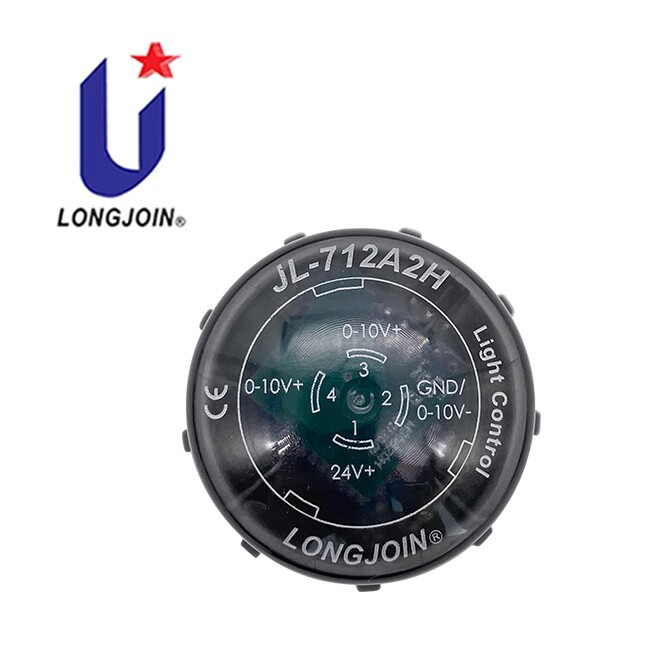

The JL-712A2H light controller product is a smart latch type light controller developed based on the Zhaga Book-18 interface standard. It uses a combination of light sensing and microwave sensing sensors, can output 0-10V dimming signals, and supports infrared remote control for parameter configuration. This light controller is suitable for lighting scenarios such as roads, lawns, courtyards, parks, parking lots, factories, warehouses, etc.
The working logic of the product is that when the illumination is met, the lamp works at a slightly bright brightness and starts a countdown of the slightly bright duration. At this time, if a moving object is detected, the lamp becomes fully bright. When a moving object is detected and left, a countdown of the fully bright duration begins. After the countdown of the fully bright duration ends, it returns to the slightly bright brightness and starts a countdown of the slightly bright duration. When the countdown of the slightly bright duration ends or the illumination is met, the lamp is turned off.
| Power supply | Voltage: 12-24VDC Current: 12V/35mA；24V/25mA |
| Power dissipation | Refer to the confirmed supply-current specification above. |
| Dimming | 0-10V |
| Sensors | Light sensitivity+microwave |
| Spectral range | Wavelength: 800~1100nm |
| Microwave frequency | 5.8GHz |
| Maximum hanging height | 15 meters |
| Induction radius | ≥10 meters |
| Power on initialization | By default, it remains turn on for 5s (gradient) when powered on,and then runs properly based on parameter Settings and environment conditions |
| Sensitivity | Default 80%, adjust through IR |
| Hold time | Default 30S, adjust through IR |
| Stand-by dim level | Default 0%, adjust through IR3 |
| Stand-by period | Default infinite, adjust through IR |
| Turn on Illuminance | Default 50lux, adjust through IR |
| Turn off illuminance ∆ value | Default ∆ 50lux, adjust through IR |
| Turn off illuminance | Turn on Illuminance + Turn off illuminance ∆ value |
| Maximum power ratio | Factory default 100%, adjust through IR |
| Off → Stand-by dim time | 0.1S |
| Stand-by dim → 100% dim time | 0.1S When the stand-by dim level is 0%, it lasts for 0.2s, which is equivalent Off → 100% dim time |
| 100% dim → Stand-by dim time | 8S When the stand-by dim level is 0%, it lasts for 9s, which is equivalent 100% dim → turn off time |
| Stand-by dim → turn off time | 1S |
| mechanical vibration | IEC60068-2-6 |
| Flammability Level | UL94-V0 |
| Operating Temperature | -40 ℃~70 ℃ |
| Storage Temperature | -40 ℃~85 ℃ |
| Operating Humidity | 5% RH~99% RH |
| IP Level | IP66 |
| Certifications | CE, ZHAGA, ROHS |
Note: Either the black or blue line can be selected, and it can also be connected in parallel at the same time.

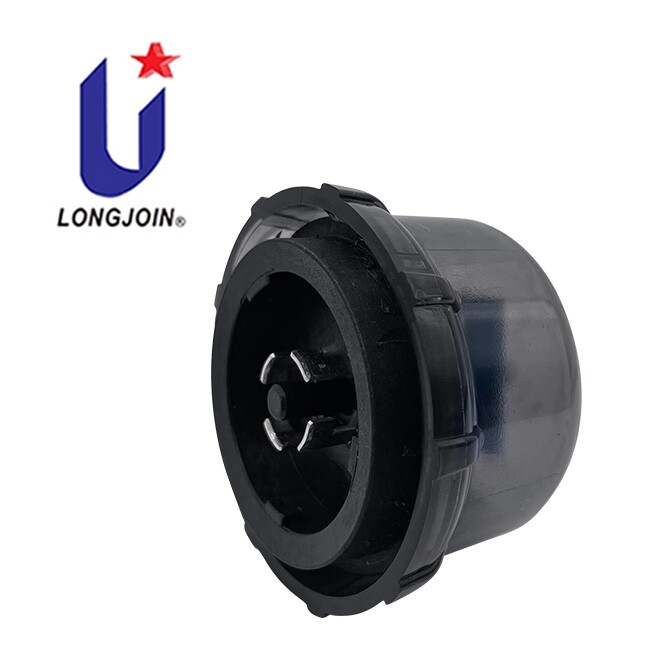

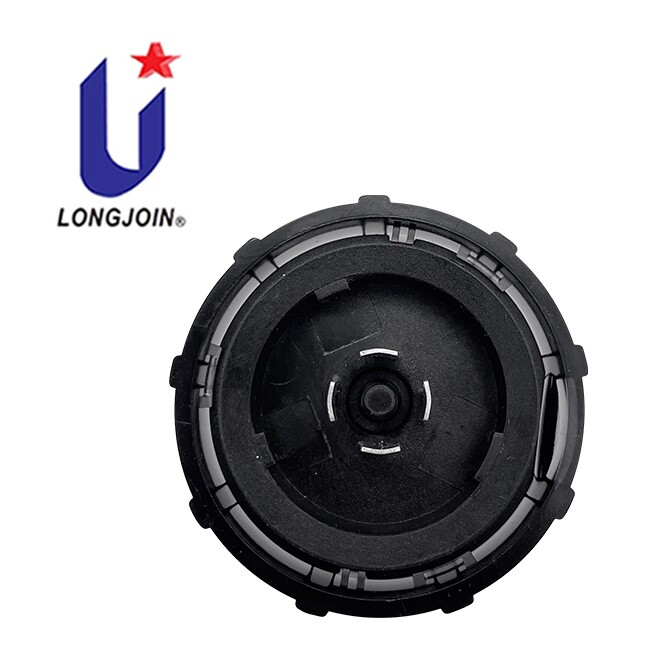

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.
This model description specifies 0-10V dimming and a 12-24VDC supply. A Zhaga Book 18 mounting interface does not by itself establish DALI or D4i compatibility. Confirm the socket wiring, power source and 0-10V LED driver interface for the exact assembly.
The description specifies light and microwave sensing with infrared remote configuration. Confirm the compatible remote, permitted settings and required mounting conditions; validate detection coverage on the actual luminaire rather than assuming the same range in every installation.
Request model-specific operating limits, IP66 assembly conditions and applicable conformity or certification records. The CE, Zhaga and RoHS references in the table should be checked against documents covering the exact product and configuration.
See Zhaga controllers and components, Zhaga socket selection, and selection and installation FAQs.
