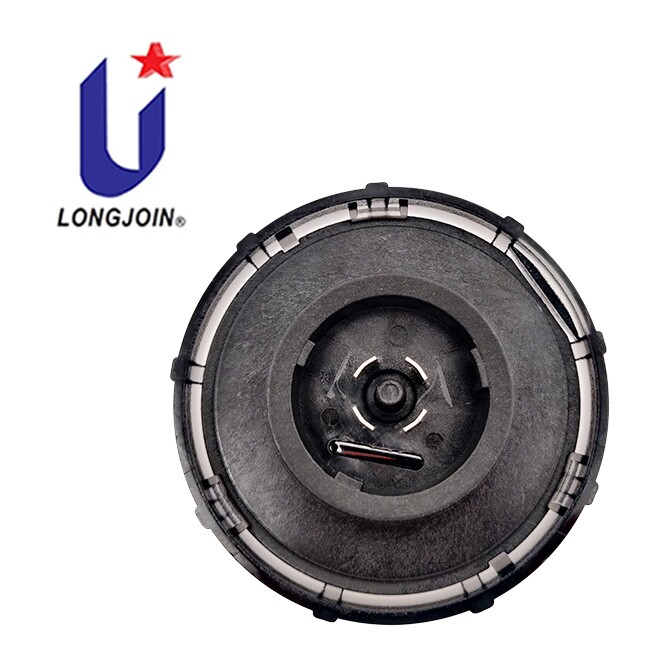

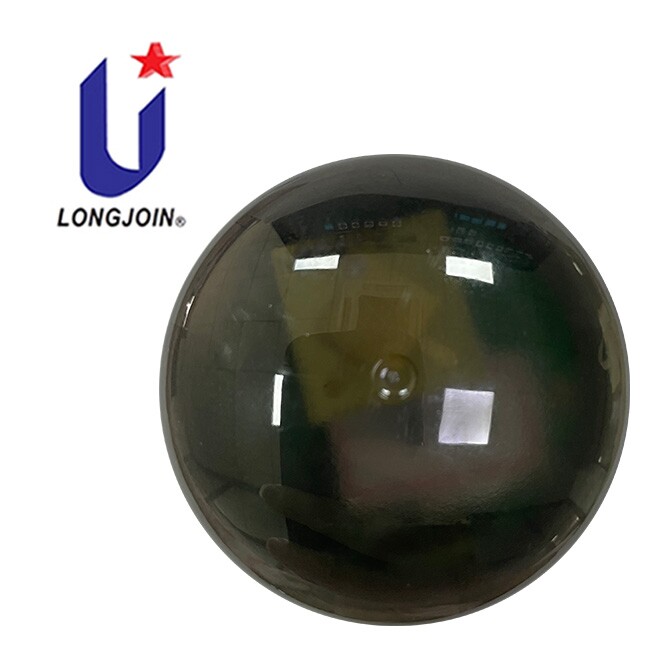

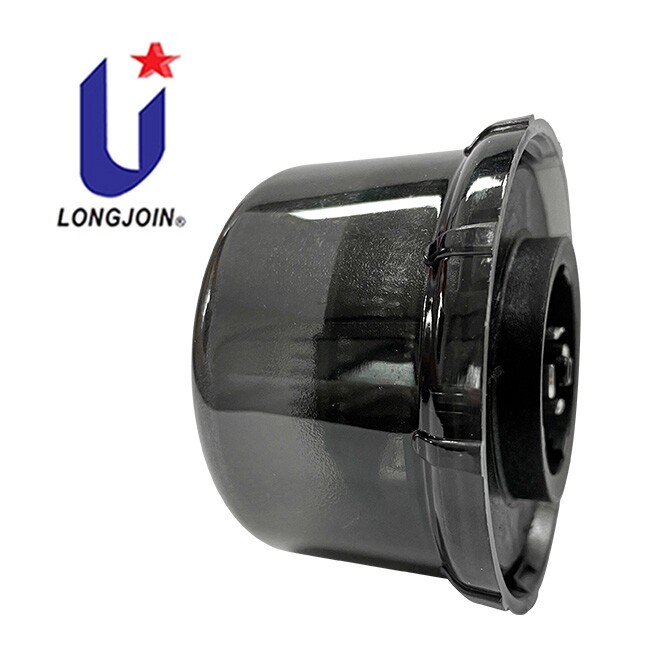

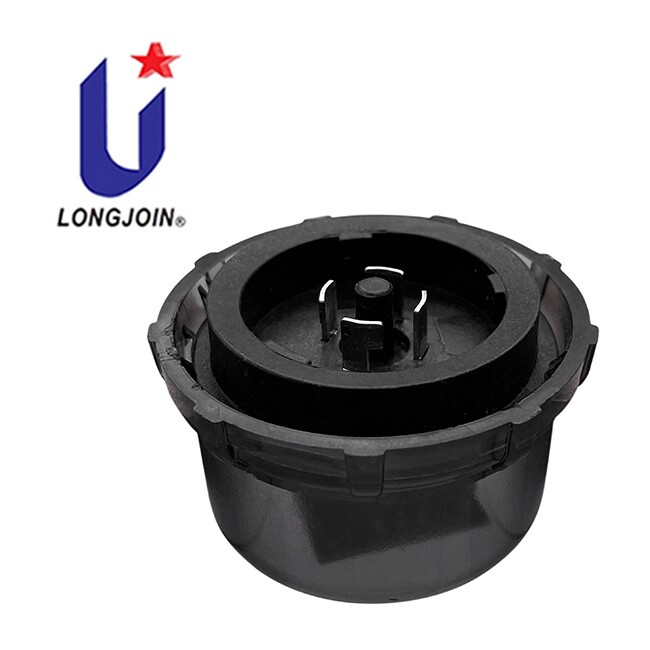

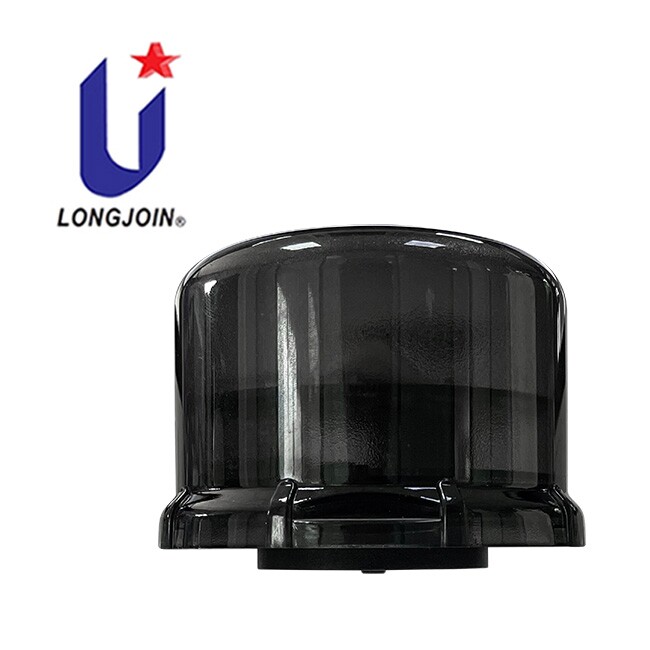

JL-712G3L Zhaga Book-18 Zhaga Controller Adopts the Wireless Communication Mode of LTE CAT1, Light Sensing + Microwave Sensing

Product Summary

The JL-712G3L single lamp intelligent controller adopts the wireless communication mode of LTE CAT1, which has the ability of light sensing and microwave sensing, and supports local wireless linkage function. It can still be linked when the network is disconnected. The dimming output mode is 0-10V. You can use our UM9900 management system for remote monitoring and configuration. This product is only suitable for detecting pedestrians and low-speed vehicles<20km/h.

Product size chart

Parameters

Power Supply	Rated voltage：12~24VDC，3W It is recommended that the transient current response capacity reach 1A
Average power consumption	1.2W
Dimming Interface	Type：0~10V Accuracy：±2% Drive Current：20mA（Typical）
Communication	LTE+Sub-G
Spectral Acquisition Range	Range: 0.01~64000Lux Accuracy: ± 2% Wavelength：350~1100nm，Peak wavelength： 550nm
Turn on Illuminance	100Lux（±10）
Turn off Illuminance	Reflected light + 40Lux(±10)after each turn on Lower limit：50+40Lux(±10)； Upper limit：6000Lux（±100）
Reflected light compensation upper limit	6000Lux（±100）
Microwave parameters	Frequency: 5.8 GHz Supported hanging height: ＜ 15m Sensing radius: 4-6 meters Sensing angle:<92 °
Linkage distance	≤1km
Default Tiny Brightness	20%
Default Tiny Light Maintenance Duration	permanent
Default trigger brightness	100%
Default trigger brightness maintenance duration	30S
Default Maximum Power Ratio	80%
Sensing radius	4-8m (by 15m hanging height)
Initialization Action	After startup, the light is turned on at 100% brightness by default, and it is taken over by the device operation mode after 5S
Lamp on delay	10S
Lamp off delay	10S
Duration of microwave induction light on	Default 30S platform adjustable
Microwave error prevention trigger	Possess certain ability to prevent wind, rain, leaves, and small animals
Trace brightness	Default 20% platform adjustable
Slightly bright duration	Default permanent platform adjustable
Network Protocol	MQTT
SIM card	Cato plug-in type Supports 1.8V USIM cards NANO package
Remote upgrade	Sustain OTA
Green LED Indicator Light	Chang Liang: Successfully connected base stations
Blue LED Indicator Light	Blinking: Connecting to the server Always on: Successfully connected to the server
Default periodic reporting frequency	10 minute
Energy saving strategy	custom
Electrostatic discharge immunity	Contact discharge: ± 8kV, CLASSB Air discharge: ± 15kV, CLASS B
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~96%RH
IP Level	IP66
Structural material	foundation bed：PBT Shell：PC
Standard	IEC61000-4-2、GB/T2423.10-2008、UL94-V0
Certifications

Features

• ZHAGA standard interface
• LTE Cat.1 communication
• Synergia Modes Remote Configuration
• Motion sensing upto 15m height
• Synergying coverage upto 1km
• Anti-mulfunction for outdoor purpose
• Self-cycling prevented
• LED Decay compensation built-in
• Multi-sensing Strategy
• Fault Dianosis & Report
• MQTT Server Online Miguration Support

Network architecture

Overall network architecture diagram

Linkage diagram based on trigger radius                                    Schematic diagram of sequential linkage

Wiring diagram

Installation

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, Insert and tighten clockwise as shown in the figure below, and remove it counterclockwise. The SIM card slot is located in the circular area at the bottom of the product. Refer to the image below.

Products support flexible frequency band expansion to meet different needs
Our JL-712G3L Zhaga Book-18 controller supports a wide range of LTE communication bands by default, including LTE-FDD (B1/B3/B5/B8) and LTE-TDD (B34/B38/B39/B40/B41) bands. These bands have been widely used in LTE networks in many regions around the world, ensuring efficient and stable operation of products in various environments.

For users who need support for the 700MHz band (B28), our controller provides flexible options for module replacement. By replacing the adapter module, your device can seamlessly support the B28 band, thereby meeting the network requirements of specific countries and regions, ensuring excellent performance in private LTE networks and other communication environments.
