JL-721NP Zhaga Book-18 Intelligent Locking Controller supports DALI2.0 and GPS, dimmed by Local Ambient Illuminance, or realized by NB-IOT remote real-time/strategy mode
Product Details:

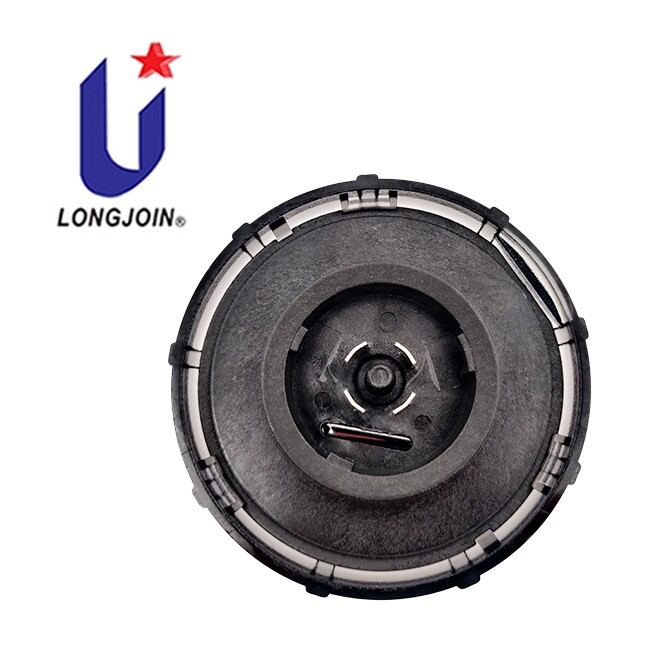

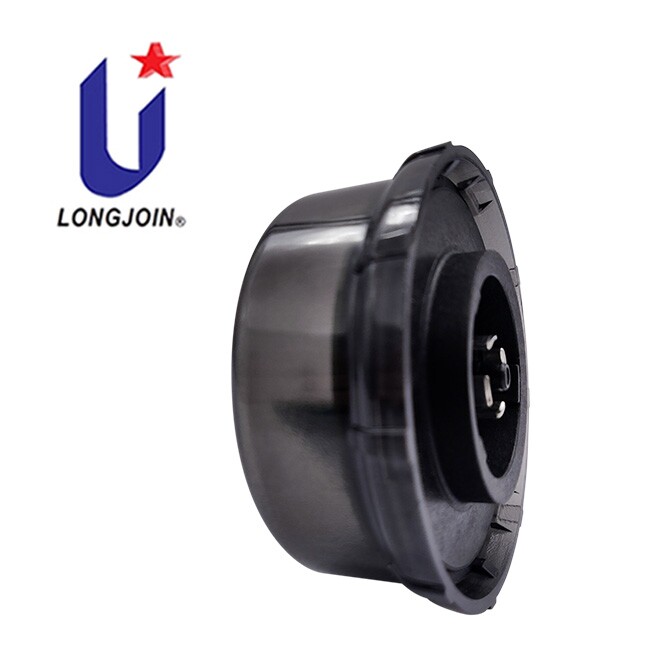

JL-721NP Zhaga Book-18 Intelligent Locking Controller supports DALI2.0 and GPS, dimmed by Local Ambient Illuminance, or realized by NB-IOT remote real-time/strategy mode
Product Summary
JL-721NP series light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard, It can be automatically dimmed by local ambient illuminance, or realized by NB-IOT remote real-time/strategy mode. The dimming mode supports DALI2.0 and supports GPS to automatically locate the geographic location of the device. The light controller is suitable for lighting scenes such as roads, Industry and mining，lawns, Parking lot，courtyards, and parks.
Product size chart
Parameters
| Model No. | JL-721NP |
| Power Supply | Rated voltage：12~24VDC，5W |
| Communication mode | NB-IoT |
| Spectral Acquisition Range | 350~1100nm，Peak wavelength550nm |
| Ambient light acquisition | Range：0.01~64000Lux Accuracy：±2% |
| Turn on Illuminance | 100Lux（±10） |
| Turn off Illuminance | Reflected light +40Lux（±10） |
| Lower limit：50+40Lux（±10） | |
| Upper limit：6000Lux（±100） | |
| Reflected light compensation upper limit | 6000Lux（±100） |
| Dimming interface | DALI2.0 |
| Default maximum power ratio | 80% |
| NB-IOT | Frequency band：B1/B3/B5/B8/B20（customizable） |
| Transmitting power：23dBm±2dB | |
| Receiving sensitivity：-129dBm | |
| Network Protocol | MQTT |
| Initialization | After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1 |
| Blue LED Indicator Light | Blinking: Connecting to the server |
| Always on: Successfully connected to the server | |
| Default periodic | 10 minute |
| reporting frequency | |
| Turn on delay | 10S |
| Turn off delay | 10S |
| Energy saving strategy | Custom |
| Mechanical Vibration | IEC60068-2-6 |
| Flammability Level | UL94-V0 |
| Operating Temperature | -40℃~70℃ |
| Operating Humidity | 5%RH~99%RH |
| IP Level | IP66 |
| Certifications | Zhaga-D4i、CE、ROHS |
Features
- DC power supply, low power consumption
- ZHAGA BOOK18 interface standard
- Support NB-IOT communication mode, multi-band B1/B3/B5/B8/B20, support most countries/regions in the world
- Support GPS positioning
- MQTT network protocol, data encryption
- 0.01~64000Lux ultra-wide ambient illumination collection range
- When the wireless signal is abnormal, it will automatically switch to the local light sensing mode
- DALI2.0 dimming interface
- Small size, suitable for installation in most lamps
- Interference lighting filtering
- Lamp reflected light compensation
- Support DFOTA remote software upgrade
- Undervoltage alarm report
- RTC
- External NANO SIM card
- IP66
Light Controller Pin Definition
Wiring Diagram
