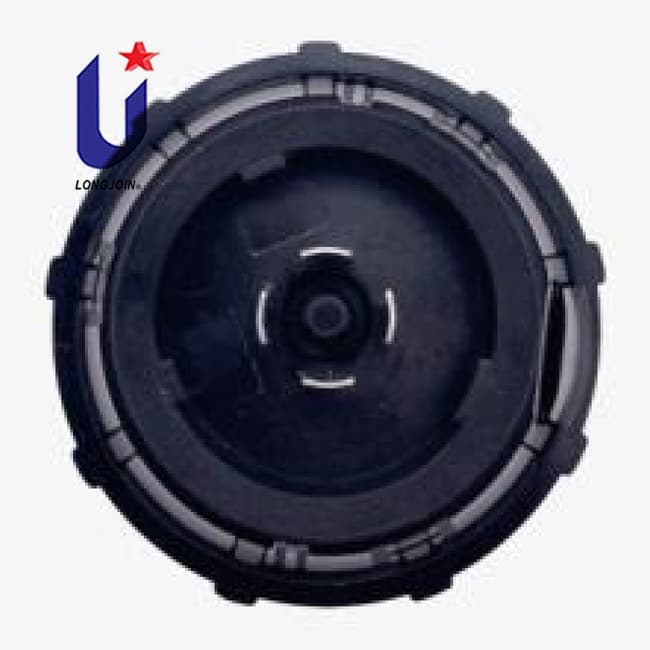

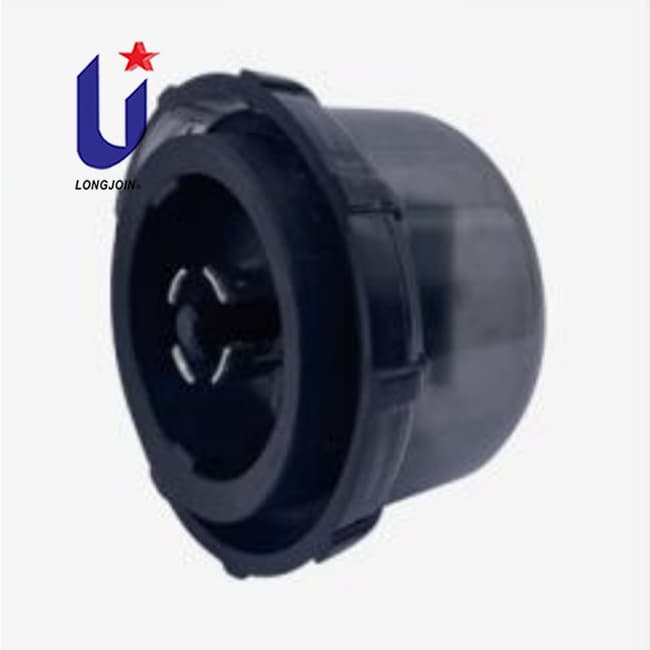

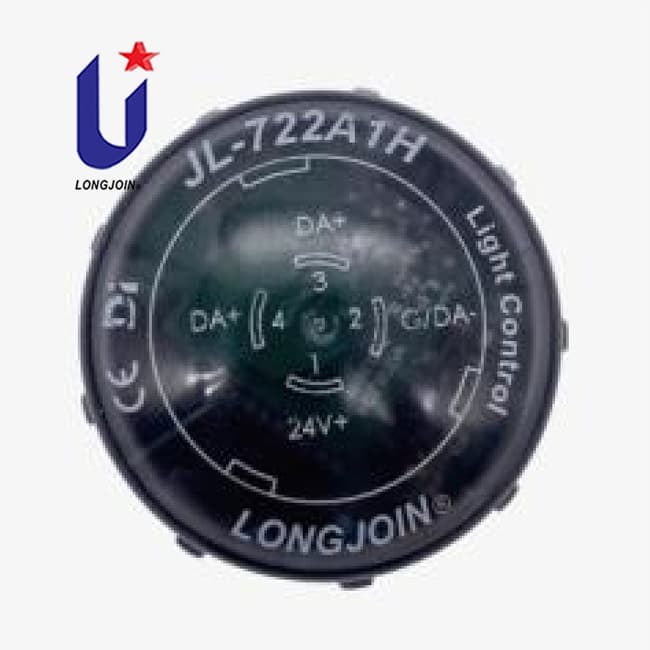

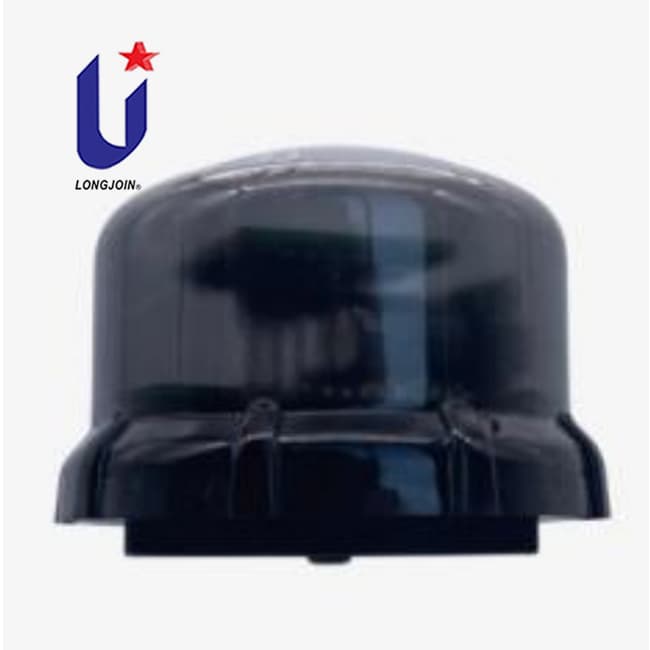

JL-722A1H Zhaga Book-18 Microwave Photocell Sensor Controller

Product Details:

Product Description

The JL-722A1H Zhaga Book-18 Controller is a smart, low-voltage lighting controller designed for intelligent outdoor and industrial lighting applications.
It integrates light and microwave sensors to enable on-demand lighting based on ambient illumination and motion detection, providing energy-saving, adaptive lighting control.

The controller supports DALI 2.0 dimming and can be easily configured via infrared remote control. Its compact size (Φ50.4×35mm) and Zhaga Book-18 interface ensure seamless integration with a wide range of LED luminaires such as street lights, garden lamps, and parking lot fixtures.

Certified for CE, Zhaga, and RoHS, the JL-722A1H offers IP66 waterproof protection, high durability, and stable performance in challenging outdoor environments.

Key Features

  • Zhaga Book-18 standard interface

  • Dual-sensor design: light + microwave

  • Supports DALI 2.0 dimming protocol

  • Infrared remote control for quick configuration

  • Adjustable sensitivity, hold time, dimming level, and lux threshold

  • Dynamic microwave frequency adjustment for interference avoidance

  • IP66 waterproof, UL94-V0 flame retardant

  • Operating temperature: -40°C ~ +70°C

Applications

  • Smart street and roadway lighting

  • Industrial zones and factory lighting

  • Garden, park, and courtyard illumination

  • Parking lots and warehouse lighting

Parameters

Power supplyVoltage: 12-24VDC Current: ≥20mA
Power dissipation<0.2W(12V);<0.4W(24V)
DimmingDALI2.0
SensorsLight sensitivity+microwave
Spectral rangeavelength: 800~1100nm
Microwave frequency5.8GHz
Maximum hanging height12 meters
Induction radius6-9 meters
Start-up time<200mS
Power on initializationBy default, it remains turn on for 5s (gradient) when powered on, and then runs properly based on environment conditions parameter Settings and
SensitivityDefault 80%, adjust through IR
Hold timeDefault 30S, adjust through IR
Stand-by dim levelDefault 0%, adjust through IR
Stand-by periodDefault infinite, adjust through IR
Turn on IlluminanceDefault 50lux, adjust through IR
Turn off illuminance ∆ valueDefault ∆ 50lux, adjust through IR
Turn off illuminanceTurn on Illuminance + Turn off illuminance ∆ value
Maximum power ratioFactory default 100%, adjust through IR
Off → Stand-by dim timeDepending on the drive’s fade time parameter, the default is 0S
Stand-by dim → 100% dim time
100% dim → Stand-by dim time
Stand-by dim → turn off time
mechanical vibrationIEC60068-2-6
Flammability LevelUL94-V0
Operating Temperature-40 ℃~70 ℃
Storage Temperature-40 ℃~85 ℃
Operating Humidity5% RH~96% RH
IP LevelIP66
CertificationsCE, ZHAGA, ROHS

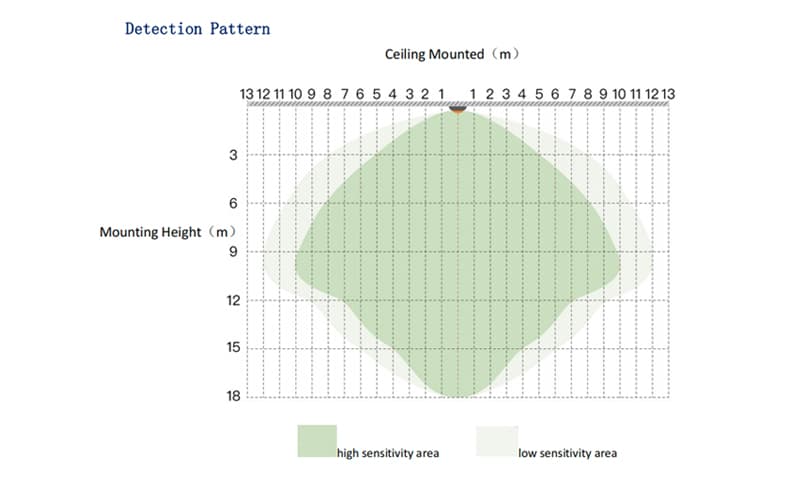

Detection Pattern

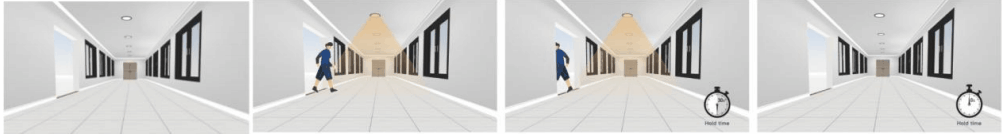

Turn on Illuminance:FF,Sensitivity:100%,Stand-by dim level:0%,Hold time:30S
