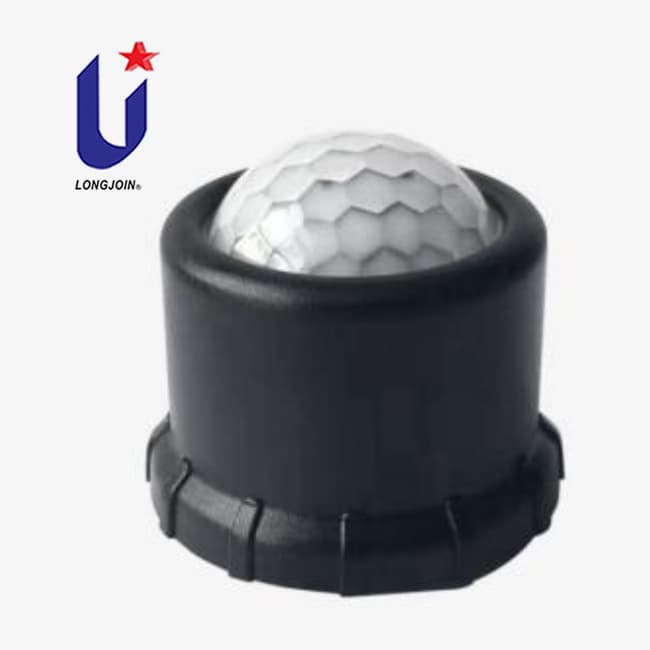

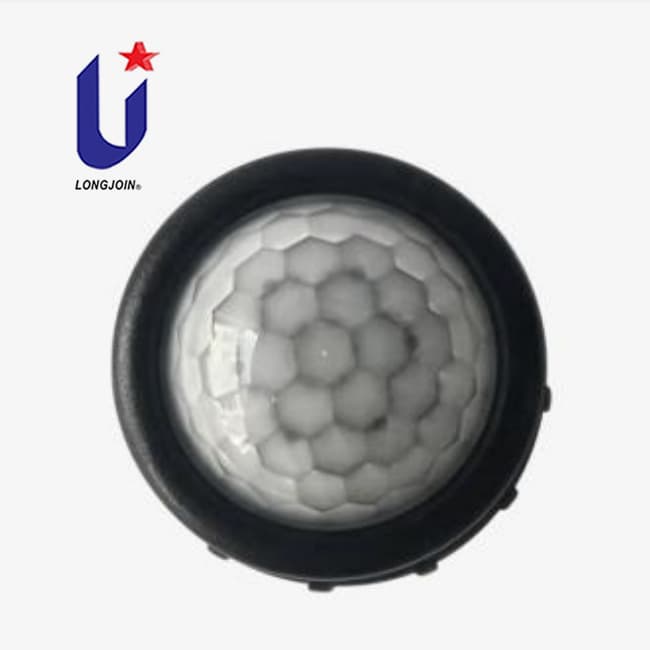

JL-723A1H Zhaga Book-18 PIR Photocell Sensor Controller

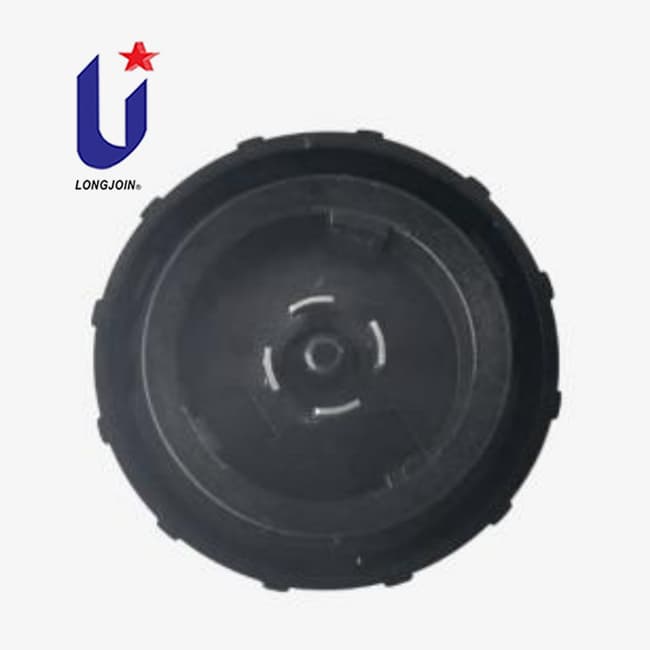

JL-723A1H Zhaga Book-18 PIR Photocell Sensor Controller - Image 3

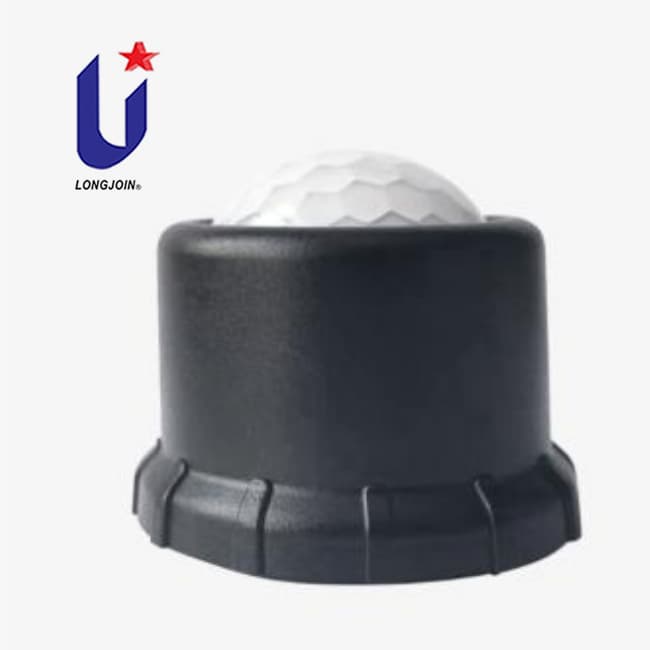

JL-723A1H Zhaga Book-18 PIR Photocell Sensor Controller - Image 4

Product Details:

Product Description

The JL-723A1H Zhaga Book-18 Controller is an intelligent lighting control device designed to enhance outdoor and area lighting efficiency.
It combines light sensing and PIR motion detection to achieve automatic, energy-efficient illumination that adapts to environmental conditions and human activity.

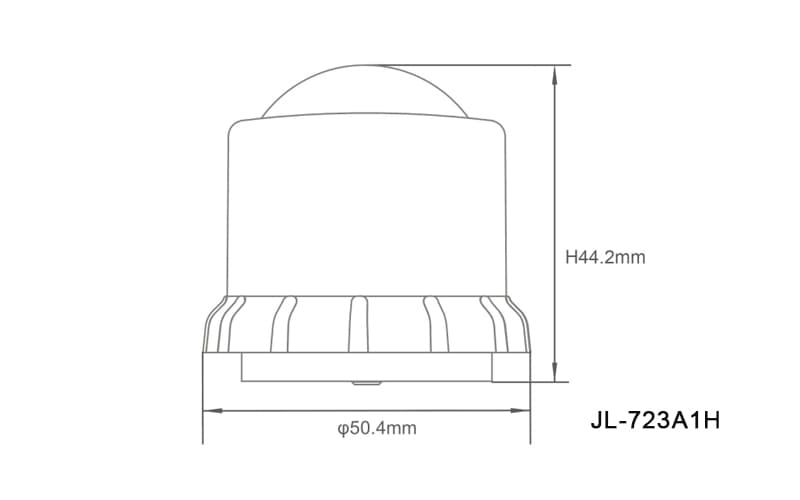

With DALI 2.0 dimming output and infrared remote control configuration, it provides precise, flexible lighting management. The controller’s compact structure (Φ50.4×44.2mm) allows effortless integration with various luminaires through the Zhaga Book-18 interface.

Featuring IP66 waterproof protection, high PIR sensitivity, and low power consumption, the JL-723A1H ensures stable and long-lasting performance in road, park, and industrial lighting systems.

Key Features

Zhaga Book-18 standard interface
Light + PIR dual-sensor detection
DALI 2.0 dimming control output
IR remote configuration for customizable settings
Adjustable sensitivity, delay time, and brightness levels
Compact size and easy installation
IP66 protection and UL94-V0 flame retardant
Operating temperature: -30°C ~ +70°C

Applications

Roadway and smart city lighting
Public park and courtyard illumination
Parking area and factory lighting
Energy-saving outdoor lighting systems

Parameters

Power supply	Voltage: 12-24VDC Current: ≥15mA
Power dissipation	＜0.13W（12V）；＜0.26W（24V）
Dimming	DALI2.0
Sensors	Light sensitivity + PIR
Spectral range	avelength: 800~1100nm
Maximum hanging height	12 meters
Induction radius	≤6 meters
Start-up time	＜200mS
Power on initialization	By default, it remains turn on for 5s (gradient) when powered on, and then runs properly based on parameter Settings and environment conditions
Sensitivity	Default 80%, adjust through IR
Hold time	Default 30S, adjust through IR
Stand-by dim level	Default 0%, adjust through IR
Stand-by period	Default infinite, adjust through IR
Turn on Illuminance	Default 50lux, adjust through IR
Turn off illuminance ∆ value	Default ∆ 50lux, adjust through IR
Turn off illuminance	Turn on Illuminance + Turn off illuminance ∆ value
Maximum power ratio	Factory default 100%, adjust through IR
Off → Stand-by dim time	Depending on the drive’s fade time parameter, the default is 0S
Stand-by dim → 100% dim time
100% dim → Stand-by dim time
Stand-by dim → turn off time
mechanical vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-30 ℃~70 ℃
Storage Temperature	-40 ℃~85 ℃
Operating Humidity	5% RH~96% RH
IP Level	IP66
Certifications	CE, ZHAGA, ROHS

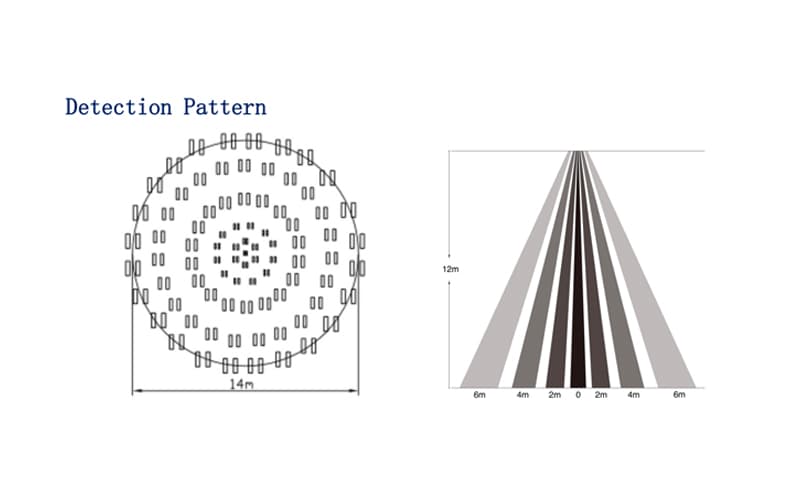

Detection Pattern

Turn on Illuminance：FF，Sensitivity：100%，Stand-by dim level：0%，Hold time：30S
