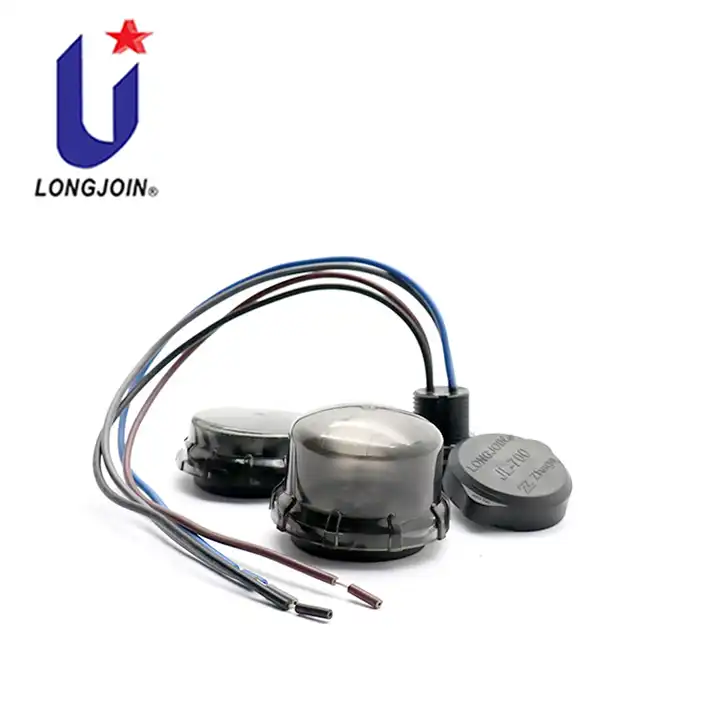

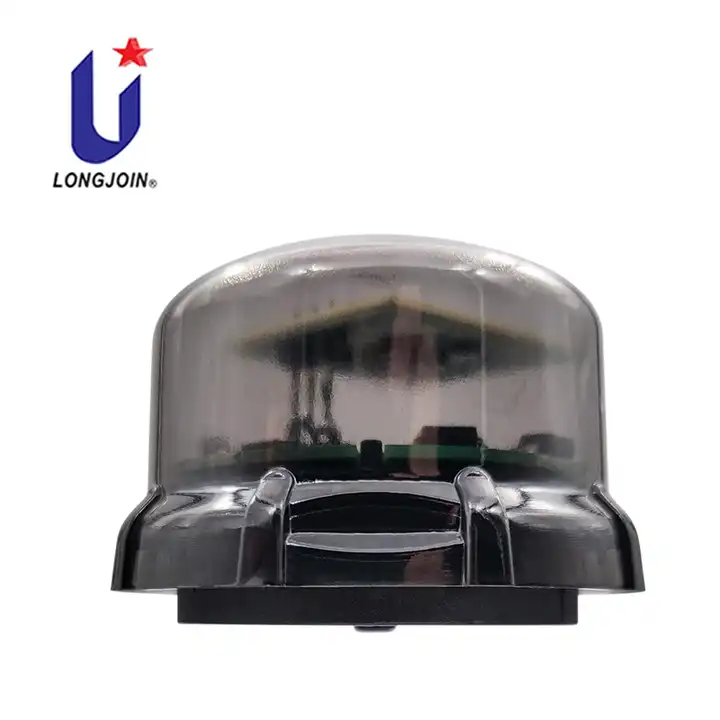

Luminaire Controller Zhaga Sesnor with Microwave Motion for Street Light
Product Description
Luminaire Controller Zhaga Sesnor with Microwave Motion for Street Light
Product Summary
JL-712A3 light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard.It adopts light sensing and microwave mobile combined sensor, which can output 0~10V dimming signal.
The light controller is suitable for lighting scenes such as roads,lawns, courtyards, parks, car park and construction site
4 Pin Prongs-712A
Item
Definition
Type
1
12-24VDC
power input
2
GND/DIM-
power input
3
NC
Signal output
4
DIM+(0-10V+)
Signal output
Zhaga Sensor Specification
Model
JL-712A3
Voltage
12V/45 mA, 24V/30mA
Power consumption (at daylight)
12-24V / 3.5 mA
Sensor type
Optic sensor & microwave motion
Dimming output
0-10v, adjustment range 2%, Drive capability: 40 mA
Spectral Acquisition Range
350~1100nm, Peak wavelength 560nm
Default turn-on illuminance threshold
50 lx +/-10
Real-time turn-off illuminance threshold*1
when the ambient illuminance after turning on the light to 100% brightness each time +40 lx (+/-10)
up limit: 50+40 lx (+/-10)
down limit: 6000 lx (+/-100)
Reflected light compensation upper limit
6000 lx (+/-100)
initiate state adjustment
After power-on, the light will be turned on by default at 100% brightness and maintained for 5 seconds, then the light will be turned off automatically and enter the self-sensing operation mode *
Light on delay
5s (The light will be turned on only when the ambient illuminance is satisfied for 5S continuously)
Turn-off delay
20s (Turn off the lights when the ambient illuminance is satisfied for 20S continuously)
Standby brightness (when the illuminance is satisfied but there is no moving object)
20%
Maximum hanging height
15 m
Sensing radius
4-8 m (Under 15m hanging height)
Sensing angle
92 degrees
Flammability Level
UL94-V0
Anti-static interference(ESD)
IEC61000-4-2
Contact discharge:±8kV,CLASSA
Air discharge:±15kV,CLASS A
Mechanical Vibration
IEC61000-3-2
Operating Temperature
-40°C~55°C
Operating Humidity
5%RH~99%RH
Life
>=80000h
IP rating
IP66
extra protection mode
built anti-trigger motion protection
Certificate
CE, CB, zhaga book 18
Tips
*1
A. If the light-emitting surface of the lamp is completely shielded and isolated from the light-sensitive surface of the light controller when installed, that is, no reflected light enters the light controller after the lamp is illuminated, then the light-off illuminance at this time is equal to the lower limit, that is, the next time the light is turned off The illuminance is about = the default light-on illuminance + 40lux compensation value = 50+40=90lux;
B. If the installation fails to achieve complete shielding and isolation between the light-emitting surface of the lamp and the light-sensitive surface of the light controller, that is, the reflected light enters the light controller after the lamp is illuminated , If the current ambient illuminance collected by the light controller is 500 lux after the lamp is turned on to 100%, the next time the lamp is turned off, the illuminance will be approximately = current ambient illuminance + 40 = 540 lux;
C. If the lamp has a large power and the light-emitting surface is installed It is very close to the light-sensitive surface of the light controller, and the reflected light exceeds the upper limit of compensation after the lamp is turned on to 100%, that is, the light controller detects that the ambient illuminance has been stable and greater than 6000 lux after the light is turned on, then the light controller will automatically be after 60S Perform turn off the lights.
When the drive does not have a standard auxiliary power output, additional power supply is required
When using the 710 series socket, the 710 socket has built-in Switching change AC-DC
Features
DC power supply, low power consumption
ZHAGA BOOK18 interface standard
Microwave anti-error triggering, both indoor and outdoor
Automatic dynamic microwave frequency adjustment to
avoid mutual interference in dense installation
Small size, suitable for installation in most lamps
0~10V dimming interface
Light sensor + microwave sensor, on-demand lighting, more power saving5
Interference lighting filtering
Lamp reflection filter
IP66
PIN
Installation Schematic Diagram
Clockwise twist lock for matching lock its receptacle
Photosensitive or microwave induction mode, and according your customized require design dual compatible mode
Attentions
If the negative pole of the auxiliary power supply of the driver is separated from the negative pole of the dimming interface, they need to be shorted and connected to the light controller # 2.
If the light controller is installed very close to the light source surface of the lamp and the lamp power is relatively large, it may exceed the limit of the reflected light compensation and appear to turn off itself.
Because the ZHAGA light controller does not have the ability to cut off the AC power supply of the driver, the customer needs to select a driver with an output current close to 0mA when using the ZHAGA light controller, otherwise the phenomenon that the lamp cannot be completely turned off may occur. As shown in the output current curve of the driver specification, the lowest output current is close to 0mA.
The light controller only outputs the dimming signal to the driver, regardless of the power load of the driver and the light source.
Don’t use your fingers to block photosensitive window, it is likely that the lights will fail to turn on because of the light passing through your fingers.
Luminaire Controller Zhaga Sesnor with Microwave Motion for Street Light
Product Summary
JL-712A3 light controller products are intelligent rotary lock light controllers developed based on ZHAGA BOOK18 interface standard.It adopts light sensing and microwave mobile combined sensor, which can output 0~10V dimming signal.
The light controller is suitable for lighting scenes such as roads,lawns, courtyards, parks, car park and construction site
4 Pin Prongs-712A
Real-time turn-off illuminance threshold*1
up limit: 50+40 lx (+/-10)
down limit: 6000 lx (+/-100)
Anti-static interference(ESD)
Contact discharge:±8kV,CLASSA
Air discharge:±15kV,CLASS A
Tips
*1
A. If the light-emitting surface of the lamp is completely shielded and isolated from the light-sensitive surface of the light controller when installed, that is, no reflected light enters the light controller after the lamp is illuminated, then the light-off illuminance at this time is equal to the lower limit, that is, the next time the light is turned off The illuminance is about = the default light-on illuminance + 40lux compensation value = 50+40=90lux;
B. If the installation fails to achieve complete shielding and isolation between the light-emitting surface of the lamp and the light-sensitive surface of the light controller, that is, the reflected light enters the light controller after the lamp is illuminated , If the current ambient illuminance collected by the light controller is 500 lux after the lamp is turned on to 100%, the next time the lamp is turned off, the illuminance will be approximately = current ambient illuminance + 40 = 540 lux;
C. If the lamp has a large power and the light-emitting surface is installed It is very close to the light-sensitive surface of the light controller, and the reflected light exceeds the upper limit of compensation after the lamp is turned on to 100%, that is, the light controller detects that the ambient illuminance has been stable and greater than 6000 lux after the light is turned on, then the light controller will automatically be after 60S Perform turn off the lights.
JL-712A3 Microwave Motion Zhaga Sensor Schematic Diagram
Diagram of LED Fixture Brightness and Ambient illuminance Curve
Schematic diagram of microwave induction
Connect Diagram
Your Choose Best Connect Diagram, in order to saving more cost , eg, time, strict select supplier quality etc.
Features
PIN
Installation Schematic Diagram
Clockwise twist lock for matching lock its receptacle
Photosensitive or microwave induction mode, and according your customized require design dual compatible mode
Attentions
If the negative pole of the auxiliary power supply of the driver is separated from the negative pole of the dimming interface, they need to be shorted and connected to the light controller # 2.
If the light controller is installed very close to the light source surface of the lamp and the lamp power is relatively large, it may exceed the limit of the reflected light compensation and appear to turn off itself.
Because the ZHAGA light controller does not have the ability to cut off the AC power supply of the driver, the customer needs to select a driver with an output current close to 0mA when using the ZHAGA light controller, otherwise the phenomenon that the lamp cannot be completely turned off may occur. As shown in the output current curve of the driver specification, the lowest output current is close to 0mA.
The light controller only outputs the dimming signal to the driver, regardless of the power load of the driver and the light source.
Don’t use your fingers to block photosensitive window, it is likely that the lights will fail to turn on because of the light passing through your fingers.
