FCC Certificate, Compliant to Standard 47 CFR FCC Part 2 and Part 15 Subpart B Class A Equipment Regulations from FCC Rules.
JL-207 Series Work Principle:
There is a built-in essential on-off switch work mode by LDR resistance value/phototransistor/photodiode and the light sensor will perfectly control turn on at dusk and turn off at dawn.
1. Optional Built-in Sensor type.
2. Optional Fail on / Fail off Mode.
3. Time-delay off, or Time-delay on.
4. Resist-heat and shock-resistant shell.
5. Optional IP54,IP65,IP66,IP67.

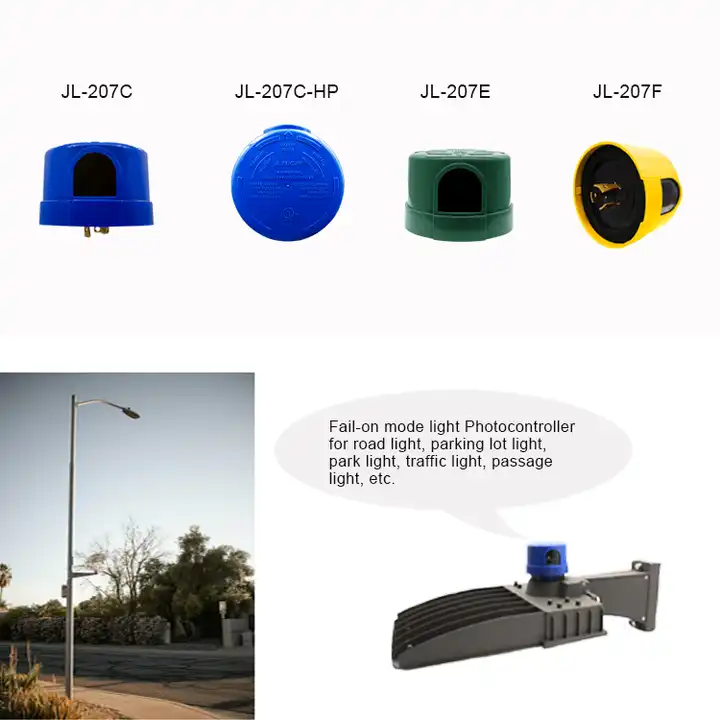

Model
JL-207C
JL-207E
JL-207F
Rated Voltage
120-277 VAC
120-347 VAC
208-480 VAC
Applicable voltage range
105-305 VAC
105-380 VAC
180-530 VAC
Rated Frequency
50/60Hz
Overall Dimensions(mm)
84(Dia)*66
Rated Loading
1000W Tungsten, 1800W Ballast
Power Consumption
0.5W[STD]/0.9W[HP]
On-Off Level
16Lx On
24Lx Off
Time-delay
5-20s
IP Rating
IP54,IP65,IP67
Housing Color
according to your requirement to design product style.
Housing Feature
Optional Customized heat disspation double cover
Certificate
CE,RoHS,UL,FCC,RoHS other validate certificate
