The PECU JL214B is applicable to control the street lighting,garden lighting,passage lighting and door- way lighting automatically in accordance with the ambient natural lighting level.
This product is designed with electronic circuits with sensor of phototransistor and a surge arrester (MOV) is provided.Especially,model JL-224B has an omnidirectional face-top sensor for customer applications per BS5972.
Further,a preset 5-30 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the nighttime.
This product provides twist-lock terminals meets the requirements of BS5972 and this series conforms the CE(UKCA) and RoHS directives.
Schematic diagram:
Photocell Sensor Specification
FEATURES
BS5972omnidirection ·
TimeDelay of 5-30s ·
Multi-Volts Available
Surge Arrester Built-in
Phototransistorsensor

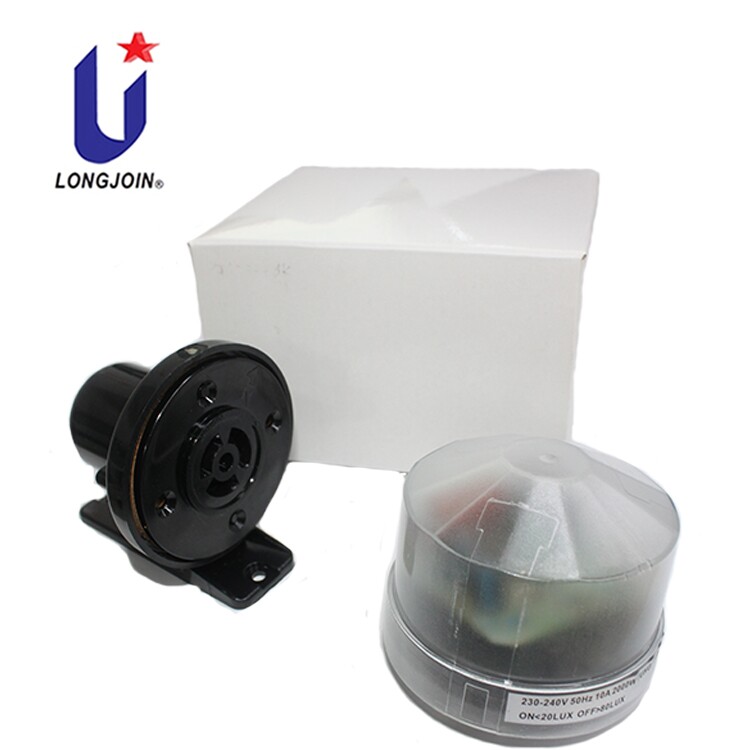

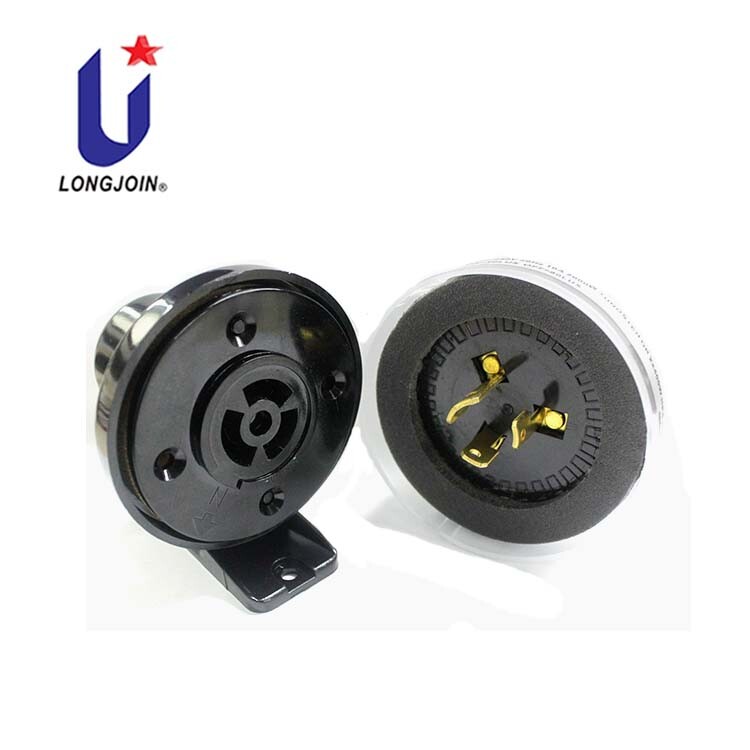

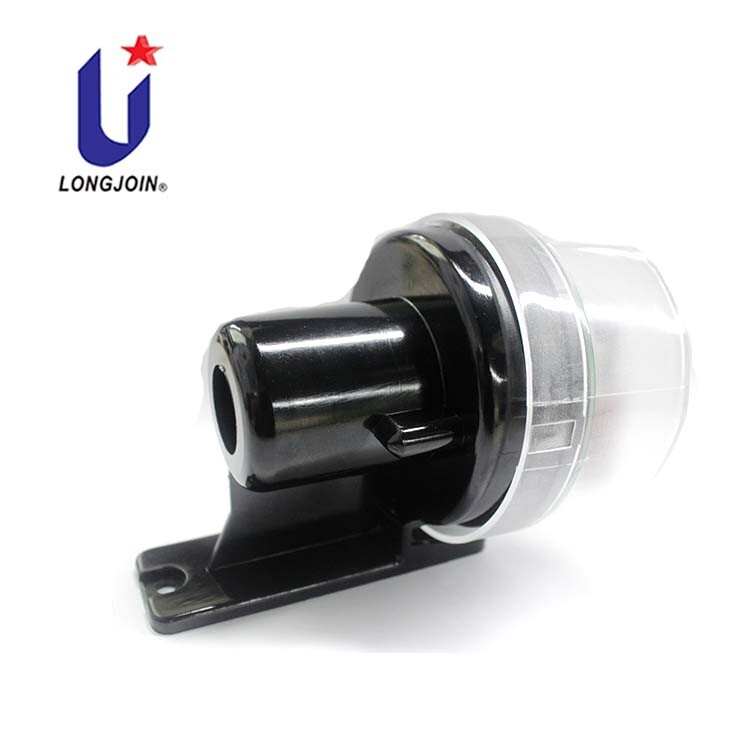

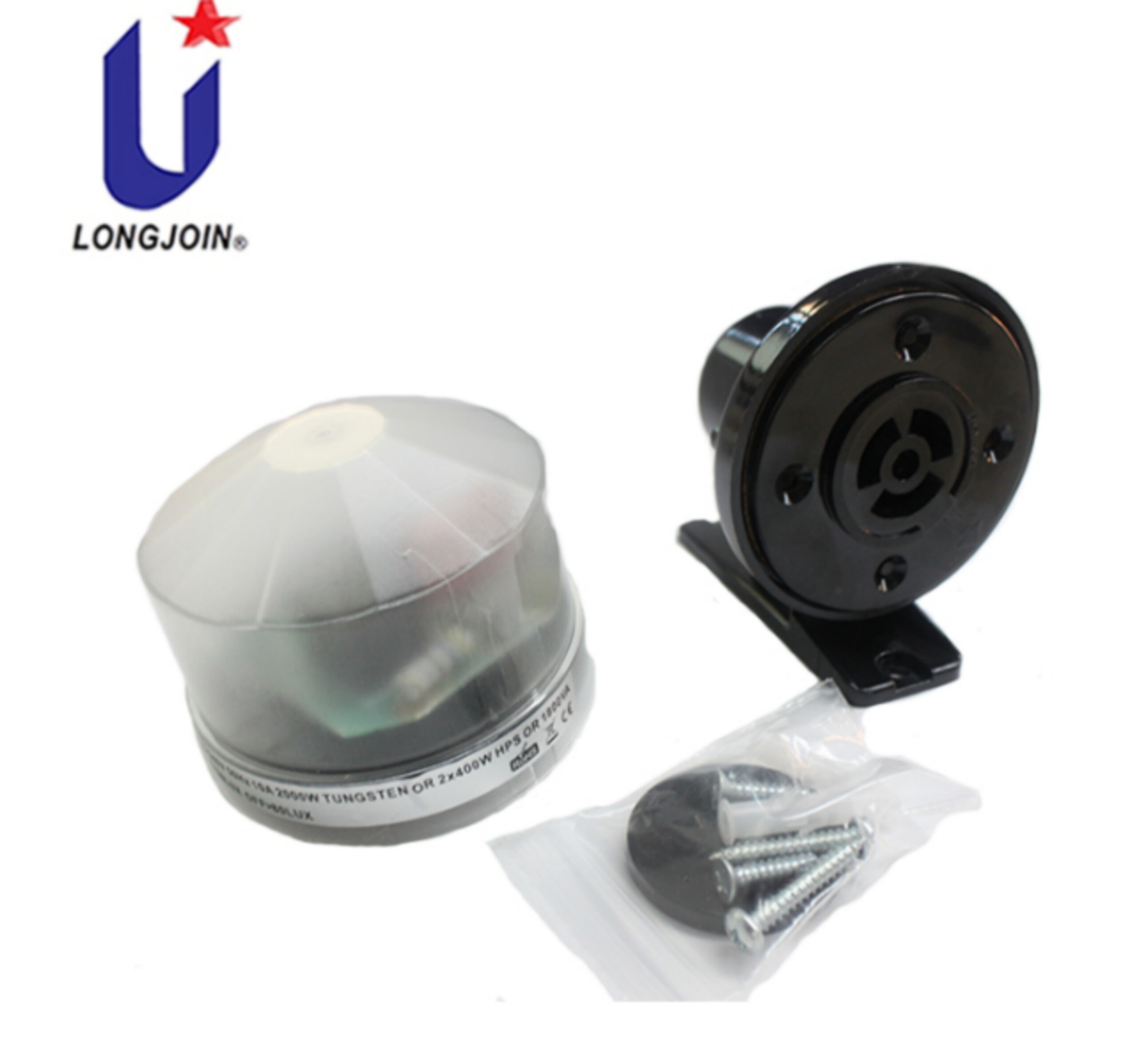

Use with aBS5972 Twist-lockreceptacle
Model NO.
Rated Voltage
Applicable Voltage
Roted Loadings
Certificates
JL-212B
220-240VAC
198-268VAC
1000W Tungsten
1800VA Ballast
CE,ROHS
JL-213B
220-240VAC
200-260VAC
JL-214C
110-277VAC
105-305VAC
JL-224C
110-277 VAC
105-305VAC
Product features-Photoelectric Switch
1. Easy to maintain Twist-lock(ANSI C 136.10)
2. 30-60 seconds time-delay switching-over for luminaires protection
3. Advanced atable performance.
The JL-214 light controller is Long-Join’s high performance light controller designed for outdoor lighting for the UK and European markets. The product utilizes advanced photoelectric sensing technology with excellent environmental adaptability and reliability.
Product Features:
High protection level: JL-214 has IP65 protection level, waterproof and dustproof, and can work stably for a long time under the rainy and humid climate conditions in the UK.
Intelligent light sensor: The light controller is equipped with a high sensitivity photoelectric sensor, which can accurately sense the ambient light and automatically adjust the street light on and off, energy saving and environmental protection.
Wide operating temperature range: JL-214 can work normally in the temperature range of -40 ℃ to 70 ℃, to adapt to the temperature changes in different seasons in the UK.
High-quality materials: The shell is made of UV-resistant PC material, preventing long-term exposure to sunlight aging, improve product life.
Easy to install:
compact design, easy to install, suitable for a variety of outdoor lighting applications.
JL-214 light controller is very suitable for application in outdoor lighting places such as municipal road lighting, public squares, parking lots, residential road and park lighting in the UK and Europe. Its high protection level and intelligent light sensing function can effectively improve the energy-saving efficiency of the lighting system and reduce maintenance costs.
Recommended Reason:
With high protection level, intelligent light sensing and wide operating temperature range, JL-214 light controller is fully adapted to the environmental requirements of the UK and European markets. At the same time, easy installation and high quality materials make the product highly competitive in the European market.

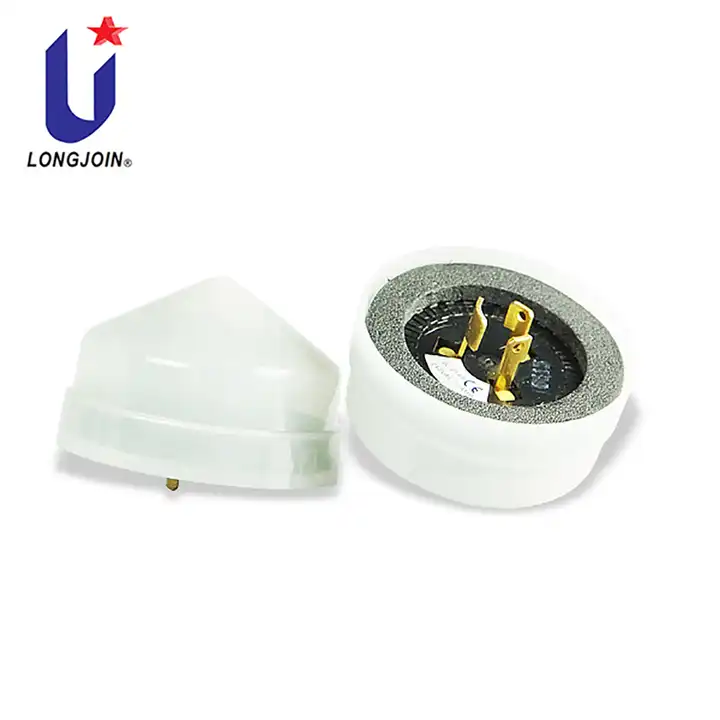

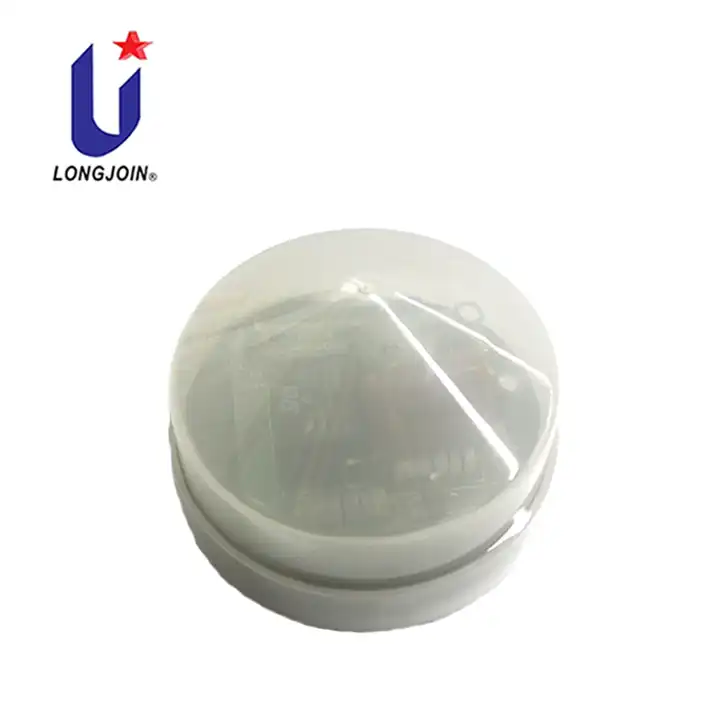

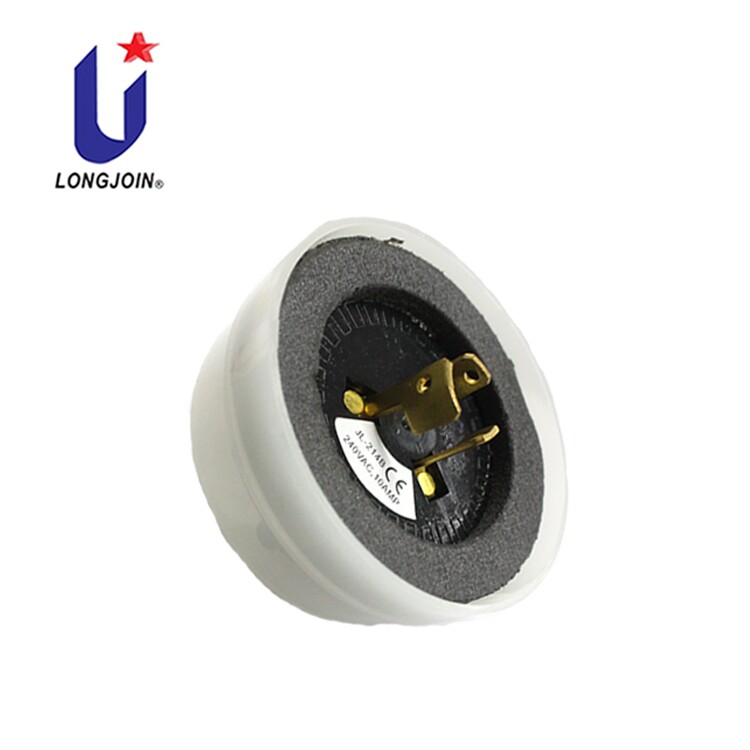

JL-214B 220V Photocell Sensor
PRODUCT SUMMARY
The PECU JL214B is applicable to control the street lighting,garden lighting,passage lighting and door- way lighting automatically in accordance with the ambient natural lighting level.
This product is designed with electronic circuits with sensor of phototransistor and a surge arrester (MOV) is provided.Especially,model JL-224B has an omnidirectional face-top sensor for customer applications per BS5972.
Further,a preset 5-30 seconds time-delay might avoid redundancy operation due to spotlight or lightning during the nighttime.
This product provides twist-lock terminals meets the requirements of BS5972 and this series conforms the CE(UKCA) and RoHS directives.
Schematic diagram:
Photocell Sensor Specification
FEATURES
Model NO.
Rated Voltage
Applicable Voltage
Roted Loadings
JL-212B
220-240VAC
198-268VAC
1000W Tungsten
1800VA Ballast
CE,ROHS
JL-213B
220-240VAC
200-260VAC
JL-214C
110-277VAC
105-305VAC
JL-224C
110-277 VAC
105-305VAC
Product features-Photoelectric Switch
The JL-214 light controller is Long-Join’s high performance light controller designed for outdoor lighting for the UK and European markets. The product utilizes advanced photoelectric sensing technology with excellent environmental adaptability and reliability.
Product Features:
High protection level: JL-214 has IP65 protection level, waterproof and dustproof, and can work stably for a long time under the rainy and humid climate conditions in the UK.
Intelligent light sensor: The light controller is equipped with a high sensitivity photoelectric sensor, which can accurately sense the ambient light and automatically adjust the street light on and off, energy saving and environmental protection.
Wide operating temperature range: JL-214 can work normally in the temperature range of -40 ℃ to 70 ℃, to adapt to the temperature changes in different seasons in the UK.
High-quality materials: The shell is made of UV-resistant PC material, preventing long-term exposure to sunlight aging, improve product life.
Easy to install:
compact design, easy to install, suitable for a variety of outdoor lighting applications.
Technical parameters:
Rated voltage: 4-480Vac
Load current: Maximum 15A
Light sensing range: 10-100 Lux
Response time: < 5 seconds
Protection class: IP65
Operating temperature: -40℃ to 70
Applicable Scenarios:
JL-214 light controller is very suitable for application in outdoor lighting places such as municipal road lighting, public squares, parking lots, residential road and park lighting in the UK and Europe. Its high protection level and intelligent light sensing function can effectively improve the energy-saving efficiency of the lighting system and reduce maintenance costs.
Recommended Reason:
With high protection level, intelligent light sensing and wide operating temperature range, JL-214 light controller is fully adapted to the environmental requirements of the UK and European markets. At the same time, easy installation and high quality materials make the product highly competitive in the European market.
