JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC Receptacle

Category Zhaga Series

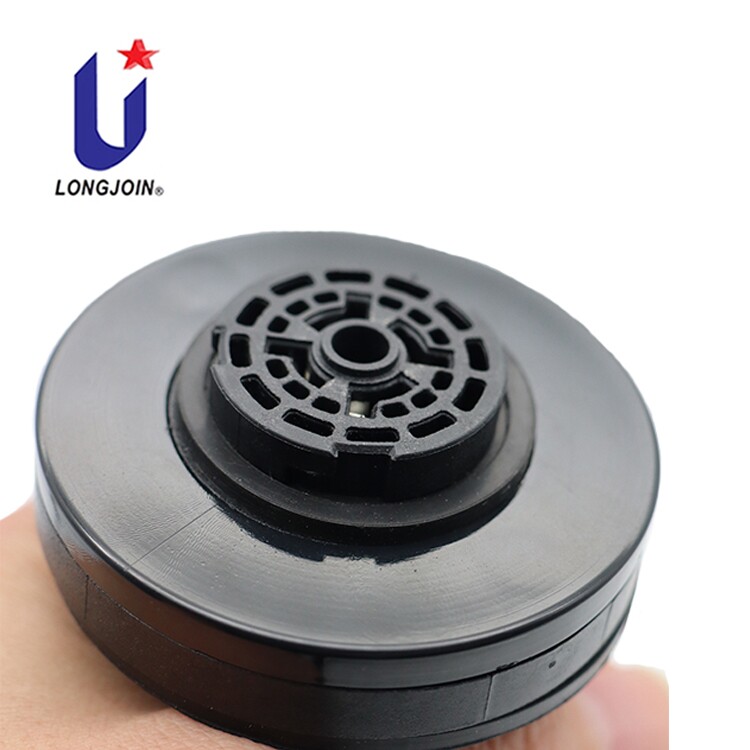

JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC Receptacle - Image 3

JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC Receptacle - Image 4

Product Details:

JL-710 Zhaga Book 18

4 PIN Connector Switching DC-AC

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC

Model	JL-710
Zhaga Input Parameter
Rated voltage range	100-277VAC
Rated Voltage Range(Max)	85-305VAC
Maximum steady-state input AC current	30mA (under 220VAC)
I2t	0.009A2s (under 220VAC)
Conversion efficiency	80%(under 220VAC)
Zhaga Output Parameter
Output voltage	24V DC
Stable voltage adjust precision	+/-2%
Rated current	0.21A
Rated power	5W
Noise	150 mVp-p
Ripple	100 mVp-p
Linear adjustment rate	+/-0.12%
Load adjustment rate	+/-5%
Po	<0.12W

Model selection table

“*”：In development, minimum specification capacity estimation

FEATURES

The JL-710 product is a socket developed based on the ZHAGA BOOK18 interface size standard. It has a built-in AC-DC switching power supply,witch can output 24VDC/5W.

It can solve the application scenario of the customer driver without auxiliary voltage output to the ZHAGA light controller, and the cost is much lower than replacing a dimming driver with auxiliary voltage output.

Structure

 Standardized interface defined in Zhaga Book 18
 Support top/side/bot installation
Compact size allowing greater flexibility in luminaire design Low cost
 85~305VAC input
 CLASS II driver
 No-load power consumption≤0.12W
 Overvoltage/undervoltage/overcurrent/short circuit/open circuit/over
 temperature protection
 0~10V dimming transfer interface
 P66（When used with our light controller）
 RoHS and UL certification

Front pin definition

Features:

• Comply with ZHAGA BOOK18 standard

• IP66 (cooperate with our ZHAGA light controller)

• Support top surface installation/side installation/upside-down installation

• Small size, suitable for installation on all kinds of lamps

• The cost is much lower than choosing a dimming driver solution with secondary voltage output

• AC wide voltage input (85~305VAC)

• No-load power consumption ≤0.12W

• Comprehensive protection: overvoltage protection/undervoltage protection/overcurrent protection/short circuit protection/ Open circuit protection/over temperature protection

• 0~10V dimming signal switch output

• CLASS II power supply

• Passed RoHs and UL certification

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC

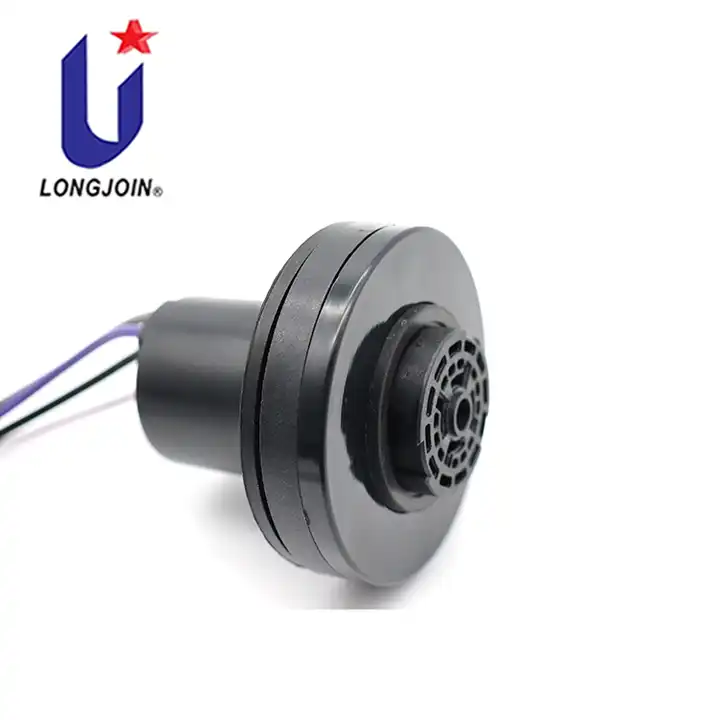

• The default line length is 152.4mm, and the length can be customized

• The stripping length is 10mm by default, the insulation layer is reserved, and the length can be customized

• AC wire gauge (black wire, white wire): 18AWG /AWM1015, 2.9mm outside diameter including insulation

• Signal wire gauge (purple wire, gray wire): 20AWG/AWM1015, 2.6mm outside diameter including insulation

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC

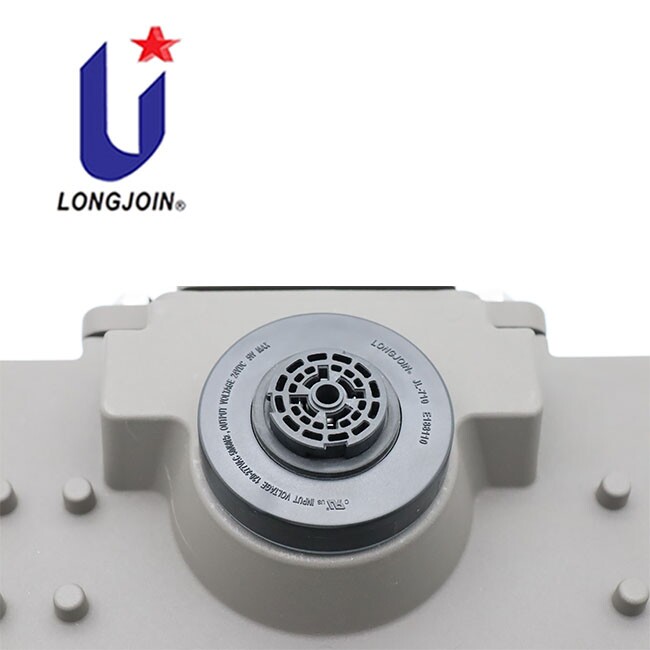

The size of the opening is exactly

the same as the standard NEMA

socket, and the lamp with the

opening of the NEMA socket can

also be installed directly JL-710

socket.

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC

Note: Compared with the NEMA standard light controller, the ZHAGA light controller has a flexible installation position and a smaller volume, which makes the lamp more beautiful. The installation position also reflects the different functions of the ZHAGA light controller. (Light control, microwave, infrared)

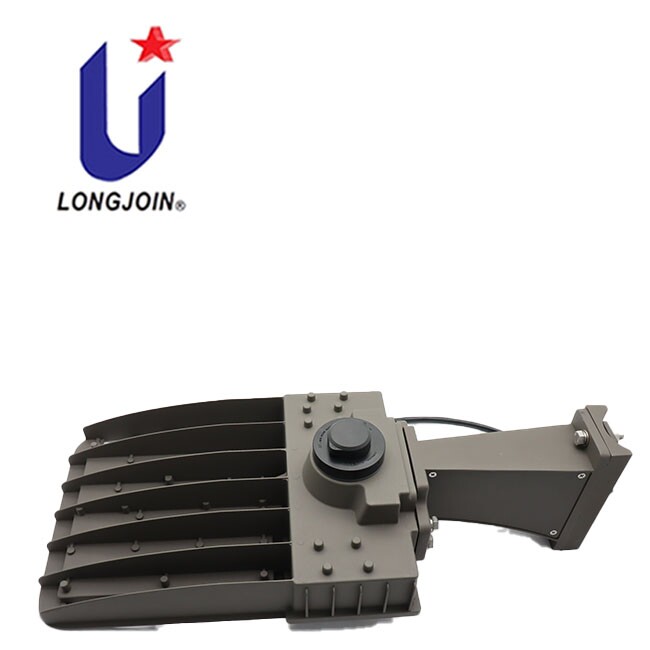

Note:In this project case, the combination of zhaga socket and protect cover/ shorting cap can be equivalent to the pre-installation project of NEMA standard smart street light. Retrofit and upgrade traditional street lights.Compared with the street lamp project of the NEMA socket, the zhaga socket has a more beautiful design and saves costs.

Note: We provide different sizes of zhaga light control covers and bases for you to design your own controller.

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC

Note: This zhaga light control has the same function as the traditional nema street light controller. It controls the switch of the street light through the brightness of the ambient light and reduces the cost.

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC

Note: This zhaga product design is mainly applied to the principle of infrared micro- wave induction. Through infrared induction of moving objects (cars or people in mo- tion), street light switches are controlled, which not only satisfies lighting needs but also saves electricity costs.

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC

Note: This series of light controller products are based on the ZHAGA BOOK18 inter-face standard development of smart Hui type rotary lock light controller, adopts light sensor + microwave mobile combined sensor, can output DALI Dimming signal. The light controller is suitable for roads, lawns, courtyards, parks, parking lots, industrial Lighting scenes such as mines.

Note: In this project case combination, choose the zhaga socket to match the zhaga series finished light control. According to the needs of the actual project, choose the nature of the controller (light control, smart or infrared control) to choose the right product. Compared with light control and intelligent control, infrared control is generally suitable for indoors, such as large factories and underground garages. Or it can be combined with intelligent light control to realize the intelligentization of urban lighting.

Shanghai Long-join Brand JL-710 Zhaga Book 18 4 PIN Connector Switching DC-AC

Note:The zhaga series of light control products are suitable for roads, lawns, court- yards, parks and other scenes. When the zhaga series products with microwave ind- uction are used more widely, in addition to outdoor lighting areas, including indoor factory areas, garages, offices, corridors and other areas. . Compared with nema standard controllers, zhaga will be combined with smart homes in the future with its compact size and microwave induction function.
