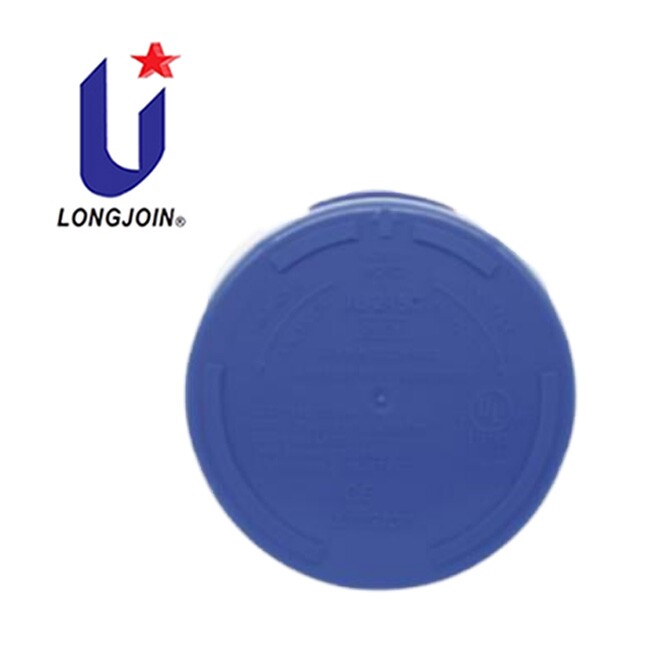

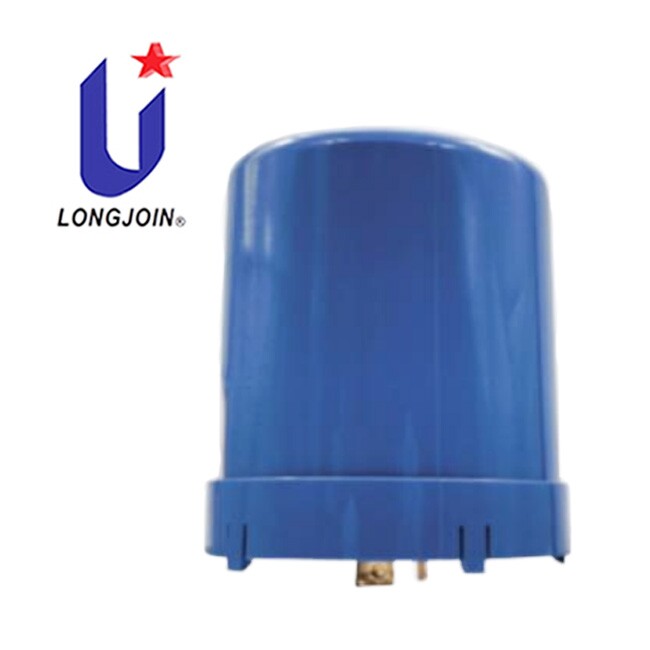

JL-245CN Smart IoT Dimming Photocontrol

Name: JL-245CN Smart IoT Dimming Photocontrol
Brand: Long-Join
SKU: JL-245CN

Category Smart Lighting Controls

JL-245CN Smart IoT Dimming Photocontrol - Image 2

JL-245CN Smart IoT Dimming Photocontrol - Image 3

Product Details:

JL-245CN Smart IoT Dimming Photocontrol

Product Summary

JL-245CN photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on.

This product consists a NB-IoT communication module to allow its remoted with a smart IoT management system.

Features

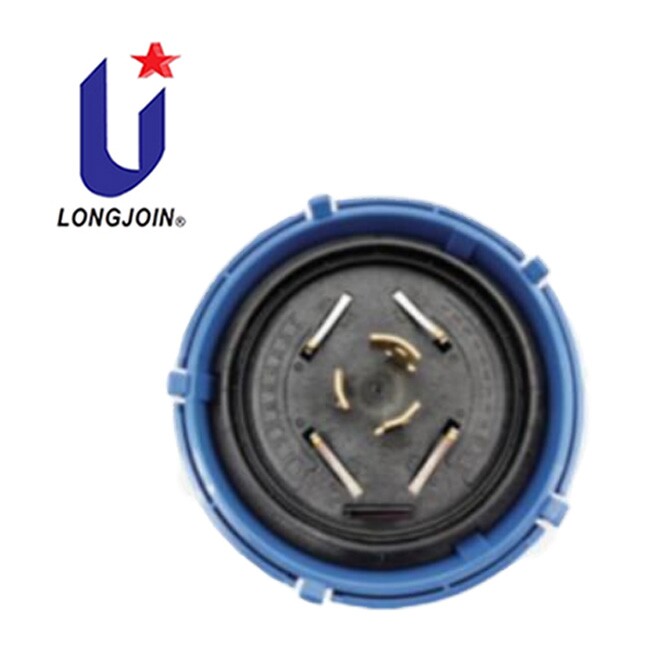

ANSI C136.41 Twist-lock
0~10V Dimming
Surge protection level: 6KV/3KA differential mode
Sandwich cover for Long Life
Multi-Volts Application
Confirm the IP67 configuration and complete assembly documentation

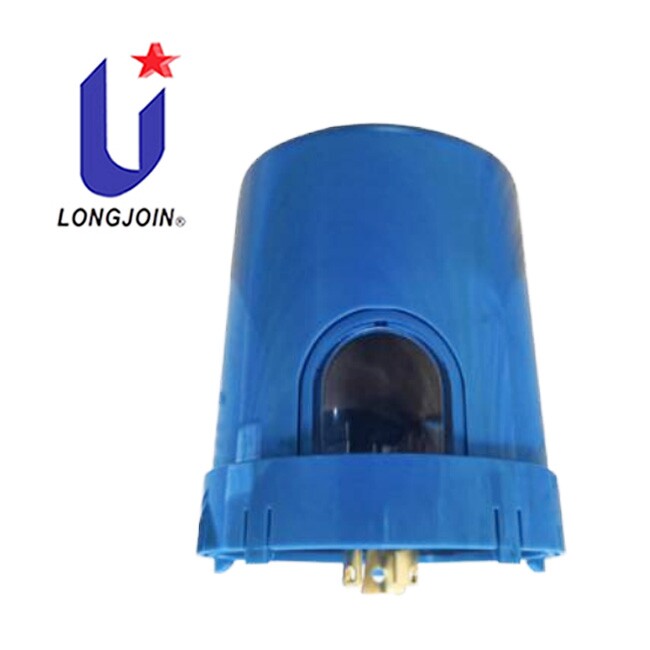

IR-filtered Phototransistor

Specifications

JL-245CN key parameters

JL-245CN — transcribed from datasheet JL-245CN EN 2307V6
Product type	Smart IoT dimming photocontrol (twist-lock controller), ANSI C136.41 interface
Rated voltage	120–277 VAC; applicable range 105–305 VAC
Rated frequency	50/60 Hz
Dimming output	0–10 VDC
Uplink communication	NB-IoT, SIM card slot provided
Spectral acquisition	350–1100 nm, peak wavelength 590 nm
Rated loading	1000 W tungsten; 1000 VA ballast; 8 A at 120 VAC / 5 A at 208–277 VAC electronic ballast
Operating levels	Turn-on below 100 lx, turn-off above 150 lx (factory setting, adjustable per request)
Power consumption	1.2 W static, 2.4 W dynamic
Ambient temperature	−40 °C to +70 °C
Relative humidity	96%
Fail mode	Fail-On
Housing material	PC
Surge protection	6 kV / 3 kA, differential mode
Ingress protection	IP67
Factory setting	Remote control + adaptive mode
EMC standards declared	IEC 61000-4-2/-3/-4/-5/-6/-11, IEC 61000-3-2, GB/T 17743-2017, GB/T 2423.10-2008, UL94 V-0

Values as printed in the JL-245CN EN 2307V6 datasheet. The datasheet carries no certificate number in its certification row; this table is a manufacturer declaration, not a certificate.

Installation

The interface of the product itself has been mistake-proof designed, just tighten the photocontrol

directly to the rotatable/fixed base, as shown in Figure clockwise after insertion.

Follow the model-specific installation instructions. A qualified installer must confirm whether live replacement is permitted for the exact assembly; do not infer permission from the twist-lock interface alone.
Users can input the photocontrol ID information to the smart lighting management system through WEB interface or by scanning QR code with its specific WeChat “UM9900 Smart Light Pole” public account.

Initial Testing

It is normal for the photocontrol to take several seconds to turn off when first installed.
To test “turn on” during daytime, cover its eye with black tape or other opaque material.
Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
Test will take approximately 2 minutes.

JL-245CN Selection FAQs

Which network does JL-245CN use?

The product description identifies an NB-IoT communication module. Confirm the supported cellular bands, SIM or service requirements, coverage and management-platform compatibility for the destination market before ordering.

Is it interchangeable with a Zigbee controller?

Do not assume interchangeability. JL-245CN is described as NB-IoT, while other models may use different protocols. Confirm the exact controller, commissioning method and system integration requirements.

What must match the luminaire?

Confirm the supply voltage, ANSI C136.41 receptacle/contact arrangement, 0-10V LED driver interface, load and inrush rating, seals and specified outdoor configuration using the current JL-245CN documentation.
