Outdoor lighting systems face constant electrical threats. Lightning strikes and voltage surges are the most damaging. These events can instantly destroy controladores de fotocélula and connected lamps.
That is why surge protection is no longer optional. It must be built into the controller itself. A well-protected system ensures stable switching and longer service life.

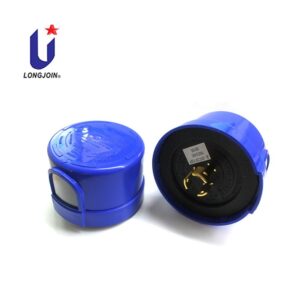

The JL-207C is designed with this challenge in mind. It combines surge protection with smart switching technology. This article explores how both work together in real conditions.
What Are the Key Technical Specifications of the JL-207C Sensor fotocélula de luz?
The JL-207C is built for wide-grid compatibility. Key specifications include:
- It operates at 120–277VAC. This, with an extended range of 105–305VAC, makes it stable across fluctuating power conditions.
- It supports both 50Hz and 60Hz systems. This ensures global usability.
- At its core, it uses an IR-filtered phototransistor. This improves light detection accuracy. It avoids false triggering from artificial light sources.
- The switching thresholds are precise. Typical turn-on and off luxo levels are 16 and 24, respectively.
Load handling is designed for real field demand:
- 1000W tungsten lamps
- 1800VA ballast loads
- 8A @120VAC, 5A @208–277VAC
Protection is flexible. Users can select from diverse Classificações IP based on installation needs. Fail-safe modes are also configurable:
- Fail-On for safety-critical lighting
- Fail-Off for energy-sensitive setups
Each parameter supports stable, predictable outdoor operation.
Recommended Application Scenarios Based on Electrical Load
| Tipo de iluminação | Typical Load Profile | JL-207C Compatibility | Notas |
| LED street lights | Low inrush, stable | Highly suitable | Best with zero-cross |
| Lâmpadas HID | High startup surge | Suitable | MOV protection critical |
| Tungsten lamps | Resistive load | Fully compatible | Stable switching |
| Smart lighting hubs | Mixed load | Suitable | Ensure proper rating |
How Does JL-207C Fotocontrole Implement Multi-Level Surge Protection Technology?
Built-In MOV Protection Architecture
The JL-207C integrates Varistor de óxido metálico (MOV) modules directly into its circuit. These components react instantly to voltage spikes. As a result of a surge, the MOV clamps excess voltage. It diverts harmful energy away from sensitive electronics. This prevents internal damage and maintains circuit stability.
Multi-Level Surge Protection Options
Different installation environments require different protection strengths. JL-207C offers multiple MOV configurations:
| Nível de proteção | Energy Rating (J) | Surge Current (A) | Cenário de aplicação |
| F12 | 110J | 3500A | Low-risk urban areas |
| F15 | 235J | 5000A | Moderate exposure zones |
| F23 | 460J | 10000A | High lightning regions |
| F25 | 546J | 10000A | Industrial setups |
| F40 | 640J | 40000A | Extreme surge environments |
Surge Suppression Works in Practice
MOVs operate in a non-linear manner. Under normal voltage, they remain inactive. During a surge, resistance drops sharply. Excess current is absorbed and dissipated as heat. This action happens in microseconds.
Impact on System Reliability
This layered protection extends the controller’s lifespan. It also protects downstream lamps and drivers. Fewer failures mean lower maintenance costs. System uptime improves significantly.
What Is Zero-Cross Switching and Why Is It Important in JL-207C?
This switching means the sensor de luz turns ON or OFF exactly when the AC voltage crosses zero. This is the point where the voltage is momentarily neutral. The JL-207C uses this timing to control load switching precisely. It avoids random switching at peak voltage levels.
It reduces electrical stress
Switching at peak voltage creates sudden current spikes. These spikes stress internal components. Zero-cross switching avoids this completely. It ensures smooth current flow from the start. Electrical shock to circuits is minimized.
It controls inrush current better
Inrush current is highest at random switching points. Zero-crossing reduces this surge significantly. The load ramps up gradually instead of instantly. This protects both the relay and connected devices.
Key Performance Benefits
- Extends LED driver lifespan
- Reduces relay contact wear
- Minimizes electromagnetic interference
- Improves switching consistency
- Impact on System Reliability
The result is stable operation over time. Fewer failures occur under frequent switching cycles. Maintenance needs drop. System efficiency improves in real outdoor conditions.
How Does FCC Certification Improve the Reliability of JL-207C?
EMC Matters in Photosensors
Electrically noisy environments can hinder the outdoor lighting’s performance. Nearby equipment generates interference. This affects signal stability and switching accuracy.
The JL-207C interruptor de sensor de luz is designed with strong electromagnetic compatibility. It maintains stable performance even under interference.
Role Of FCC Certification
FCC certification verifies that the device meets strict emission limits. It ensures the controller does not generate harmful electromagnetic noise. It also confirms resistance to external interference. This dual control improves operational stability in dense electrical networks.
It ensures global compliance
FCC compliance aligns with international EMC standards. It simplifies entry into regulated markets. It also supports integration with other certified devices. This reduces compatibility risks during large deployments.
Key Reliability Gains
- Stable switching under electrical noise
- Reduced signal distortion
- Consistent sensor fotoelétrico response
- Lower risk of malfunction
- Impact on Market Trust
Certified products signal quality and compliance. Buyers trust performance consistency. This strengthens acceptance in municipal and commercial projects.
How Does JL-207C Combine Surge Protection with Zero-Cross Technology for Optimal Performance?
MOV Protection and Zero-Cross Switching Work Together
JL-207C receptáculo de fotocontrole integrates two protection layers. MOV modules handle external surge events. Zero-cross switching controls internal switching behavior. This creates a balanced protection system. One blocks high-energy spikes. The other prevents switching-induced stress.
Electrical Stress Reduced
Surges from lightning are absorbed by MOVs. Switching spikes are minimized at zero voltage points. This dual action reduces cumulative stress on circuits. Components face fewer extreme conditions over time.
Real-World Benefits
- Lower failure rates in surge-prone areas
- Stable LED driver performance
- Reduced relay wear during frequent cycles
- Improved system uptime
This coordination ensures smoother operation. It protects both the controller and connected loads in real outdoor environments.
What Makes JL-207C a Reliable Choice for Surge-Protected Photocell Applications?
JL-207C sensor de fotointerruptor combines multiple protective functions in one unit. It is engineered for harsh field conditions. Each feature supports long-term stability.
The design fits demanding environments. It performs well in high humidity and voltage fluctuation.
Who Benefits the Most?
- Municipal lighting authorities
- Electrical contractors
- OEM lighting manufacturers
It delivers consistent performance. It reduces maintenance cycles. It supports reliable large-scale deployments.
| Recurso | Benefício prático |
| Multi-level MOV protection | Handles varying surge intensities |
| Zero-cross switching | Reduces inrush and switching stress |
| Wide voltage range | Adapts to unstable grids |
| IP-rated housing | Protects against dust and moisture |
| Fail-safe modes | Ensures predictable operation |
Palavras finais
Surge protection and zero-cross switching work together to reduce electrical stress and improve system stability. This combination ensures a longer lifespan and reliable outdoor lighting performance. For dependable solutions, Chi-Swear offers proven Long-Join photocontrollers built for real-world conditions. Their products deliver consistent protection, making them a practical choice for professional lighting projects.
