Photocontrol NEMA Plugs: An Analysis of Components in 3-Pin, 5-Pin, and 7-Pin Variants

Outline

  • Introduction
  • Types of NEMA Plugs
    • 3-Pin NEMA Plugs
    • 5-Pin NEMA Plugs
    • 7-Pin NEMA Plugs
  • Plug Components
  • Pin Count and Functionality
    • 3-Pin Socket: The Basics
    • 5-Pin Socket: Enhanced Control
    • 7-Pin Socket: Advanced Features
  • Application Scenarios
  • Safety Features
    • Locking and Non-locking mechanism
    • GFCI Protection
    • Grounding
    • Durable Construction
    • Standardized Configurations
  • Future Trends
  • Final Words

Be it safety, security, or beauty, outdoor lights play an important role. However, with an uptick in sustainability trends, energy efficiency and light pollution have become serious concerns.

Photocontrol NEMA plugs have emerged as one possible way out. These plugs come in three variables, 3-pin, 5-pin, and 7-pin, and they automate illumination by responding to ambient light levels. Each one of these configurations differs based on varying levels of control and functionality.

This article examines the components of these different NEMA plug variants, their functionalities, application scenarios, safety features, and potential future developments.

Types of NEMA Plugs

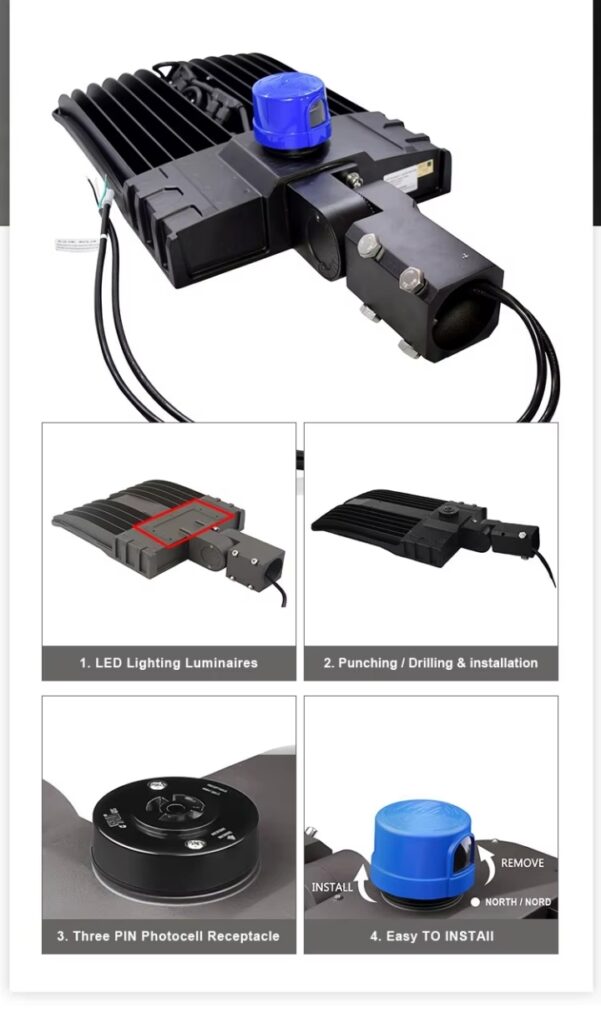

Many streetlights and parking lot lights feature a circular blue or black knob on top. This is typically a lighting control device known as a photocontrol switch.

These gadgets, along with more advanced DALI/Bluetooth controls, can utilize NEMA sockets. These sockets adhere to the 3, 5, and 7-pin NEMA standards, widely adopted by manufacturers in the outdoor lighting industry.

Below is their comprehensive discussion.

3-Pin NEMA Plugs

These plugs feature three connections: line (hot), neutral, and load. They facilitate basic on/off control, activating lights at dusk and turning them off at dawn, suitable for simple lighting systems.

5-Pin NEMA Plugs

In addition to the standard three connections, 5-pin plugs include two extra contacts. These additional pins are typically used for 0-10V dimming control, allowing for adjustable brightness levels in response to varying conditions or requirements.

7-Pin NEMA Plugs

Building upon the 5-pin design, 7-pin plugs incorporate four extra contacts beyond the basic three. This configuration supports advanced functionalities, such as integration with motion sensors, data transmission, and compatibility with multiple dimming protocols like DALI.

The expanded capabilities make 7-pin plugs suitable for sophisticated smart lighting systems requiring comprehensive control and monitoring.

Understanding these differences is crucial for selecting the appropriate NEMA plug to meet specific outdoor lighting control needs.

Plug Components

Photocontrol NEMA plugs are essential for connecting lighting controls to fixtures, particularly in outdoor settings. Their main components include:

  • Housing: Think of the housing as a sturdy home for photo control. It’s built from strong, weather-resistant materials like polycarbonate. This shields the delicate inner workings from harsh sunlight, rain, and extreme temperatures.
  • Pins/Contacts: Depending on the model, that could be 3, 5, or even 7 pins; they facilitate the connection between the photocontrol and the lighting fixture.
  • Gasket/Seal: To keep things dry and dust-free, there’s a special silicone gasket. It prohibits the entry of moisture and dirt. This is super important because you don’t want water messing with the electricity, especially when the photocontrol is outdoors.
  • Mounting Bracket: This component secures the plug to the lighting fixture, ensuring stability and proper alignment of the pins with the corresponding receptacle.

Each component plays a vital role in ensuring the reliable operation, durability, and safety of the photocontrol system.

Pin Count and Functionality

The ubiquitous 3-pin NEMA socket serves well for most photocell applications. However, 5-pin and 7-pin sockets are increasingly prevalent in advanced lighting fixtures. This begs the question: why the shift, and what advantages do they offer?

Let’s explore.

3-Pin Socket: The Basics

The 3-pin socket features three slots for connecting a photocell. It establishes a simple connection: input power to the photocell and the photocell’s output to the normally off fixture. When darkness falls, the photocell enables power flow, illuminating the fixture.

5-Pin Socket: Enhanced Control

The 5-pin socket expands upon the 3-pin design by incorporating two additional surface contacts. These contacts are typically linked to wires for dimming leads in LED drivers, offering greater control over lighting levels. They can also accommodate other sensors within the fixture housing.

7-Pin Socket: Advanced Features

The 7-pin socket, while maintaining the three main slots, introduces four extra surface contacts and corresponding wires. This configuration supports advanced dimming capabilities, including integration with other sensors within the fixture housing or the implementation of a DALI dimming signal for sophisticated lighting control.

Application Scenarios

NEMA plugs are integral to various outdoor lighting applications, providing standardized connections for efficient control and maintenance:

  • NEMA sockets facilitate the integration of photocontrol and smart controllers in streetlights, enabling automated on/off functions and adaptive lighting based on real-time conditions.
  • In parking lots and pedestrian pathways, NEMA plugs support lighting systems that adjust brightness or activate based on occupancy, enhancing safety and energy efficiency.
  • Outdoor industrial environments utilize NEMA connectors to power equipment and tools, ensuring reliable operation in demanding conditions.
  • NEMA sockets are employed in floodlights for sports arenas and large outdoor spaces, allowing for easy installation of control devices that manage illumination levels.

Safety Features

Locking and Non-locking mechanism

NEMA connectors come in two main categories: locking and Non-locking. The first one prevents accidental disconnection, which is essential for industrial and commercial applications where stability is crucial.

On the other hand, non-locking is the most common type found in homes, with simpler designs and easier insertion/removal.

GFCI Protection

In areas with potential water exposure, usually the kitchens and bathrooms, Ground Fault Circuit Interrupters are integrated into NEMA 5-15 outlets. GFCIs quickly interrupt power supply if they detect a ground fault, significantly reducing the risk of electric shock.

Grounding

Many NEMA plugs include a grounding pin to prevent electric shock, providing an essential safety mechanism in outdoor environments.

Durable Construction

NEMA connectors are designed to withstand harsh conditions with robust materials that resist environmental factors, ensuring longevity and safety.

Standardized Configurations

NEMA plugs are UL-certified. This ensures that plugs and receptacles are designed to prevent mismatched connections, reducing the risk of electrical failures and enhancing overall safety.

Future Trends

The evolution of photocontrol NEMA plugs is steering towards enhanced intelligence and integration within smart city infrastructures. Notable advancements include solid-state photocontrols with zero-cross switching. These devices offer precise control and improved energy efficiency by minimizing electrical noise and extending the lifespan of lighting systems.

Further, combining NEMA’s robust electrical foundation with Zhaga‘s modular approach facilitates greater flexibility and innovation in lighting systems, promoting interoperability and ease of upgrades.

Lastly, modern NEMA sockets enable functionalities such as dimming, remote monitoring, and adaptive lighting, contributing to improved energy efficiency and responsive outdoor illumination.

Final Words

Photocontrol NEMA plugs are vital in optimizing outdoor lighting, offering functionality tailored to diverse applications through varying pin configurations. As innovations continue to shape their future, they remain a cornerstone of smart lighting systems. For high-quality and reliable NEMA products, Chi-Swear stands out as a trusted supplier, delivering advanced solutions to meet modern lighting needs.
